Good Price Cummins Super Silent Diesel Generator 30kw (GDC38*S)1. Powered by famous diesel engine - Cummins, Deutz, Doosan,Perkins, Weichai, MTU, Lister Petter
2. Brushless alternator -- Stamford, Leroy Somer, Marathon, JET.
3. Solid steel outer skin - 2MM to 4MM steel
4. High density sound-absorbing material -- sound insulation, fireproofing
5. New design of turn-back type for air inflow & air outlet which can reduce the noise and advance engine efficiency.
6. Beautiful & practicably design, Bottom hole for fork, Water outlet & oil outlet
7. Double open door on both sides of the gensets. Spacious doors can check for every part of the engine and alternator.
Technical data |
Genset Model | GDC30*S |
Prime Power | 30KW/37.5KVA |
Rated Voltage | 400/230V |
Frequency | 50/60Hz |
Power Factor | 0.8(lagging) |
The regulating rate of steady voltage | ≤±0.5% |
The regulating rate of instantaneous voltage | ≤-15%/ +20% |
The time of steady voltage | ≤1.5sec |
The waving rate of voltage | ≤1.0% |
The regulating rate of steady frequency | ≤3% |
The regulating rate of instantaneous frequency | ≤±10% |
The time of steady frequency | 3sec |
Dimension (L×W×H) (mm) | 1800*750*1200 |
Genset weight (kg) | 800 |
Diesel Engine |
Brand | Cummins |
Model | 4BT3.9-G2 |
Number of Cylinders | 4 |
Rotating Speed | 1500/18000RPM |
Cycle | Four stroke |
Type | waste gas turbine boost,direct spurting type |
Bore×Stroke(mm) | 102*120 |
Displacement(L) | 3.9 |
Lubricating Capacity(L) | 11 |
Speed Governor | Electrical |
Cooling System | Water-cooled |
Speed Stability (%) | ≤5% |
Fuel Consumption at 100% Load | 210g/kw.h |
Starting Method | DC24V Electrical starting |
Alternator |
Brand | GODLIKE |
Model | JDG184H |
Number of Phase | 3 |
Connecting Type | Three Phase and Four Lines |
Number of Bearing | 1 |
Grading Protection | IP23 |
Altitude | ≤1000m |
Exciter Type | Brushless (AVR automatic voltage regulating) |
Insulation Class | H degree |
The components of the genset |
(1) Cummins Diesel Engine; (2)Qianghui Alternator; (3) Control Panel |
Control Panel |
The control panel is Quadruplication protection control panel, with the display of frequency table/water temperature/schedule/battery voltmeter. The genset with low oil pressure, high water temperature, over speed emergency, stop and other pre-protection. |
CUMMINS configuration and technical data
50HZ, 3 Phase, 400/230V |
No. | GENSET Model | OUTPUT POWER 1500RPM 50HZ | Engine Model | Alternator Model | Cyl. | Disp. | Bore *Stroke | Fuel Cons. |
Prime KVA | Prime KW | Standby KVA | standby KW | CUMMINS | GODLIKE | STAMFORD | (nos) | (L) | (mm) | (g/kw.h) |
1 | GDC20*S | 20 | 16 | 23 | 18 | 4B3.9-G1/G2 | JDG164D | PI 144D | 4 | 3.9 | 102*120 | 215 |
2 | GDC25*S | 25 | 20 | 28 | 22 | 4B3.9-G1/G2 | JDG184F | PI 144E | 4 | 3.9 | 102*120 | 215 |
3 | GDC30*S | 30 | 24 | 33 | 26 | 4BT3.9-G1/G2 | JDG184G | PI 144G | 4 | 3.9 | 102*120 | 215 |
4 | GDC40*S | 40 | 32 | 44 | 35 | 4BT3.9-G1/G2 | JDG184H | PI 144J | 4 | 3.9 | 102*120 | 215 |
5 | GDC43*S | 43 | 34 | 47 | 37 | 4BTA3.9-G2 | JDG224C | UCI224C | 4 | 3.9 | 102*120 | 215 |
6 | GDC50*S | 50 | 40 | 55 | 44 | 4BTA3.9-G2 | JDG224D | UCI224D | 4 | 3.9 | 102*120 | 215 |
7 | GDC57*S | 57 | 45 | 63 | 50 | 4BTA3.9-G2 | JDG224ES | UCI224E | 4 | 3.9 | 102*120 | 215 |
8 | GDC60*S | 60 | 48 | 66 | 53 | 4BTA3.9-G2 | JDG224E | UCI224E | 4 | 3.9 | 102*120 | 215 |
9 | GDC63*S | 63 | 50 | 69 | 55 | 6BT5.9-G2 | JDG224E | UCI224E | 6 | 5.9 | 102*120 | 215 |
10 | GDC73*S | 73 | 58 | 80 | 64 | 6BT5.9-G2 | JDG224F | UCI224F | 6 | 5.9 | 102*120 | 215 |
11 | GDC88*S | 88 | 70 | 96 | 77 | 6BT5.9-G2 | JDG224G | UCI224G | 6 | 5.9 | 102*120 | 215 |
12 | GDC93*S | 93 | 75 | 103 | 82 | 6BT5.9-G2 | JDG224H | UCI274C | 6 | 5.9 | 102*120 | 215 |
13 | GDC100*S | 100 | 80 | 110 | 88 | 6BT5.9-G1/G2 | JDG274C | UCI274C | 6 | 5.9 | 102*120 | 215 |
14 | GDC120*S | 120 | 96 | 132 | 106 | 6BTA5.9-G2 | JDG274DS | UCI274D | 6 | 5.9 | 102*120 | 215 |
15 | GDC135*S | 135 | 108 | 149 | 119 | 6BTAA5.9-G2 | JDG274ES | UCI274E | 6 | 5.9 | 102*120 | 215 |
16 | GDC138*S | 138 | 110 | 151 | 121 | 6CTA8.3-G2 | JDG274ES | UCI274E | 6 | 8.3 | 114*135 | 210 |
17 | GDC150*S | 150 | 120 | 165 | 132 | 6CTA8.3-G2 | JDG274E | UCI274E | 6 | 8.3 | 114*135 | 210 |
18 | GDC160*S | 160 | 128 | 176 | 141 | 6CTA8.3-G2 | JDG274F | UCI274F | 6 | 8.3 | 114*135 | 210 |
19 | GDC180*S | 180 | 144 | 198 | 158 | 6CTA8.3-G2 | JDG274G | UCI274G | 6 | 8.3 | 114*135 | 210 |
20 | GDC200*S | 200 | 160 | 220 | 176 | 6CTAA8.3-G2 | JDG274H | UCI274H | 6 | 8.3 | 114*135 | 210 |
21 | GDC225*S | 225 | 180 | 248 | 198 | 6LTAA8.9-G2 | JDG274J | UCD274J | 6 | 8.9 | 114*135 | 197 |
22 | GDC250*S | 250 | 200 | 275 | 220 | 6LTAA8.9-G2 | JDG274K | UCD274K | 6 | 8.9 | 114*135 | 197 |
23 | GDC250*S | 250 | 200 | 275 | 220 | NTA855-GA | JDG274K | UCD274K | 6 | 10.8 | 125*147 | 200 |
24 | GDC250*S | 250 | 200 | 275 | 220 | MTA11-G2A | JDG274K | UCD274K | 6 | 10.8 | 125*147 | 200 |
25 | GDC275*S | 275 | 220 | 303 | 242 | NTA855-G1A | JDG314DS | HCI444D | 6 | 10.8 | 125*147 | 188 |
26 | GDC300*S | 300 | 240 | 330 | 264 | NTA855-G1B | JDG314D | HCI444D | 6 | 10.8 | 125*147 | 188 |
27 | GDC313*S | 313 | 250 | 344 | 275 | NTA855-G1B | JDG314ESS | HCI444ES | 6 | 10.8 | 125*147 | 188 |
28 | GDC325*S | 325 | 260 | 358 | 286 | NTA855-G1B | JDG314ES | HCI444ES | 6 | 14.0 | 140*152 | 200.2 |
29 | GDC350*S | 350 | 280 | 385 | 308 | NTA855-G2A | JDG314E | HCI444E | 6 | 14.0 | 140*152 | 200.2 |
30 | GDC350*S | 350 | 280 | 385 | 308 | NTA855-G4 | JDG314E | HCI444E | 6 | 14.0 | 140*152 | 200.2 |
31 | GDC375*S | 375 | 300 | 413 | 330 | NTAA855-G7 | JDG314FS | HCI444FS | 6 | 14.0 | 140*152 | 205.4 |
32 | GDC375*S | 375 | 300 | 413 | 330 | KTA19-G2 | JDG314FS | HCI444FS | 6 | 14.0 | 140*152 | 205.4 |
33 | GDC400*S | 400 | 320 | 440 | 352 | NTAA855-G7A | JDG314F | HCI444F | 6 | 14.0 | 159*159 | 205.4 |
34 | GDC420*S | 420 | 336 | 462 | 370 | NTAA855-G7A | JDG354C | HCI544C | 6 | 18.9 | 159*159 | 200.7 |
35 | GDC450*S | 450 | 360 | 495 | 396 | KTA19-G3 | JDG354C | HCI544C | 6 | 18.9 | 159*159 | 200.7 |
36 | GDC500*S | 500 | 400 | 550 | 440 | KTA19-G3A | JDG354D | HCI544D | 6 | 18.9 | 159*159 | 200.5 |
37 | GDC500*S | 500 | 400 | 550 | 440 | KTA19-G4 | JDG354D | HCI544D | 6 | 18.9 | 159*159 | 200.5 |
38 | GDC550*S | 550 | 440 | 605 | 484 | KTAA19-G5 | JDG354ES | HCI544D | 6 | 18.9 | 159*159 | 200.5 |
39 | GDC600*S | 600 | 480 | 660 | 528 | KTAA19-G6 | JDG354E | HCI544E | 6 | 18.9 | 159*159 | 208 |
40 | GDC600*S | 600 | 480 | 660 | 528 | KTAA19-G8 | JDG354E | HCI544E | 6 | 18.9 | 159*159 | 208 |
41 | GDC625*S | 625 | 500 | 688 | 550 | KTAA19-G6A | JDG354FS | HCI544F-S | 6 | 18.9 | 159*159 | 202 |
42 | GDC625*S | 625 | 500 | 688 | 550 | KT38-G | JDG354FS | HCI544F-S | 6 | 18.9 | 159*159 | 202 |
43 | GDC700*S | 700 | 560 | 770 | 616 | KTA38-GA | JDG354G | HCI544F-S | 12 | 37.8 | 159*159 | 213 |
44 | GDC750*S | 750 | 600 | 825 | 660 | KTA38-G2 | JDG404B | LVI634B | 12 | 37.8 | 159*159 | 209 |
45 | GDC800*S | 800 | 640 | 880 | 704 | KTA38-G2B | JDG404C | LVI634C | 12 | 37.8 | 159*159 | 196 |
46 | GDC900*S | 900 | 720 | 990 | 792 | KTA38-G2A | JDG404D | LVI634D | 12 | 37.8 | 159*159 | 196 |
47 | GDC1000*S | 1000 | 800 | 1100 | 880 | KTA38-G4 | JDG404E | HCI 634G | 12 | 37.8 | 159*159 | 198 |
48 | GDC1125*S | 1125 | 900 | 1238 | 990 | KTA38-G9 | JDG404F | HCI 634G | 12 | 37.8 | 159*159 | 198 |
49 | GDC1250*S | 1250 | 1000 | 1375 | 1100 | KTA50-G3 | JDG404G | HCI 634J | 12 | 37.8 | 159*159 | 213 |
50 | GDC1375*S | 1375 | 1100 | 1513 | 1210 | KTA50-G8 | HCI 634J | HCI 634K | 12 | 37.8 | 159*159 | 213 |
51 | GDC1500*S | 1500 | 1200 | 1650 | 1320 | KTA50-GS8 | LVI 634G | LVI 634G | 12 | 37.8 | 159*159 | 213 |

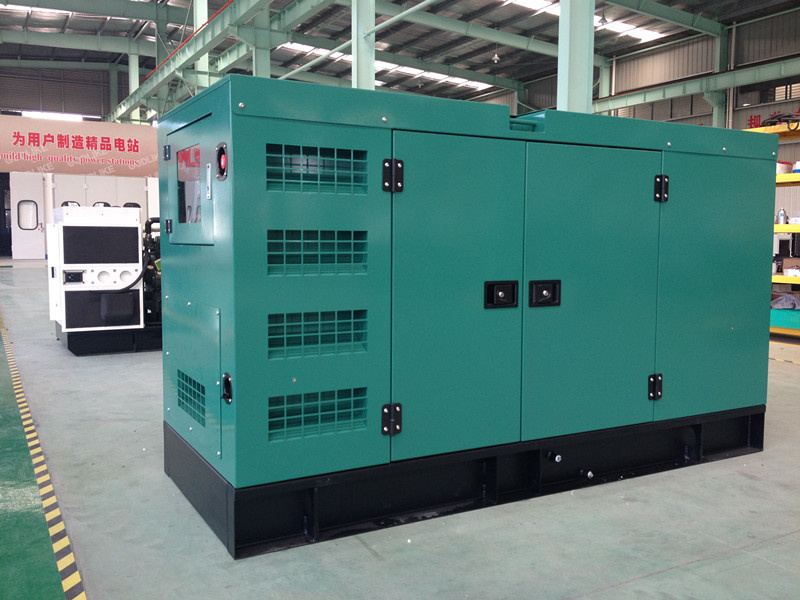

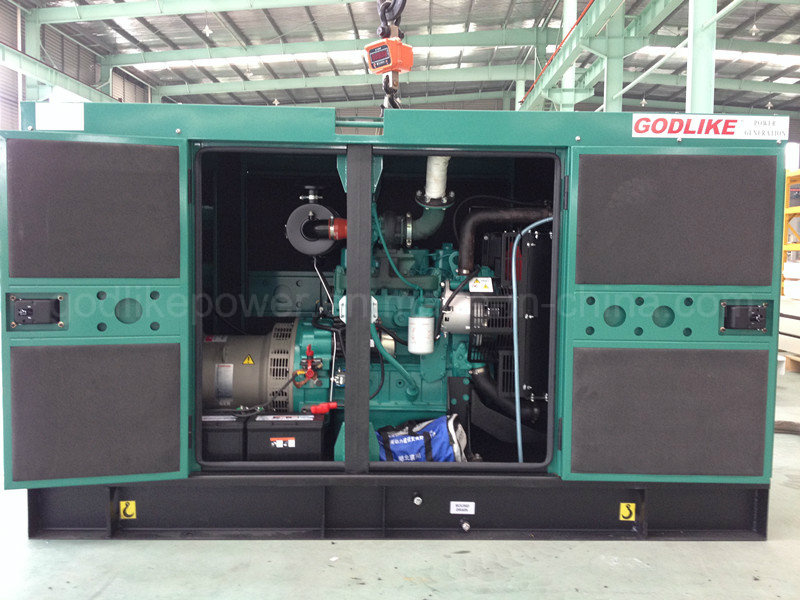

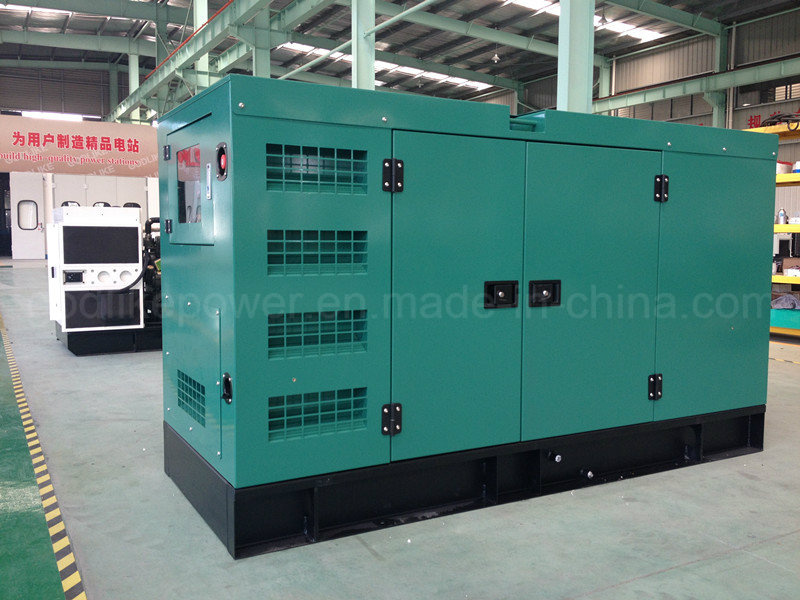

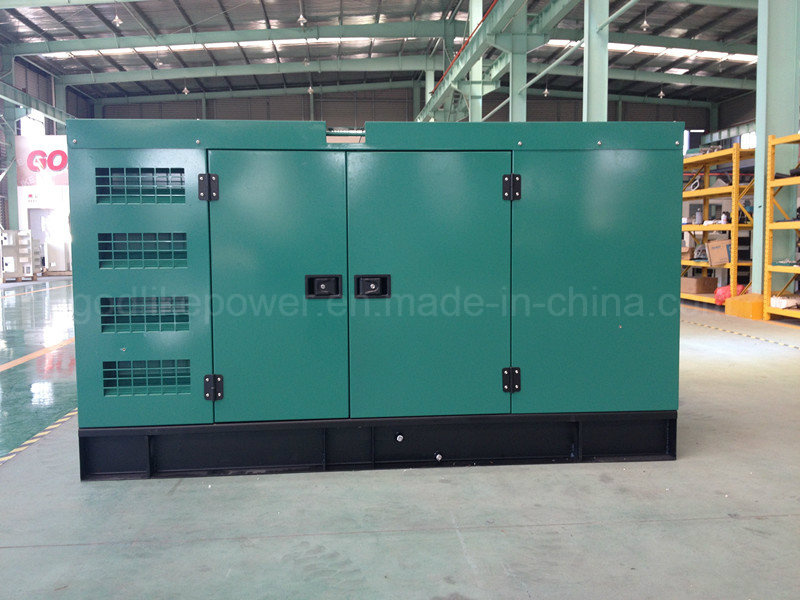

Generator photos:
Contact: Ms Vicki Yuan
Mob:+86 159 5258 5329
Tel:+86 514 80915716
Established in Year 2006, GODLIKE POWER is headquartered in Yangzhou city, Jiangsu Province, only 2.5 hrs far from Shanghai or Nanjing. It has grown into a leading manufacture of diesel generators&alternators in China and ranked amongst the top manufacturers worldwide.
Motivated by our slogan to provide "Excellent Power Solution", Godlike Power focuses on design, manufacture, sales, installation and service of diesel generators&alternators. Our diesel generators range from 8 kVA to 2500 kVA, equipped with Perkins, Cummins, Mitsubishi, Doosan, Deutz, MTU etc and equipped with our alternator, Stamford, Leroy-Somer etc alternators as required. Our Stamford type brushless alternators range from 8kVA to 1250kVA, 50Hz/60Hz option, rpm 1500-1800, voltage 110V-690V, class H, IP23, all easily coupled with Industrial & Marine, Diesel & Gasoline engines.
GODLIKE people treat Quality and Service as enterprise's life, and has competitive advantages.
GODLIKE generators are being exported to Europe, America, Southeast Asia, the Middle East, South Africa, and many other countries and regions, obtaining great corporate reputation and long-terms partner cooperations.
Warmly welcome to GODLIKE.
