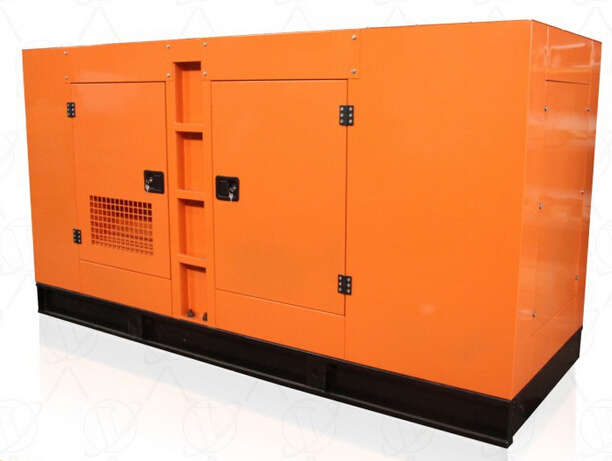

Good Price 6CTA8.3-G2 150kw Cummins Super Silent Diesel Generators (GDC150*S)
Assembled by Cummins diesel engine and GODLIKE alternator or other option
Three filters as standard, fuel and water separator as optional.
Radiator and fan with safety guard.
Single bearing alternator IP 23, Insulation Class H.
Heavy duty steel as base frame and 8hrs operation base fuel tank.
Automatic control panel and 3 poles circuit breaker, internal cable.
12V or 24V battery, battery wires.
Battery charger and float battery charger as standard supply scope.
Optional soundproof canopy, ATS, synchronization panel, movable trailers.
150KW cummins diesel generator set :
Technical data of genset |
Genset Model | GDC150*S |
Prime Power | 150KW/187.5KVA |
Standby power: | 165KW/206.25KVA |
Voltage: | 400/230V |
Frequency | 50Hz |
The factor of rated power: | COS=0.8(lagging) |
The regulating rate of steady voltage: | ≤1% |
The time of steady voltage: | ≤1.5sec |
The waving rate of voltage: | ≤1.0% |
The regulating rate of steady frequency: | ≤3% |
The regulating rate of instantaneous frequency: | ≤±10% |
The time of steady frequency: | 3sec |
The waving rate of frequency: | ≤1% |
Dimension of open type(L×W×H) (mm): | 2500×1000×1500 |
Dimension of silent type(L×W×H) (mm): | 3350×1400×1950 |
Gross weight of open type(kg) | 2400 |
Gross weight of silent type(kg) | 2800 |
Diesel Engine |
Brand | Cummins |
Model | 6CTA8.3-G2 |
Rated Power: | 163KW |
Standby power: | 180KW |
Number of Cylinders | 6in line |
Rotating Speed | 1500RPM |
Cycle | Four stroke |
Bore×Stroke(mm) | 114×135 |
Compression Ratio: | 17.3:1 |
Displacement(L) | 8.3 |
Speed Governor | Electrical |
Cooling System | Water-cooled |
Fuel Consumption at 100% Load | 212g/kwh |
Starting Method | Electrical starting |
Alternator |
Brand | Copy Stamford |
Model | JDG274 |
Rated power | 150KW |
Type: | Brushless ,Self-excite, AVR automatic voltage regulating |
Number of Phase | 3 |
Connecting Type | 3 Phase and 4 Wires |
The components of the genset |
(1) Diesel Engine; (2) Alternator; (3) Control Panel; |
CUMMINS configuration and technical data
50HZ, 3 Phase, 400/230V |
No. | GENSET Model | OUTPUT POWER 1500RPM 50HZ | Engine Model | Alternator Model | Cyl. | Disp. | Bore *Stroke | Fuel Cons. |
Prime KVA | Prime KW | Standby KVA | standby KW | CUMMINS | GODLIKE | STAMFORD | (nos) | (L) | (mm) | (g/kw.h) |
1 | GDC20*S | 20 | 16 | 23 | 18 | 4B3.9-G1/G2 | JDG164D | PI 144D | 4 | 3.9 | 102*120 | 215 |
2 | GDC25*S | 25 | 20 | 28 | 22 | 4B3.9-G1/G2 | JDG184F | PI 144E | 4 | 3.9 | 102*120 | 215 |
3 | GDC30*S | 30 | 24 | 33 | 26 | 4BT3.9-G1/G2 | JDG184G | PI 144G | 4 | 3.9 | 102*120 | 215 |
4 | GDC40*S | 40 | 32 | 44 | 35 | 4BT3.9-G1/G2 | JDG184H | PI 144J | 4 | 3.9 | 102*120 | 215 |
5 | GDC43*S | 43 | 34 | 47 | 37 | 4BTA3.9-G2 | JDG224C | UCI224C | 4 | 3.9 | 102*120 | 215 |
6 | GDC50*S | 50 | 40 | 55 | 44 | 4BTA3.9-G2 | JDG224D | UCI224D | 4 | 3.9 | 102*120 | 215 |
7 | GDC57*S | 57 | 45 | 63 | 50 | 4BTA3.9-G2 | JDG224ES | UCI224E | 4 | 3.9 | 102*120 | 215 |
8 | GDC60*S | 60 | 48 | 66 | 53 | 4BTA3.9-G2 | JDG224E | UCI224E | 4 | 3.9 | 102*120 | 215 |
9 | GDC63*S | 63 | 50 | 69 | 55 | 6BT5.9-G2 | JDG224E | UCI224E | 6 | 5.9 | 102*120 | 215 |
10 | GDC73*S | 73 | 58 | 80 | 64 | 6BT5.9-G2 | JDG224F | UCI224F | 6 | 5.9 | 102*120 | 215 |
11 | GDC88*S | 88 | 70 | 96 | 77 | 6BT5.9-G2 | JDG224G | UCI224G | 6 | 5.9 | 102*120 | 215 |
12 | GDC93*S | 93 | 75 | 103 | 82 | 6BT5.9-G2 | JDG224H | UCI274C | 6 | 5.9 | 102*120 | 215 |
13 | GDC100*S | 100 | 80 | 110 | 88 | 6BT5.9-G1/G2 | JDG274C | UCI274C | 6 | 5.9 | 102*120 | 215 |
14 | GDC120*S | 120 | 96 | 132 | 106 | 6BTA5.9-G2 | JDG274DS | UCI274D | 6 | 5.9 | 102*120 | 215 |
15 | GDC135*S | 135 | 108 | 149 | 119 | 6BTAA5.9-G2 | JDG274ES | UCI274E | 6 | 5.9 | 102*120 | 215 |
16 | GDC138*S | 138 | 110 | 151 | 121 | 6CTA8.3-G2 | JDG274ES | UCI274E | 6 | 8.3 | 114*135 | 210 |
17 | GDC150*S | 150 | 120 | 165 | 132 | 6CTA8.3-G2 | JDG274E | UCI274E | 6 | 8.3 | 114*135 | 210 |
18 | GDC160*S | 160 | 128 | 176 | 141 | 6CTA8.3-G2 | JDG274F | UCI274F | 6 | 8.3 | 114*135 | 210 |
19 | GDC180*S | 180 | 144 | 198 | 158 | 6CTA8.3-G2 | JDG274G | UCI274G | 6 | 8.3 | 114*135 | 210 |
20 | GDC200*S | 200 | 160 | 220 | 176 | 6CTAA8.3-G2 | JDG274H | UCI274H | 6 | 8.3 | 114*135 | 210 |
21 | GDC225*S | 225 | 180 | 248 | 198 | 6LTAA8.9-G2 | JDG274J | UCD274J | 6 | 8.9 | 114*135 | 197 |
22 | GDC250*S | 250 | 200 | 275 | 220 | 6LTAA8.9-G2 | JDG274K | UCD274K | 6 | 8.9 | 114*135 | 197 |
23 | GDC250*S | 250 | 200 | 275 | 220 | NTA855-GA | JDG274K | UCD274K | 6 | 10.8 | 125*147 | 200 |
24 | GDC250*S | 250 | 200 | 275 | 220 | MTA11-G2A | JDG274K | UCD274K | 6 | 10.8 | 125*147 | 200 |
25 | GDC275*S | 275 | 220 | 303 | 242 | NTA855-G1A | JDG314DS | HCI444D | 6 | 10.8 | 125*147 | 188 |
26 | GDC300*S | 300 | 240 | 330 | 264 | NTA855-G1B | JDG314D | HCI444D | 6 | 10.8 | 125*147 | 188 |
27 | GDC313*S | 313 | 250 | 344 | 275 | NTA855-G1B | JDG314ESS | HCI444ES | 6 | 10.8 | 125*147 | 188 |
28 | GDC325*S | 325 | 260 | 358 | 286 | NTA855-G1B | JDG314ES | HCI444ES | 6 | 14.0 | 140*152 | 200.2 |
29 | GDC350*S | 350 | 280 | 385 | 308 | NTA855-G2A | JDG314E | HCI444E | 6 | 14.0 | 140*152 | 200.2 |
30 | GDC350*S | 350 | 280 | 385 | 308 | NTA855-G4 | JDG314E | HCI444E | 6 | 14.0 | 140*152 | 200.2 |
31 | GDC375*S | 375 | 300 | 413 | 330 | NTAA855-G7 | JDG314FS | HCI444FS | 6 | 14.0 | 140*152 | 205.4 |
32 | GDC375*S | 375 | 300 | 413 | 330 | KTA19-G2 | JDG314FS | HCI444FS | 6 | 14.0 | 140*152 | 205.4 |
33 | GDC400*S | 400 | 320 | 440 | 352 | NTAA855-G7A | JDG314F | HCI444F | 6 | 14.0 | 159*159 | 205.4 |
34 | GDC420*S | 420 | 336 | 462 | 370 | NTAA855-G7A | JDG354C | HCI544C | 6 | 18.9 | 159*159 | 200.7 |
35 | GDC450*S | 450 | 360 | 495 | 396 | KTA19-G3 | JDG354C | HCI544C | 6 | 18.9 | 159*159 | 200.7 |
36 | GDC500*S | 500 | 400 | 550 | 440 | KTA19-G3A | JDG354D | HCI544D | 6 | 18.9 | 159*159 | 200.5 |
37 | GDC500*S | 500 | 400 | 550 | 440 | KTA19-G4 | JDG354D | HCI544D | 6 | 18.9 | 159*159 | 200.5 |
38 | GDC550*S | 550 | 440 | 605 | 484 | KTAA19-G5 | JDG354ES | HCI544D | 6 | 18.9 | 159*159 | 200.5 |
39 | GDC600*S | 600 | 480 | 660 | 528 | KTAA19-G6 | JDG354E | HCI544E | 6 | 18.9 | 159*159 | 208 |
40 | GDC600*S | 600 | 480 | 660 | 528 | KTAA19-G8 | JDG354E | HCI544E | 6 | 18.9 | 159*159 | 208 |
41 | GDC625*S | 625 | 500 | 688 | 550 | KTAA19-G6A | JDG354FS | HCI544F-S | 6 | 18.9 | 159*159 | 202 |
42 | GDC625*S | 625 | 500 | 688 | 550 | KT38-G | JDG354FS | HCI544F-S | 6 | 18.9 | 159*159 | 202 |
43 | GDC700*S | 700 | 560 | 770 | 616 | KTA38-GA | JDG354G | HCI544F-S | 12 | 37.8 | 159*159 | 213 |
44 | GDC750*S | 750 | 600 | 825 | 660 | KTA38-G2 | JDG404B | LVI634B | 12 | 37.8 | 159*159 | 209 |
45 | GDC800*S | 800 | 640 | 880 | 704 | KTA38-G2B | JDG404C | LVI634C | 12 | 37.8 | 159*159 | 196 |
46 | GDC900*S | 900 | 720 | 990 | 792 | KTA38-G2A | JDG404D | LVI634D | 12 | 37.8 | 159*159 | 196 |
47 | GDC1000*S | 1000 | 800 | 1100 | 880 | KTA38-G4 | JDG404E | HCI 634G | 12 | 37.8 | 159*159 | 198 |
48 | GDC1125*S | 1125 | 900 | 1238 | 990 | KTA38-G9 | JDG404F | HCI 634G | 12 | 37.8 | 159*159 | 198 |
49 | GDC1250*S | 1250 | 1000 | 1375 | 1100 | KTA50-G3 | JDG404G | HCI 634J | 12 | 37.8 | 159*159 | 213 |
50 | GDC1375*S | 1375 | 1100 | 1513 | 1210 | KTA50-G8 | HCI 634J | HCI 634K | 12 | 37.8 | 159*159 | 213 |
51 | GDC1500*S | 1500 | 1200 | 1650 | 1320 | KTA50-GS8 | LVI 634G | LVI 634G | 12 | 37.8 | 159*159 | 213 |
