Good Price 24kw/30kVA China Engine Silent Diesel Generator (GDYD30*S)
Generator 30KVA with Yangdong / Weichai Engine MODEL | GDY30*S |
Powered by Yangdong / Weichai Engine |
Standby Power (50HZ) | 24KW/30KVA |
Prime Power (50HZ) | 22KW/28KVA |
Engine Model | Y495D |
Engine Prime Power (50HZ) | 24.5 |
Engine Standby Power (50HZ) | 27 |
Speed | 1500rpm |
Cylinders | 4L |
Fuel Consumption | 7.1L/H |
Displacement (L) | 2.216 |
Compression Ratio | 23.3:1 |
Bore x Stroke | 84 X 100 mm |
Cooling Method | Water - cooled |
Starting Method | 24V DC electrical start |
Alternator Model | Stamford copy 184F |
Voltage | 220V |
Electric Current | 78A |
Power Factor | 0.8 |
Phase | 3-phases |
Brush/Brushless | Brushless |
Insulation Grade | H |
Protection Grade | IP23 |
G.W/N.W | 550 KGS |
Overall Size | 2100x1000x1300 MM |
20FT | 12 PCS |
OPTIONAL | ATS(auto transfer switch) |
| Auto Battery Charger |
| AMF(auto mains failure) |
| New canopy |
YANGDONG configuration and technical data
50HZ, 3 Phase, 400/230V |
No. | GENSET Model | OUTPUT POWER 1500RPM 50HZ | Engine Model | Alternator Model | Weight | Dimensions (L*W*H, mm) | Fuel Cons. |
Prime KVA | Prime KW | Standby KVA | standby KW | YANGDONG | GODLIKE | KGS | Silent type | (lir/hr) |
1 | GDYD11*S | 11 | 9 | 13 | 10 | YD380D | JDG164B | 613 | 1800*850*1112 | 3 |
2 | GDYD13*S | 13 | 10 | 14 | 11 | YD385D | JDG164C | 624.5 | 1800*850*1112 | 3.36 |
3 | GDYD16*S | 16 | 13 | 18 | 14 | YD480D | JDG164D | 670 | 2000*950*1150 | 3.39 |
4 | GDYD19*S | 19 | 16 | 21 | 17 | YND485D | JDG184E | 747 | 2000*950*1150 | 4.7 |
5 | GDYD24*S | 24 | 19 | 26 | 21 | YSD490D | JDG184E | 706 | 2100*1000*1250 | 6 |
6 | GDYD28*S | 28 | 22 | 30 | 24 | Y490D | JDG184F | 736 | 2100*1000*1250 | 9 |
7 | GDYD31*S | 31 | 25 | 34 | 27 | Y495D | JDG184G | / | 2100*1000*1250 | 9.8 |
8 | GDYD34*S | 34 | 27 | 38 | 30 | Y4100D | JDG184H | 748.4 | 2300*1000*1250 | 10.2 |
9 | GDYD38*S | 38 | 30 | 41 | 33 | Y4102D | JDG184H | 938 | 2300*1000*1250 | 11.4 |
10 | GDYD44*S | 44 | 35 | 48 | 38 | Y4105D | JDG184J | 968 | 2300*1000*1250 | 13.2 |
11 | GDYD55*S | 55 | 44 | 60 | 48 | Y4102ZLD | JDG224ES | / | / | / |
12 | GDYD63*S | 63 | 50 | 69 | 55 | Y4105ZLD | JDG224E | / | / |

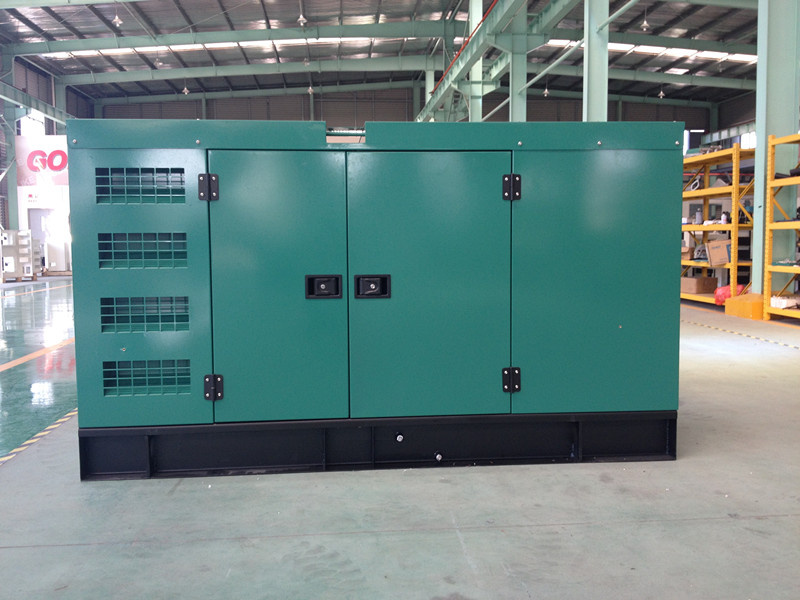

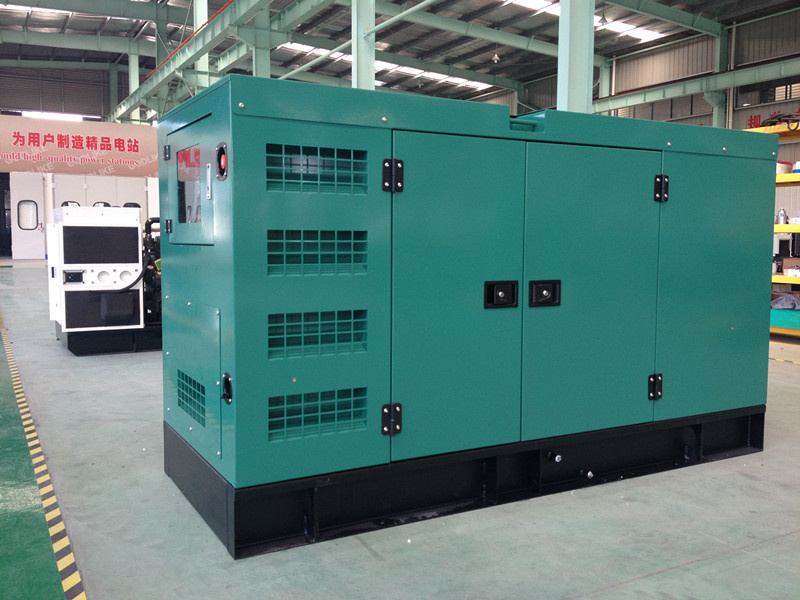

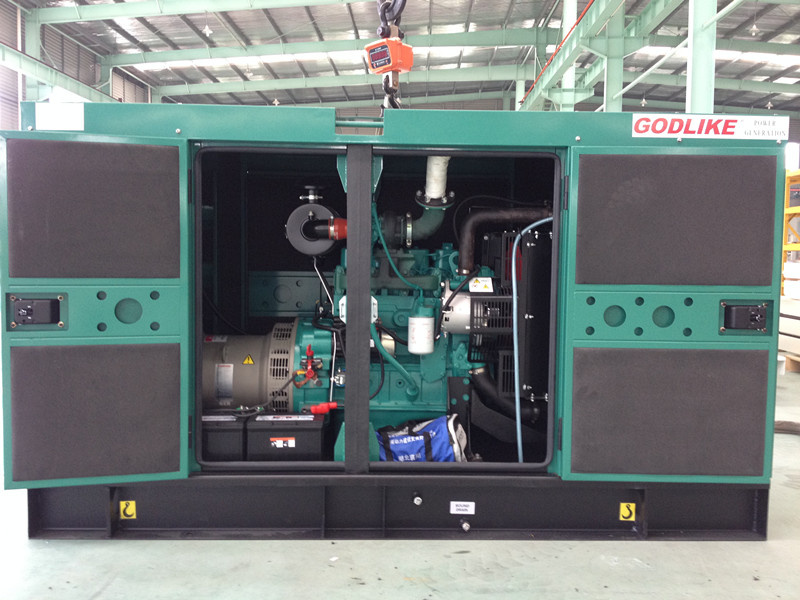

Generator photosContact: Ms Vicki Yuan
Tel: 86 514 80915716
Established in Year 2006, GODLIKE POWER is headquartered in Yangzhou city, Jiangsu Province, only 2.5 hrs far from Shanghai or Nanjing. It has grown into a leading manufacture of diesel generators&alternators in China and ranked amongst the top manufacturers worldwide.
Motivated by our slogan to provide "Excellent Power Solution", Godlike Power focuses on design, manufacture, sales, installation and service of diesel generators&alternators. Our diesel generators range from 8 kVA to 2500 kVA, equipped with Perkins, Cummins, Mitsubishi, Doosan, Deutz, MTU etc and equipped with our alternator, Stamford, Leroy-Somer etc alternators as required. Our Stamford type brushless alternators range from 8kVA to 1250kVA, 50Hz/60Hz option, rpm 1500-1800, voltage 110V-690V, class H, IP23, all easily coupled with Industrial & Marine, Diesel & Gasoline engines.
GODLIKE people treat Quality and Service as enterprise's life, and has competitive advantages.
GODLIKE generators are being exported to Europe, America, Southeast Asia, the Middle East, South Africa, and many other countries and regions, obtaining great corporate reputation and long-terms partner cooperations.
Warmly welcome to GODLIKE.
