Good Price 12kw-150kw Deutz Air-Cooled Diesel Generator (GDD15*S)
Price: |
Negotiable/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,Western Union |
Good price Germany 12kw-150kw Deutz Air-Cooled Diesel Generator (GDD15*S)
Safety

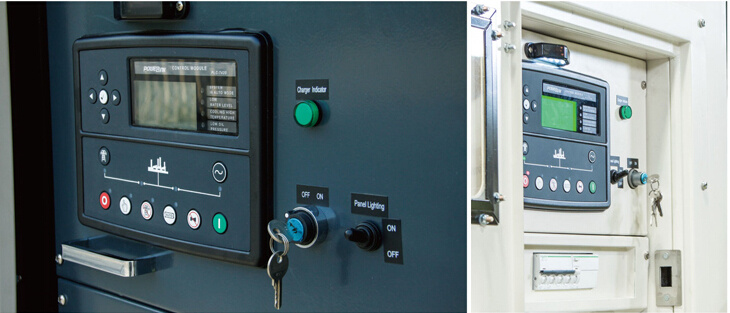

Design, production and testing of the generator sets comply with EU CE safety standard;Equipped with circuit breaker to avoid possible electric risk at re-startup when engine stops in emergency.The controller has a historical operation recording function for troubleshooting and inspection.Powerful EnginesAdopts world-famous engines,with low noise and low emission.Rugged structure ensures lowest vibration.Common rail system: (for some models) significantly lowers the combustion temperature, and also leads to cleaner exhaust.For the turbocharged machines, the carbon dioxide (CO2) emission is reduced.Control SystemMicro-processor cored digital system.Multiple languages, automatic control.Connected with the mains through ATS, which can help realize automatic transfer between the mains and the generators. Also, multiple generators can be paralleled for bigger power needs.Technical parameters:
Germany Deutz Air-cooled generator configuration and technical data
50HZ, 3 Phases, 400V |
No. | GENSET Model | OUTPUT POWER 1500RPM 50HZ | Engine Model | Alternator Model | Bore*Stroke | Cyl. | Disp. | Fuel Cons. |
Prime KVA | Prime KW | Standby KVA | standby KW | Deutz | GODLIKE | Stamford | (mm) | Nos | (L) | g/kw.h |
1 | GDD15*S | 15 | 12 | 17 | 13 | F2L912 | JDG164D | BCI164D | 100*120 | 2 | 1.9 | ≤249 |
2 | GDD20*S | 20 | 16 | 22 | 18 | F3L912 | JDG184E | BCI164E | 100*120 | 3 | 2.8 | ≤249 |
3 | GDD25*S | 25 | 20 | 28 | 22 | F3L912 | JDG184F | BCI184F | 100*120 | 3 | 2.8 | ≤249 |
4 | GDD30*S | 30 | 24 | 33 | 26 | F4L912 | JDG184G | BCI184G | 100*120 | 4 | 3.8 | ≤249 |
5 | GDD33*S | 33 | 26 | 36 | 29 | F4L913 | JDG184H | BCI184H | 100*120 | 4 | 3.8 | ≤249 |
6 | GDD38*S | 38 | 30 | 41 | 33 | F4L912T | JDG184H | BCI184H | 102*125 | 4 | 3.8 | ≤249 |
7 | GDD43*S | 43 | 34 | 47 | 37 | F4L912T | JDG184J | BCI184J | 102*125 | 4 | 3.8 | ≤249 |
8 | GDD50*S | 50 | 40 | 55 | 44 | F6L912 | JDG224D | UCI224D | 100*120 | 6 | 5.7 | ≤251 |
9 | GDD53*S | 53 | 42 | 58 | 46 | BF6L913 | JDG224ES | UCI224E | 102*125 | 6 | 6.1 | ≤251 |
10 | GDD60*S | 60 | 48 | 66 | 53 | F6L912T | JDG224E | UCI224E | 102*125 | 6 | 5.7 | ≤251 |
11 | GDD69*S | 69 | 55 | 76 | 61 | BF6L913 | JDF224F | UCI224F | 102*125 | 6 | 6.1 | ≤251 |
12 | GDD94*S | 94 | 75 | 103 | 83 | BF6L913C | JDG224H | UCI274C | 102*125 | 6 | 6.1 | ≤251 |
13 | GDD113*S | 113 | 90 | 124 | 99 | F8L413F | JDG274DS | UCI274D | 125*130 | 8 | 12.8 | ≤206 |
14 | GDD150*S | 150 | 120 | 165 | 132 | BF8L513 | JDG274E | UCI274F | 125*130 | 8 | 12.8 | ≤206 |
15 | GDD188*S | 188 | 150 | 206 | 165 | BF8L513C | JDG274G | UCI274H | 125*130 | 8 | 12.8 | ≤206 |
60HZ, 3 Phases, 220V |
No. | GENSET Model | OUTPUT POWER 1800RPM 60HZ | Engine Model | Alternator Model | Bore*Stroke | Cyl. | Disp. | Fuel Cons. |
Prime KVA | Prime KW | Standby KVA | standby KW | Deutz | GODLIKE | Stamford | (mm) | Nos | (L) | g/kw.h |
1 | GDD16X*S | 16 | 13 | 18 | 14 | F2L912 | JDG164C | BCI164D | 100*120 | 2 | 1.9 | ≤249 |
2 | GDD29X*S | 29 | 23 | 32 | 25 | F3L912 | JDG184E | BCI184E | 100*120 | 3 | 2.8 | ≤249 |
3 | GDD34X*S | 34 | 27 | 37 | 30 | F3L913 | JDG184F | BCI184F | 102*125 | 3 | 2.8 | ≤249 |
4 | GDD38X*S | 38 | 30 | 41 | 33 | F4L912 | JDG184G | BCI184F | 100*120 | 4 | 3.8 | ≤249 |
5 | GDD43X*S | 43 | 34 | 47 | 37 | F4L913 | JDG184H | BCI184G | 102*125 | 4 | 3.8 | ≤249 |
6 | GDD61X*S | 61 | 49 | 67 | 54 | F6L912 | JDG224D | BCI184J | 100*120 | 6 | 5.7 | ≤249 |
7 | GDD73X*S | 73 | 58 | 80 | 64 | F6L913 | JDG224E | UCI224D | 102*125 | 6 | 6.1 | ≤251 |
8 | GDD80X*S | 80 | 64 | 88 | 70 | F6L912T | JDG224E | UCI224D | 100*125 | 6 | 6.1 | ≤251 |
9 | GDD88X*S | 88 | 70 | 96 | 77 | BF6L913 | JDG224F | UCI224G | 102*125 | 6 | 6.1 | ≤251 |
10 | GDD119X*S | 119 | 95 | 131 | 105 | F6L913C | JDG274C | UCI224G | 102*125 | 6 | 6.1 | ≤251 |

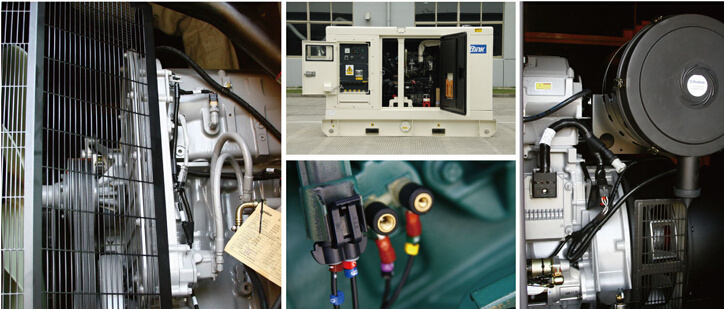

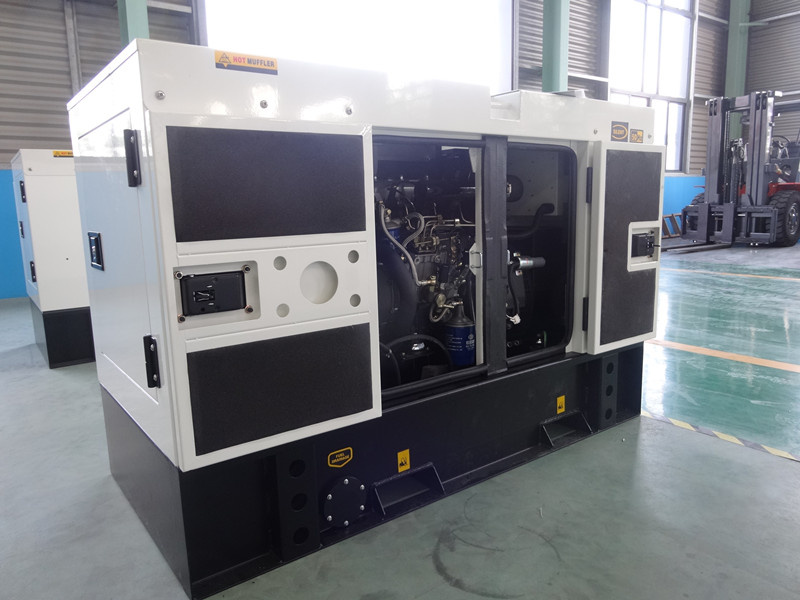

Generator photos:
Contact: Ms Vicki YuanTel:86 0514 80915716
Prod Model: |
GDD15*S |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Engine: |
Deutz Brand, Perkins, Cummins Is Optional |
Frequency: |
50Hz or 60Hz Is Optional |
Alternator: |
Stamford, Marathon, Engga, Godlike |
Test Laod: |
25%, 50%, 75%, 100%, 110% |
Controller: |
Smartgen, Dse etc |
Type: |
Basic Diesel Generator |
Installation Method: |
Fixed |
Stroke: |
Four Stroke |
Cooling Method: |
Water Cooling |
Output Type: |
AC Three Phase |
Established in Year 2006, GODLIKE POWER is headquartered in Yangzhou city, Jiangsu Province, only 2.5 hrs far from Shanghai or Nanjing. It has grown into a leading manufacture of diesel generators&alternators in China and ranked amongst the top manufacturers worldwide.
Motivated by our slogan to provide "Excellent Power Solution", Godlike Power focuses on design, manufacture, sales, installation and service of diesel generators&alternators. Our diesel generators range from 8 kVA to 2500 kVA, equipped with Perkins, Cummins, Mitsubishi, Doosan, Deutz, MTU etc and equipped with our alternator, Stamford, Leroy-Somer etc alternators as required. Our Stamford type brushless alternators range from 8kVA to 1250kVA, 50Hz/60Hz option, rpm 1500-1800, voltage 110V-690V, class H, IP23, all easily coupled with Industrial & Marine, Diesel & Gasoline engines.
GODLIKE people treat Quality and Service as enterprise's life, and has competitive advantages.
GODLIKE generators are being exported to Europe, America, Southeast Asia, the Middle East, South Africa, and many other countries and regions, obtaining great corporate reputation and long-terms partner cooperations.
Warmly welcome to GODLIKE.
