Home Generator Products Globle Warranty Cummins Series 80kw Diesel Generator for Mining

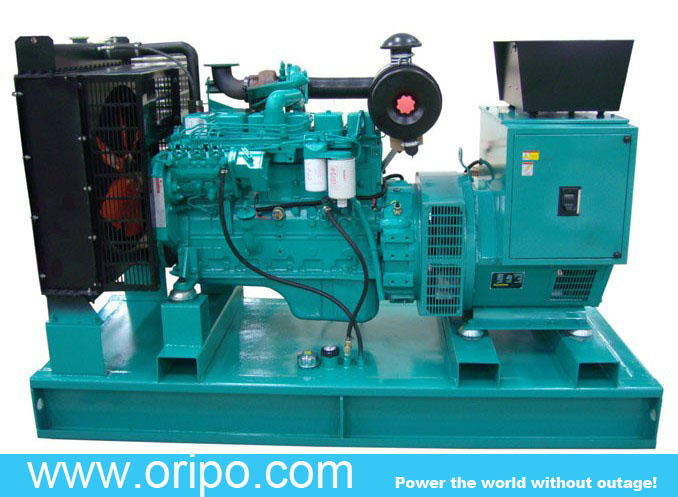

Globle Warranty Cummins Series 80kw Diesel Generator for Mining

Globle Warranty Cummins Series 80kw Diesel Generator for Mining
Price: US $ 8000/Piece
Trade Terms: FOB,EXW,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T

Product Description

1.International Warranty Service
2. Short delivery time
3. With ISO9001 SGS & CE certification
4. Spare parts are easy to get from worldwide market with much cheaper price
5. Coupled with Stamford alternator or Chinese alternator
6. Perfect after-service network
7. Both 50Hz and 60Hz

Model No.STANDBY POWERPRIME POWERENGINEALTERNATORCONTROLLER
KVAKWKVAKW
OCL-11011088100806BT5.9-G2LTG274C16110
230/400VAC,50Hz,0.8PF (lag),Three phase four wires

Generator set specifications
Governor ClassISO8528 G3
Potential Drop1%
Steady Voltage Regulation1%
Frequency DropSynchronous(0%)
Steady-state Frequency0.25%
R.R.I.SuppressionBS EN 61000-6-4 / BS EN 61000-6-2
Fuel Consumption Rate ,g/kw.h(L/hr)215(22)
Starting Battery Capacity ,A/hrhhr80*2
Total Coolant Capacity ,L27
Fuel Capacity (base tank),LN/A
Engine Data
Model6BT5.9-G2
TypeIn-line 6 Cylinder,4 Cycle
Displacement ,L5.9
Compression Ration17.5:1
AspirationTurbo
Fuel SystemA/AD type Fuel Pump,EFC Electronic Governor
Bore*Stroke(mm)102*120
Rated Speed ,rpm1500
Governor TypeElectronic
Starting Voltage24V ,Negative ground
Battery Charging System24V 35A
Lubricant Capacity ,L16.4
Coolant Capacity, L27
Alternator Data
Protection ClassIP21
Insulation ClassClass H
Temperature Rise in Standard125 ºC(When Ambient Temp.is 40 ºC)
Excitation TypeBrushless & Self-excited
Waveform DistortionNo load<1.5% Non-Distorting balanced linear load<5%
Telephone Interference(TIF)<50
Telephone Interference(THF)<2%

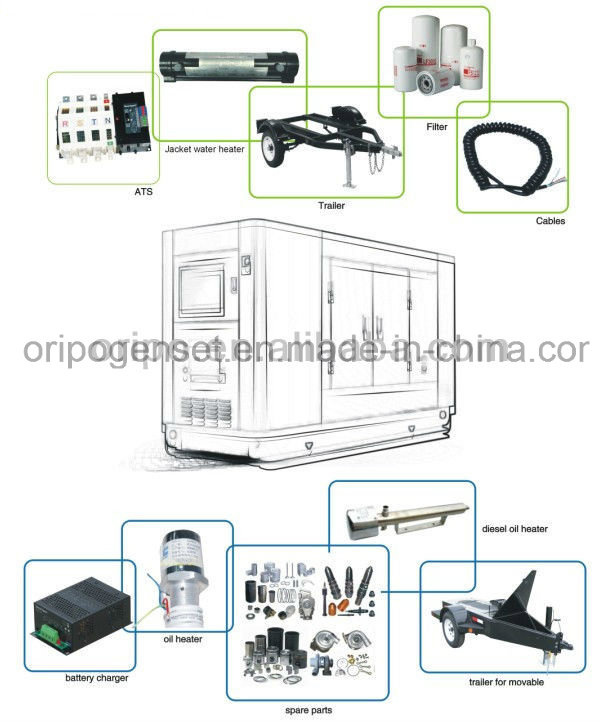

OPTIONAL ACCESSORIES/SPARE PARTS:

-Sound and water proof enclosure
-Trailer/Movable power station
-Battery charger
-Jacket water heater
-Oil heater
-Diesel oil heater
-Automatic transfer switches(ATS) & paralleling system
-Extra fuel tank
-Fuel water separator

Warranty:
1-One year or 1000working hours whichever comes first!
2-Free spear parts offer in warranty period, if confirm manufacturing defect.
3-Free professional techical service support.


Location: Located in Foshan City , quite near guangzhou, welcome to our factory to check the products and the quality.

1.From Guangzhou Baiyun International airport to Oripo:
a.It takes about 1 hour by car/taxi,it is about 58 kilometer;
b.Or take the subway from JiChangNan station to HanXiChangLong Station(you need to transfer at the TiYuXiLu station to PanYu direction), then take a taxi to Oripo, it will take about 1.5 hour.

2.From Canton fair complex to Oripo:
a. It takes about 30 minutes by car / taxi, it is about 32 kilometer;
b. Take the subway from XinGangDong Station / PaZhou station to HanXiChangLong Station, then take a taxi to Oripo, It will take about 1 hour.




Our service quality assurance

1)Before-sale Service: We provide detailed product technical parameters for equipment choosing and system designing

2)Service quality assurance: Our sale staffs are all experience and professional, who can provide the most proper system design and optimized equipment for the customers.

3)After sale maintenance service: We create files for end user and provide them follow-up service, regular return visit and permanent maintenance.

4)Spare parts supply: We provide all kinds of spare parts and technical support.

5)Main overhaul or maintenance service: We provide perennial major overhaul and maintenance service

Contact Details:
FOSHAN ORIPO POWER ENGINEERING CO.,LTD
Contact person:Janet
Mobile:+86-18923200408
Fax:0757-28791208
Web: en.oripo.com
Prod Model: OCL-110
Markets: South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia
Dimension: 2150*860*1560mm
Alternator: Leateck/Stamford
Controller: Smartgen/Deep Sea
Control Panel: LED Control panel
Insulation Grade: H
Protection Grade: IP21-23
Start System: Electric Start
Type: Micro-Computer Control Automatic Diesel Generator
Installation Method: Fixed
Stroke: Four Stroke
Cooling Method: Water Cooling
Output Type: AC Three Phase
Oripo Established in 1998, Oripo Power Engineering Co., Ltd is professional leading manufacturer, suppliers, exporter and authorized dealers of diesel gensets. With over 20, 000 square meters and a staff nearly 200, the headqauter is loacted in Foshan city, adjacent to Guangzhou which is the trade center of Guandong province. We offering power genset, industrial genset, silent genset, weather proof genset, Cummins genset, Perkins genset, Yuchai genset, Shanghai Dongfeng genset, Deutz genset, Weichai electric genset, China domestic genset, silent diesel generator, portable power generator, trailer diesel generator and electric power generator.

Currently, Oripo cooperated with multinational companies formed a strategic partnership. Import CUMMINS, PERKINS series generator sets, and purchase engine from with Cummins, SDEC, Yuchai, LOVOL, Deutz, alternater with STAMFORD, MARATHON, LEADTECH and other international or domestic famous brand. Establish a long-term friendly cooperation relations with the branded engine and alternator company, authorized to be the OEM partner, In 2009, Oripoe authorized by Cummins, Shanghai Dongfeng and Yuchai to provide OEM service. As professional qualified manufacturer provide OEM genset, spare parts, after sale service, in order to better serve customers and laid a solid foundation.

During the last ten odd years, Oripo has been dedicated to pursuing professional production, thus prevailing in the market with its superior quality, cutting-edge technology and tailor-made services. Moreover, with an endeavor to expand our business operations, we adhere to ethical business practices, transparent business dealings and work to attain the confidence and trust of our clients.
