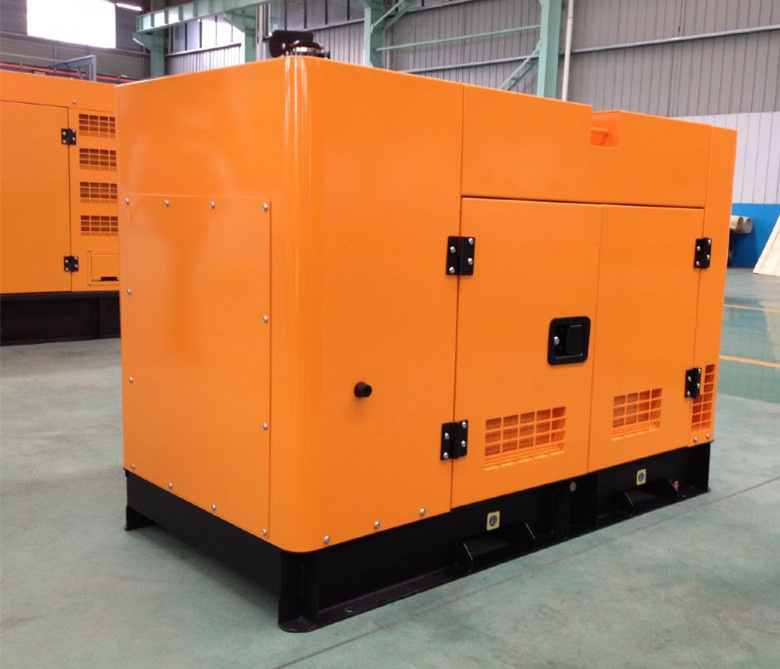

Global Sale 20kVA/16kw Diesel Generator with Xichai (GDX20*S)

Name: Global Sale 20kVA/16kw Diesel Generator with Xichai (GDX20*S)
Brand: aboutgenerator.com
SKU: 760234795
Availability: InStock
Rating: 4.9 (94 reviews)

Price:	US $ 2500-3200/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Jiangsu GodLike Power Technology Co., Ltd.

Showroom Product Company Profile

Global Sale 20kVA/16kw Diesel Generator with Xichai (GDX20*S)

Genset Technical Data
Prime power 16 kW / 20kVA
Standby power 18 kW
Rated speed 1500 RPM
Output frequency 50 Hz
Phase 3
Rated voltage 400 V
Engine model NT855-GA
Alternator model UCID274K

Xichai Diesel Engine Technical Data
Engine Model 4DW91-29D
Configuration 4 cycle , 4 cylinders in line
Rated speed 1500rpm
Prime Power 21KW
Speed Governor electrical
Cooling System Water-cooled
Speed Stability (%) ≤5%
Fuel Consumption at 100% Load 197g/kw.h
Starter Motor DC24V

Alternator Technical Data
Alternator model PI144D
Alternator manufacturer Stamford
Exciter type Single bearing, Brushless, Self-excited
Rated output prime power 16kW
Rated speed 1500 RPM
Rated frequency 50 Hz
Phase 3
Rated voltage 400 V(Available with customer requirements)
Power factor 0.8
Voltage adjust range ≥5%
Voltage regulation NL-FL ≤±1%
Insulation grade H
Protection grade IP23

Germany Deutz Air-cooled generator configuration and technical data

50HZ, 3 Phases, 400V
No.	GENSET Model	OUTPUT POWER 1500RPM 50HZ				Engine Model	Alternator Model		Bore*Stroke	Cyl.	Disp.	Fuel Cons.
No.	GENSET Model	Prime KVA	Prime KW	Standby KVA	standby KW	Deutz	GODLIKE	Stamford	(mm)	Nos	(L)	g/kw.h
1	GDD15*S	15	12	17	13	F2L912	JDG164D	BCI164D	100*120	2	1.9	≤249
2	GDD20*S	20	16	22	18	F3L912	JDG184E	BCI164E	100*120	3	2.8	≤249
3	GDD25*S	25	20	28	22	F3L912	JDG184F	BCI184F	100*120	3	2.8	≤249
4	GDD30*S	30	24	33	26	F4L912	JDG184G	BCI184G	100*120	4	3.8	≤249
5	GDD33*S	33	26	36	29	F4L913	JDG184H	BCI184H	100*120	4	3.8	≤249
6	GDD38*S	38	30	41	33	F4L912T	JDG184H	BCI184H	102*125	4	3.8	≤249
7	GDD43*S	43	34	47	37	F4L912T	JDG184J	BCI184J	102*125	4	3.8	≤249
8	GDD50*S	50	40	55	44	F6L912	JDG224D	UCI224D	100*120	6	5.7	≤251
9	GDD53*S	53	42	58	46	BF6L913	JDG224ES	UCI224E	102*125	6	6.1	≤251
10	GDD60*S	60	48	66	53	F6L912T	JDG224E	UCI224E	102*125	6	5.7	≤251
11	GDD69*S	69	55	76	61	BF6L913	JDF224F	UCI224F	102*125	6	6.1	≤251
12	GDD94*S	94	75	103	83	BF6L913C	JDG224H	UCI274C	102*125	6	6.1	≤251
13	GDD113*S	113	90	124	99	F8L413F	JDG274DS	UCI274D	125*130	8	12.8	≤206
14	GDD150*S	150	120	165	132	BF8L513	JDG274E	UCI274F	125*130	8	12.8	≤206
15	GDD188*S	188	150	206	165	BF8L513C	JDG274G	UCI274H	125*130	8	12.8	≤206
60HZ, 3 Phases, 220V
No.	GENSET Model	OUTPUT POWER 1800RPM 60HZ				Engine Model	Alternator Model		Bore*Stroke	Cyl.	Disp.	Fuel Cons.
No.	GENSET Model	Prime KVA	Prime KW	Standby KVA	standby KW	Deutz	GODLIKE	Stamford	(mm)	Nos	(L)	g/kw.h
1	GDD16X*S	16	13	18	14	F2L912	JDG164C	BCI164D	100*120	2	1.9	≤249
2	GDD29X*S	29	23	32	25	F3L912	JDG184E	BCI184E	100*120	3	2.8	≤249
3	GDD34X*S	34	27	37	30	F3L913	JDG184F	BCI184F	102*125	3	2.8	≤249
4	GDD38X*S	38	30	41	33	F4L912	JDG184G	BCI184F	100*120	4	3.8	≤249
5	GDD43X*S	43	34	47	37	F4L913	JDG184H	BCI184G	102*125	4	3.8	≤249
6	GDD61X*S	61	49	67	54	F6L912	JDG224D	BCI184J	100*120	6	5.7	≤249
7	GDD73X*S	73	58	80	64	F6L913	JDG224E	UCI224D	102*125	6	6.1	≤251
8	GDD80X*S	80	64	88	70	F6L912T	JDG224E	UCI224D	100*125	6	6.1	≤251
9	GDD88X*S	88	70	96	77	BF6L913	JDG224F	UCI224G	102*125	6	6.1	≤251
10	GDD119X*S	119	95	131	105	F6L913C	JDG274C	UCI224G	102*125	6	6.1	≤251

Contact: Ms Vicki Yuan
Tel: 86 514 80915716

Prod Model:	GDX20*S
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Engine:	Xichai Brand, Perkins, Deutz Is Optional
Alternator:	Stamford, Marathon, Engga, Leroy Somer
Material:	100% Famous Material
Controller:	Dse 7320, Smartgen Hgm6110, Hgm6120 Is Optional
Function:	ATS, Amf, Mobile
Type:	Micro-Computer Control Automatic Diesel Generator
Installation Method:	Fixed
Stroke:	Four Stroke
Cooling Method:	Water Cooling
Output Type:	AC Three Phase

Established in Year 2006, GODLIKE POWER is headquartered in Yangzhou city, Jiangsu Province, only 2.5 hrs far from Shanghai or Nanjing. It has grown into a leading manufacture of diesel generators&alternators in China and ranked amongst the top manufacturers worldwide.

Motivated by our slogan to provide "Excellent Power Solution", Godlike Power focuses on design, manufacture, sales, installation and service of diesel generators&alternators. Our diesel generators range from 8 kVA to 2500 kVA, equipped with Perkins, Cummins, Mitsubishi, Doosan, Deutz, MTU etc and equipped with our alternator, Stamford, Leroy-Somer etc alternators as required. Our Stamford type brushless alternators range from 8kVA to 1250kVA, 50Hz/60Hz option, rpm 1500-1800, voltage 110V-690V, class H, IP23, all easily coupled with Industrial & Marine, Diesel & Gasoline engines.

GODLIKE people treat Quality and Service as enterprise's life, and has competitive advantages.

GODLIKE generators are being exported to Europe, America, Southeast Asia, the Middle East, South Africa, and many other countries and regions, obtaining great corporate reputation and long-terms partner cooperations.

Warmly welcome to GODLIKE.
