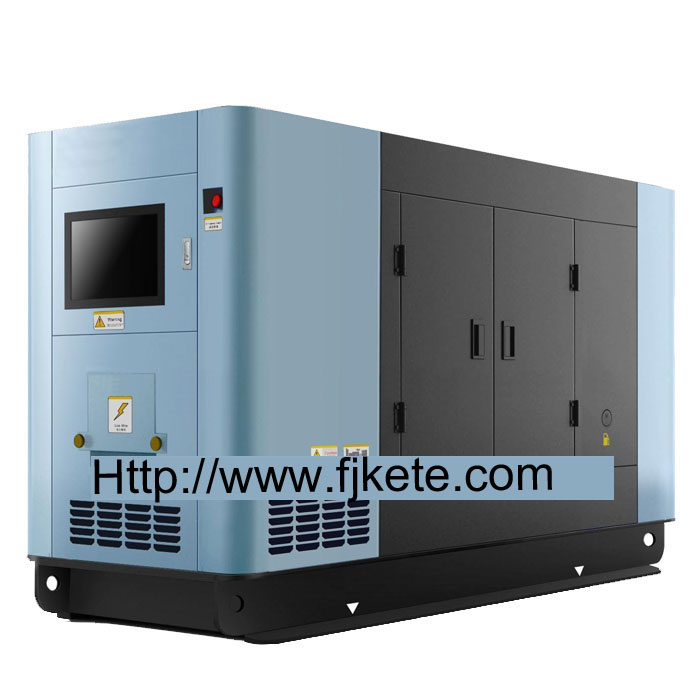

GFS SERIES LOW NOISE THREE-PHASE DIESEL GENERATATING SET
Model GFS-20 GFS-24
Rated Output Power(kw/kva) 20/25 24/30
Engine Type 4-cylinder, four stroke, in-line, water-cooling motor
Name 495D
Rated Power(kw/HP) 26.5/36
Stand-by Power(kw/HP) 29/39.5
Speed(rpm) 1500
Starting Mode 12V D. C electric starting
Cooling Mode Closed circulation water cooling
Bore x Stroke(mm) 95 x 115mm
Capacity(L) 3.26L
Fuel Consumption(g. Kw/h) 258.4
Induction System naturally aspirated, turbocharged, turbocharged and air inter-cooled
Alternator Type Three-phase A. C synchronous generator
Name STC-20 STC-24
Rated Power(kw/kva) 20/25 24/30
Rated Current(A) 36.1 43.3
Rated Voltage(V) 400
Rated Frequancy(Hz) 50
Rated Speed(rpm) 1500
Genses Noise(dB) <80dB (Outside 7m of the set )
Long(mm) 200
Wide(mm) 90
High(mm) 112
Gross Weight(kg) 1050 1100
1: Price type: FOB or CFR
2: Payment terms: 30%T/T in advance, balance of 70% after receive the B/L Fax Copy
3: Packing: Wooden cases
4: Delivery time: 20days upon receipte of advance payment
5: We are looking forward to your specific inquiry
We have a strict quality control and inspection system that we adhere to and are continually striving to improve our products and services. As a professional generator manufacturer, we are ISO9001, CE and CCC certified. We supply only high quality products and guarantee our customers complete satisfaction.
