Fetures:

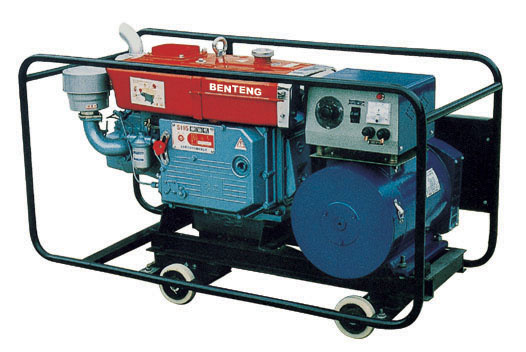

1.3-12KW series of ordinary diesel generating sets have been provided with high quality water-cooled single cylinder diesel engine, those engine can work well in every kinds of conditions.
2. The structure of generating sets, the engine has been coupled with alternator through v-belt or coupled directly with alternator, both of them have been installed on the basis of anti-shock pad, the gen-sets has been fixed on the frame of steel pipes which has four wheels.
3. Other features:
It's easy to operate and maintain, control panel, capacitor type, voltage regulator, no-fuse circuit breaker, over-current protection, wheels type design, double-shaft balance design, electric starting
1. Voltage stead-state regulation± 1% fluctuation ratio1.5%; Transient-state regulation-15~20% stead time 5s Frequency stead-state regulation5% fluctuation ratio1.5%; Transient-regulation± 10%stead time 5s;
2. The noise of gen -sets should be no more than 85dB(a); The fuel consumption is no more than 2.5kg/kw. H. Consumption is no more than 2.5kg/kw. H.
Model
| GF1-8KW
| GF1-10KW
| GF1-12KW
| GF1-15KW
|
Frequency(Hz)
| 50
|
Cont.AC output(KW)
| 8
| 10
| 12
| 15
|
Max.output(KW)
| 10
| 11.47
| 14
| 16
|
Voltage(V)
| 380V
|
Power factor
| 0.8/1
|
generator
| Mode
| STC-8KW
| STC-10KW
| STC-12KW
| STC-15KW
|
Type
| alternator
|
Cont.ACoutput(KW)
| 8
| 10
| 12
| 15
|
Max.output(KW)
| 10
| 11.47
| 14
| 16
|
Excitation system
| Brush or brushless excitation with AVR
|
Insulation Class
| H
|
Construction Type
| SAH
|
Engine
| Model
| S1100
| ZS1110
| ZS1115
| ZS1120
|
Number of cylinders
| Single,horizontal,4-stroke,wate-cooled
|
Bore*stroke
| 100* 115mm
| 110* 115mm
| 115* 115mm
| 120* 120mm
|
displacement
| 903ml
| 1093ml
| 1194ml
| 1473ml
|
Xompression ratio
| 17.5:1
| 17:1
| 17:1
| 18:1
|
Power/the firt one hour
| 12.13kw/2000rmp
| 12.13kw/2000rmp
| 12.13kw/2000rmp
| 12.13kw/2000rmp
|
Fuel consumption
| 253g /kw.h
| 251.6g /kw.h
| 248.9g /kw.h
| 255.8g /kw.h
|
Start model
| Electric
|
Fuel tank capacity
| 12L
| 13L
| 13.5L
| 14L
|
Operating noise leve( 7m )
| 75dB
|
|
Cont.working time(h)
| 12
|
|
Overall dimensions(mm)
| 1800*850*1065
| 1800*850*1065
| 1800*850*1065
| 2200*900*1065
|
Package dimensions(mm)
| 1850*900*1165
| 1850*900*1165
| 1850*900*1165
| 2250*950*1165
|
Net weight(kg)
| 850
| 970
| 890
| 1020
|
Dry weight(kg)
| 900
| 920
| 940
| 1070
|
