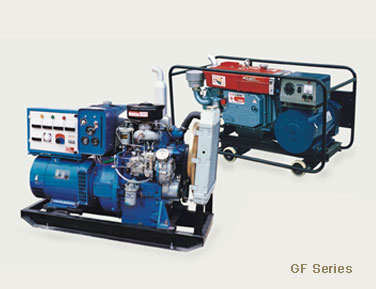

GF Series Single Three-Phase Diesel Generating Sets:
1. Voltage steady-state regulation1% fluctuation ratio 1.5% transient-state regulation -15~20% steady time 5s Frequency steady-state regulation 5% fluctuation ratio 1.5% Transient-regulation1% steady time 5s
2. The noise of gen-sets should be no more than 85db(a). The fuel consumption is no more than 2.5kg/kw. H.
Main Featured
1. Engine - Water cool
2. V-belt conpled
3. Anti-shock pad
Diesel Engine | Sets Model | GF1-3KW | GF1-5KW | GF1-8KW | GF1-10KW | GF1-12KW |
Model | S175 | S195 | S1100 | S1105 | S1110 |
Starting System | Manual/Electric |
Fuel comsumption (gl/KW.h) | 270 | 250 | 250 | 250 | 250 |
Type | Horizontal, Single-ylinder, Four-Stroke, Water-Cooled |
Cooling Type | Closed Circulating Cooling(Condensor) |
Rated Speed | 1500/1800 |
Alternator | Model | STC-3(ST-3) | STC-5(ST-5) | STC-8(ST-8) | STC-10(ST-10) | STC-12(ST-12) |
Rated Freq.(Hz) | 50/60 |
Rated Voltage (V) | 400/230 |
Rated Current (A) | 5.4(13/25) | 9(21.7/43.5) | 14.4 (32.6/65.2) | 18 (43.5/87) | 21.6 (52.2/104.3) |
Rated Output (kW) | 3 | 5 | 8 | 10 | 12 |
Power Factor | 0.8LAG(1.0) |
Type | Triple Harmonic, 2phase(Single Phase) |
Gen-Sets | Dimensions(mm) | 1050X500X720 | 1320X650X860 | 1320X650X860 | 1320X650X860 | 1320X650X860 |
Net Weight(kg) | 170 | 320 | 350 | 360 | 380 |
