Product Description

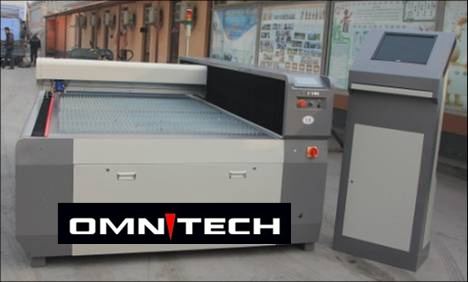

German rofin RF laser generator Fiber laser metal cutting machine
Technical-parameters
Model: Omni 1325 mixed cut
Working area: 1300X2400 (mm)
Laser power: 300W
Laser Type: German rofin RF laser generator
Work platforms: Platform serrated knives platform
Working speed: ≤ 400mm / s
Positioning accuracy: ± 0.05mm (no red)
Graphic format supported: BMP, PLT, DST, AI, DXF, etc.
Cooling: Water cooling and protection system thermostat
Power supply: AC380 ± 10%, 50 ~ 60Hz, 30A max
Operating temperature: 0 ~ 45 º C
Operating Humidity: 5% ~ 95% non-condensing
Drive motor: Yaskawa servo (X, Y: 750W)
Whole consumption (KW): 8
Auxiliary cutting blow: Nitrogen, oxygen or air
Machine size: 3460X2000X1300 (mm)
Exhaust System: Dual exhaust funnel beams
Applicable industry: Mainly used in the advertising industry (steel and acrylic), sheet metal industry (stainless steel, carbon steel, galvanized plate), the packaging industry (Die) and other cutting
Machine Youtube video link: http://youtu.be/8xE6nD9GFX0
Features and functions:
Feature of machine
1, mixing cutting capacity of the machine: For stainless steel, carbon steel, acrylic, and wood can be cut.
2, high-precision machine: Imported German rofin laser generator, Yaskawa servo ball screw transmission with imports and imported, greatly improves the response speed and precision cutting equipment, extending the product life.
3, constant optical system: The machine uses a constant Y-axis optical system, effectively ensuring the entire breadth of the cut. Equipped with an anti-reflection system, the effective protection of the laser tube.
4, metal servo system: For metal cutting, cutting automatically adapt to uneven surfaces, consistent with the full effect of the cutting table
Thickness Speed (mm / s) the auxiliary gas atmosphere
Cutting parameters:
Carbon 1mm cutting speed 80-90mm / s oxygen 0.5-0.6
Steel 2 mm cutting speed 40-50mm / s Oxygen 0.5-0.7
Steel 3 mm cutting speed 20-25mm / s Oxygen 0.5-0.8
Carbon 4 mm cutting speed 15-20mm / s Oxygen 0.6-0.9
Stainless steel 1 mm cutting speed 80-90mm / s oxygen 0.5-0.6
Steel 2 mm cutting speed 30-40mm / s Oxygen 0.6-0.7
Steel 3 mm cutting speed 10-20mm / s Oxygen 0.6-0.8
Acrylic 20 mm cutting speed 3-5mm / s air -
Plywood 15 mm cutting speed 25-30mm / s compressed air
Design
Packaging & Shipping
German rofin RF laser generator Fiber laser metal cutting machine
Our Services
German rofin RF laser generator Fiber laser metal cutting machine
1.24 months for machine, long life span of laser tube: 8000-10000hours.
2.24 hours technical support by e-mail, calling, skype, whatsappservice
3. English software, user manual and detailed Videos CD
4. International quality certificate: CE, FDA,
5. Professional laser machine supplier with 8 years experiences in China
