Genset speed control

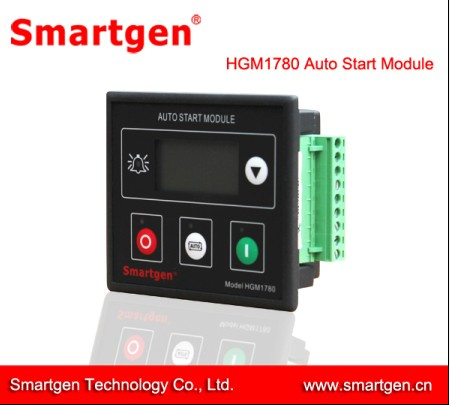

HGM1780 is an auto start module. It has 3 working modes which can be select through push button in the panel. It can control the genset to start/stop by manual or remote start signal. When controller detected faults (such as low oil pressure, water/cylinder temperature, emergency stop alarm, and over speed), it can disconnect the fuel relay and stop. LCD in the panel displays faults status and offers real alarm signals.
PERFORMANCE AND CHARACTERISTICS
Use microprocessor as its core. LCD display with push button operation.
Power supply range is (8~35) VDC, suitable for start environment of 12V or 24V.
With sensors input ports, to realize digital display of electrical parameters, including,
Gens voltage (V)
Gens frequency (Hz)
Gens current (A)
Engine temperature (C)
Engine oil pressure (kPa)
Speed (rpm)
Accumulated hours run (h)
Battery voltage (V)
Engine fuel level (%)
Sensors threshold can be set to warn and pre-alarm, including,
Low oil pressure
High temperature of water/ cylinder
Over speed/under speed
Emergency stop
Fail to start
Fail to stop
Gens over/under voltage
Gens over/under frequency
Battery over/under voltage
Low fuel level
Idle speed control and energized to stop (ETS);
3 working modes: Manual, Automatic, and Stop;
Controller can be set as engine controller via software configuration (controller does not select voltage input), suitable for pump unit control;
Red light-emitting diodes (LED) installed in the panel displays working and alarming status;
Multiple sensors of temperature, pressure, and oil level can be used directly and its parameters can be defined. The sensors of temperature and pressure can be paralleled use with temperature and pressure alarm;
Multiple crank disconnect conditions are optional (such as magnetic pickup, oil pressure and gens);
2 fixed relay outputs (fuel output, start output);
1 programmable output which can be set as common alarm output, fail to stop output, preheat output or idle control output;
User can edit and save the parameters in FLASH memory of controller and not lost even power off. All parameters can be set via front panel or link port via PC testing software (with SG72 adaptor). An USB port is needed only without connecting battery to set parameters;
Modular design, anti-flaming ABS plastic shell, embedded mounting. Compact structure with small size. Advanced SCM control, stable performance and convenient operation.
