Home Generator Products Genset, Gas Genset

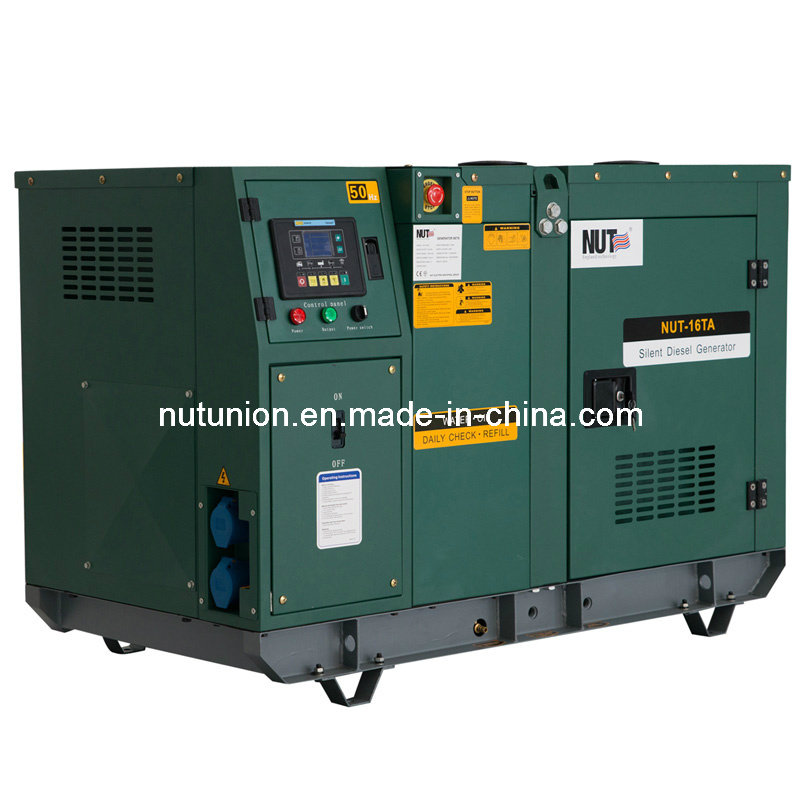

Genset, Gas Genset

Genset, Gas Genset
Price: Negotiable/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: L/C,T/T
We are Western Union Electric Industrial Co., Ltd., committed to providing customers with high-quality power products and perfect service system, now mainly is generators and pumps.

FYI:

This is our website: HTTP: //nutunion. En. Made-in-China. com/
MODEL NUT-13.8TA NUT-13.8TA3 NUT-16TA NUT-16TA3 NUT-20TA NUT-20TA3 NUT-25TA3 NUT-30TA3 NUT-40TA3 NUT-50TA3 NUT-65TA3
GENERATOR Rated frequancy Hz 50 50 50 50 50 50 50 50 50 50 50
Rated output KVA 13.8 13.8 16 16 20 20 25 30 40 50 65
KW 11.04 11.04 12.8 12.8 16 16 20 24 32 40 52
Rated voltage V 230 230/400 230 230/400 230 230/400 230/400 230/400 230/400 230/400 230/400
Rated current A 52.1 20 58.2 23 71 28.8 36 43.2 58 72 93.6
Rated totation speed r/min 1500 1500 1500 1500 1500 1500 1500 1500 1500 1500 1500
Phase no./Excitation mode single phase/ self-excitation and constant voltage(with AVR) three phase/ self-excitation and constant voltage(with AVR) single phase/ self-excitation and constant voltage(with AVR) three phase/ self-excitation and constant voltage(with AVR) single phase/ self-excitation and constant voltage(with AVR) three phase/ self-excitation and constant voltage(with AVR) three phase/ self-excitation and constant voltage(with AVR) three phase/ self-excitation and constant voltage(with AVR) three phase/ self-excitation and constant voltage(with AVR) three phase/ self-excitation and constant voltage(with AVR) three phase/ self-excitation and constant voltage(with AVR)
Power factor (Cosø) 1.0(lag) 0.8(lag) 1.0(lag) 0.8(lag) 1.0(lag) 0.8(lag) 1.0(lag) 0.8(lag) 0.8(lag) 0.8(lag) 0.8(lag)
Insulation drade H H H H H H H H H H H
Pole number 2 4 2 4 2 4 4 4 4 4 4
ENGINE Model NUT3805T NUT3805T NUT4080T NUT4080T NUT4805T NUT4805T NUT4090T NUT4090T NUT40102T NUT40102ZT NUT40105ZT
Type Three cylinder, 4-stroke direct injection Three cylinder, 4-stroke direct injection Four cylinder, 4-stroke direct injection Four cylinder, 4-stroke direct injection Four cylinder, 4-stroke direct injection Four cylinder, 4-stroke direct injection Four cylinder, 4-stroke direct injection Four cylinder, 4-stroke direct injection Four cylinder, 4-stroke direct injection Three cylinder, 4-stroke direct injection Four cylinder, 4-stroke direct injection
Cylinder No.-Bore x stroke mm 3-85x90 3-85x90 4-80x90 4-80x90 4-85x95 4-85x95 4-90X100 4-90X100 4-102x118 4-102x118 4-105x118
Displacement L 1.532 1.532 1.809 1.809 2.156 2.156 2.54 2.54 3.857 3.707 4.017
Compression ratio 22:1 22:1 22:1 22:1 18:1 18:1 18:1 18:1 18:1 18:1 18:1
Rated power KW(r/min) 12/1500 12/1500 14.4/1500 14.4/1500 17.6/1500 17.6/1500 28/1500 28/1500 36/1500 48/1500 56/1500
Fuel type 0#(summer),                          -10#(winter), -35#(cold) light diesel 0#(summer),                          -10#(winter), -35#(cold) light diesel 0#(summer),                          -10#(winter), -35#(cold) light diesel 0#(summer),                          -10#(winter), -35#(cold) light diesel 0#(summer),                          -10#(winter), -35#(cold) light diesel 0#(summer),                          -10#(winter), -35#(cold) light diesel 0#(summer),                          -10#(winter), -35#(cold) light diesel 0#(summer),                          -10#(winter), -35#(cold) light diesel 0#(summer),                          -10#(winter), -35#(cold) light diesel 0#(summer),                          -10#(winter), -35#(cold) light diesel 0#(summer),                          -10#(winter), -35#(cold) light diesel
Lube oil type Above CD grade ,        SAE 10w30 or 15w40 Above CD grade ,        SAE 10w30 or 15w40 Above CD grade ,        SAE 10w30 or 15w40 Above CD grade ,        SAE 10w30 or 15w40 Above CD grade ,        SAE 10w30 or 15w40 Above CD grade ,        SAE 10w30 or 15w40 Above CD grade ,        SAE 10w30 or 15w40 Above CD grade ,        SAE 10w30 or 15w40 Above CD grade ,        SAE 10w30 or 15w40 Above CD grade ,        SAE 10w30 or 15w40 Above CD grade ,        SAE 10w30 or 15w40
Fuel consumption g/kw.h ≤216 ≤216 ≤215.5 ≤215.5 ≤210 ≤210 ≤200 ≤200 ≤190 ≤190 ≤190
Fuel tank capacity L 30 30 30 30 50 50 50 50 80 80 80
Bunker Continuous running time h 8 8 7 7 10 10 10 10 12 12 11
Overall dimention LXHXH Mm 1400x760x900 1400x760x900 1400x760x900 1400x760x900 1600x800x1000 1600x800x1000 1600x800x1000 1600x800x1000 1900x900x1300 1900x900x1300 1900x900x1300
SET Net weight KG 585 589 625 632 670 680 790 810 920 985 1158
Starting mode   12v electric starting 12v electric starting 12v electric starting 12v electric starting 12v electric starting 12v electric starting 12v electric starting 12v electric starting 12v electric starting 12v electric starting 12v electric starting
Noise at zero load Db(A)1m 70 70 70 70 70 70 70 70 70 70 70
Noise at rated load Db(A)7m 62 62 62 62 62 62 62 62 62 62 62
Structure type   Silent Silent Silent Silent Silent Silent Silent Silent Silent Silent Silent
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Gas Source: Petrol
Western Union (Foshan) Industrial Co., Ltd.Committed to providing customers with high-quality power products and perfect service system, our products including diesel generators, gasoline generators, pumps, generator welders, construction engineering machinery.Customers throughout the multiple industry sectors such as power supply, railways, telecommunications, mobile, banking, oil field, traffic, city, hotel, household, hospital, etc...

The company has industry-leading research and development technology, strong comprehensive strength, With more than 30000m2 of large factory, warehouse and office building, Mainly developes own-brand productions and be the sales agent for the imported brand power products.

With outstanding production capacity and high quality control, in 2008 we became one of the important partners of the British NUT industry group, the British Perkins power group, the Stanford motor, the United States Cummins power, (the world's four big power manufacturers) in China.We passed the ISO9001:2008, CCC, CE TUV certification.Products are exported to many countries around the world.

Sticking to the principle of providing customers with high quality affordable energy products gains high endorsement from partners both at home and at abroad.
"The quality is the life of the enterprise" is our everlasting goal.Western Union Industrial establishes a good long-term relations of cooperation with the general channel distributors and retailers in the world, to provide users with high quality and reliable power products and make the perfect solution.

We look forward to cooperate with the customers and common progress, to achieve mutually beneficial and win-win goal!
