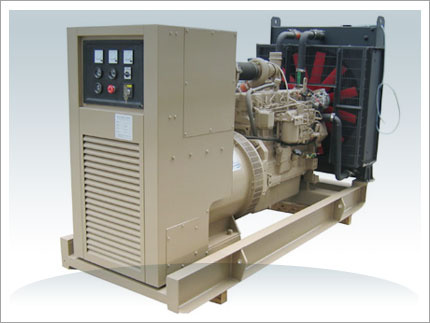

1) Output range: 220kW (257kVA) up to 880kW (970kVA),
2) Engine model: MTA11-G2A, NT855-GA, NTA855-G1, NTA855-G1A, MTAA11-G3, NTA855-G2,
NTA855-G4, NTAA855-G7, KTA19-G2, NTAA855-G7A, KTA19-G3, ECT
3) Alternator: Stamford, Marathon series
4) Air-cooled
5) 8hrs operation base tank
6) Key start / auto start
7) Sound-proof / weather-proof canopy is optional
8) 230 / 400V AC, 50Hz / 60Hz, 0.8pF three-phase and four wires alternating current output
9) Frequency: <3% 10) Frequency at stable state: <0.5%
11) Frequency deviation at instantaneous state: D+10%
12) Frequency return time: D3s
13) Voltage deviation at stable state: D? 1%
14) Voltage deviation at instantaneous state: D+20%
15) Voltage return time: D4s
16) Voltage modulation: D0.3%
17) Standard configuration of gensets: A) Engine: Cummins diesel engine b) Engine type: Water-cooled, in line four-stoke, Humit cylinder liner, direct injection c) Alternator: Marathon brushless alternator
18) Control system:
A) Automatic alarm system: The unit has the acousto-optics alarm system and arrestor for any situation as the start defeat, the water is over temperature, the oil pulls down, over speed, over load and over current
B) Operation display:
I) Unit voltage, tri-phase load current and frequency display
Ii) Water temperature, oil pressure display
Iii) Fuel level, fuel temperature display
Iv) Audible and visual alarm lamps and buzzers
19) Starting system: DC alternator is used to start engine
20) Short circuit protection: MCCB air switch
21) Cooling system: Combined cooling water tank fitted to meet the requirement of radiation at ambient temperature 40? C
22) Filter system: Oil, fuel and air filter
23) Accessories: Exhaust elbow, bellow, muffler
24) Supply standard collocation:
A) Diesel engine with all accessories, 3 filter, electric systems
B) Alternator
C) Steel structure
D) Fan and water tank cooling system
E) Flange connector
F) 12 / 24V starting motor and charge engine
G) Air cleaner, fuel cleaner, oil cleaner
H) On-board control panel
I) MCCB air conservation switch
J) 12 / 24V starting accumulator and Battery line
K) Set shock absorber
L) High-efficient silencer
Trademark: Xidian
Standard: 220-900kw, 50&60Hz
Chongqing Xidian Power Equipment Co., Ltd is engaged in R&D, manufacturing, sale and service of diesel generator sets. Located in Chongqing, an important industrial city of West China. Xidian boasts its strenth in manufacturing of diesel generator sets and providing services, with modernized workshops, which are empowered by complete manufacturing equipment, processes, and advanced test facilities.
Xidian is the OEM for a number of diesel engine makers, such as Chongqing Cummins, John Deer, Shanghai Diesel Engine and Shanghai New Holland. We have established long-term cooperation with renowed many motor makers, such as Shanghai Marathon, Wuxi Faraday, Leroy-Somer and Wuxi new Age.
Xidian takes technical innovation as the sole of our enterprise, developing a wide a wide range of new products to suit customers requirments, Products specification range from 15km to 1000km, providing mobile series, auto switching series, mute series, parallel connected generator, and centrol monitoring series. We aslo provide auxiliary facilities and services regarding environmental protection, silencing, contracted repair and maintenance.
Xidian has been gradually recognized in markets, through first class products and services. Our products have been sold well in domestic and foreign markets and are widely used by various sectors, such as factories, hotels, housing, railway transport, and oil exploration.
Xidian has been licensed to conduct foreign trade itself and passed ISO 19001: 2000 qualith management system certification.
