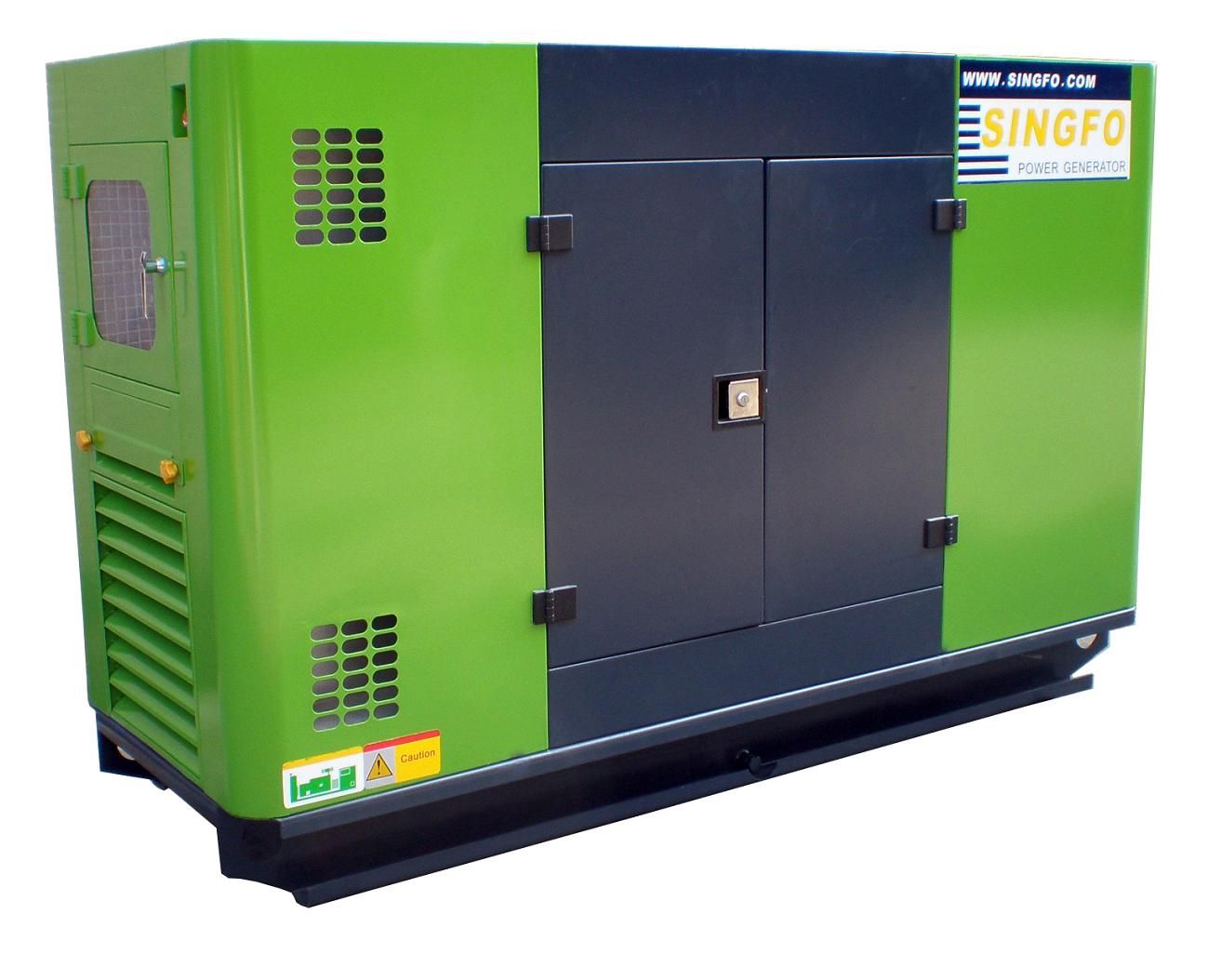

Cummins Silent Diesel Generator Set
Engine: Cummins
Alternator: Marathon/ Stamford/ Learnt.
Range: 20kw(25KVA)-400kw(500KVA)
Diesel Generator Set: High anti-corrosion structure
Strong anti-corrosion structure, steel cabinet, galvanized snails, stainless steel locks
Best quality muffler to ensure the noise of the genset under 75dB(a)
Easy operation and maintenance, also feasible to open-air work
Built-in fuel tank
1) Out put voltage: 380V/430V
2) Frequency: 50Hz-60Hz
3) Power factor: COSΦ =0.8(lagging)
4) Noise level: 60-65dB
5) Protection: Low oil-pressure, High water temperature,
Over-speed, Over-current.
Engine:
1) Original: China(joint-venture between USA and China)
2) Start mode: DC24V electric start
3) Inter-Cooling: Water cooling
4) Speed-Governing: Electric
5) Voltage Control: AVR
6) Overload: 110%
Alternator: Marathon, Stamford, Learnt.
1) Protection: IP21
2) Original: China(or joint venture in China)
3) Rated voltage: 380/430 V
4) Frequency regulation: ≤ +/-0.5 %(stable)
5) Voltage control: AVR
Control Panel: UPwin2210, Deepsea: 5110, Deepsea: 5210
1) Start or Stop the power Generator set manually/ automatically
2) Open controller output can be defined as Pre-heat/Idle output
3) High Coolant temperature protection
4) Low Oil pressure protection
5) Over load protection
6) over/under frequency protection
7)over/under/unbalance voltage Protection
8) Over speed protection
9) Available for remote control
Optional Accessories: ATS, Braker, Battery charger.
Singfo, one of the leading worldwide suppliers of power generators, is located in beautiful Zhujang Delta of China with the establishment in 1996. The Company has an office overseas as well as fourteen branches all over the country with more than four-hundred staff members through its years of development, of which has formed a chain from production. Sales, maintenance to customer service.
To meet its client's requirements, Singfo has set up and implemented a well-regulated management system targeting towards competitive price, excellent quality and reputable customer service in long-run. The Company has fostered a team focused on self-improvement, all of whom are rich in experience, professional at technology and dutiful to their work. Moreover, our services also cover technical output, scientific research, project design and construction.
