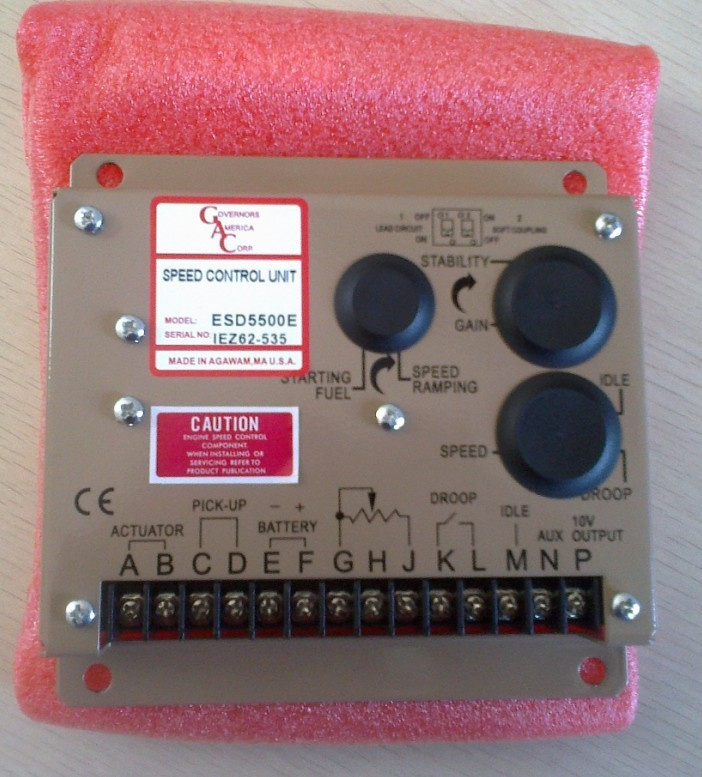

ESD5550E SPECIFICATIONS
PERFORMANCE
Isochronous Operation/Steady State Stability...± 0.25% or better
Speed Range/Governor...1K7.5K Hz continuous
Speed Drift with Temperature...± 1% Maximum
Idle Adjust CW...60% of set speed
Idle Adjust CCW...Less than 1200 Hz.
Droop Range...1 5% regulation*
Droop Adj. Max. (K-L Jumpered)...400 Hz., ± 75 Hz. Per 1.0 A change
Droop Adj. Min. (K-L Jumpered)...15 Hz., ± 6 Hz. Per 1.0 A change
Speed Trim Range...± 200 Hz.
Remote Variable Speed Range...500 7.5 Hz. Or any part thereof
Terminal Sensitivity
J...100 Hz., ± 15 Hz / Volt @ 5.0 K Impedance
L...735 Hz., ± 60 Hz / Volt @ 65 K Impedance
N...148 Hz., ± 10 Hz / Volt @ 1 Meg. Impedance
P...10 VDC Supply @ 20 ma Max.
ENVIRONMENTAL
Ambient Operating Temperature Range...-40° To +180° F (-40° To +85° C)
Relative Humidity...Up to 95%
All Surface Finishes...Fungus Proof and Corrosion Resistant
INPUT POWER
Supply...12 or 24 VDC Battery Systems (Transient and Reverse Voltage Protected)
Polarity...Negative Ground (Case Isolated)
Power Consumption...50 ma continuous plus actuator current
Actuator Current Range @ 77° F (25° C) - (Inductive Load)...Min. 2.5 AMPS, Max. 10 AMPS continuous
Speed Sensor Signal...0.5120 Volts RMS
RELIABILITY
Vibration...1G @ 20100 Hz.
Testing...100% Functionally Tested
PHYSICAL
Dimensions...See Outline (FIGURE 1)
Weight...1.2 lbs (545 grams)
Mounting...Any Position, Vertical Preferred
