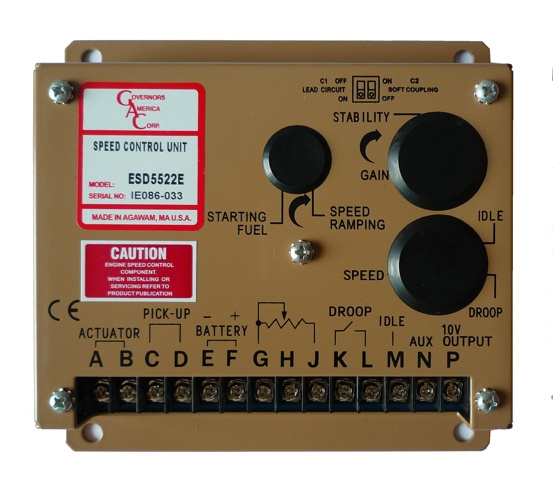

Generator Set Speed Controller ESD5522
This model is specially designed for Cummins actuators, but with the same function as GAC ESD5522E.
PERFORMANCE:
RPM Stability:
<± 0.25%
Speed Range:
1kHz ~ 7.5kHz
Speed Drift with Temperature:
Max ± 1%
IDLE adjustment:
160 ± 20Hz ~ 95% of set speed
DROOP Regulation:
Minimum 15Hz ± 6Hz/ 1 AMP change
Maximum: 400Hz ± 75Hz/ 1 AMP change
Speed Trim Range:
± 200Hz (external 1kΩ )
AUX Input Sensitivity:
148Hz / 1V., ± 10Hz, Impedance 1MΩ
START FUEL Regulation:
160 ± 20Hz ~ 70% of set speed
RAMP Regulation Time:
1.5 ~ 20Sec.
Output Current at 10V:
20mA Max.
ENVIRONMENT:
Operating temperature range:
-40 ° C ~ 85 ° C
Working Humidity Range:
Maximum 95%
Stocking Temp:
-55 ~ 90 ° C
Shocking:
20-100Hz 500mm/Sec.
INPUT POWER SUPPLY:
Voltage:
12V or 24V DC Battery Systems
Grounding Pole:
Negative pole
Power Consumption:
50mA
Actuator Current Range(25° C)-(Inductive Load):
Min. 2.5A; Max. 10A continuous
MPU:
Signal:
0.5 ~ 120 RMS
Note: The performance parameters in the frequency when measuring 4000Hz
We provide speed controllers as follows:
Cummins:
3037359; 3044196; 3062322; 4914090;
4914091; 3032733; 3044195; 3098693.
