Home Generator Products Generator Parts AVR Vr6 AVR K65-12b AVR 125-10b AVR Avc63-12A

Generator Parts AVR Vr6 AVR K65-12b AVR 125-10b AVR Avc63-12A

Generator Parts AVR Vr6 AVR K65-12b AVR 125-10b AVR Avc63-12A
Price: US $ 115-130/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Money Gram,Western Union
The AVC63-12 regulate the level of excitation supplied to the field of a conventional, brushless, synchronous generator regulation is achieved by sensing the generator output voltage, converting it to a dc signal, and comparing the
Signal to a reference voltage. An error signal is developed and used to control the dc field power inorder to maintain a constant generator output. Each regulator includes frequency compensation with selectable slope, inversetime
Overexcitation shutdown, buildup circuitry, single- or three-phase voltage sensing, single- or three-phase shunt or permanent magnet generator (PMG) power input, parallel droop compensation, and an accessory input. The accessory
Input provides compatibility with devices such as var/power factor controllers or excitation limiters.

Main features:
1, 10.5% accuracy voltage regulation
2, 0.5% accuracy up to 20% THD (harmonic associated with 6 SCR loads)
3, Outputs of 63Vdc@12Adc and 125Vdc@10Adc from a PWM output stage
4, 1 or 2XWHz limitingoumper selectable)
5, Single- orthree-phase average sensingOumper selectable)
6, Paralleling input from 1 or 5A CT secondaries
7, Nominal sensing inputs of 120, 240, 50/60Hz or 400Hz
8, Power input from shunt connections or PMGs operating at 50 to 400Hz
9, Accessory input
10, Overexcitation shutdown
11, UL recognized
12, CSA certified
13, CE compliant
14, GOST-R certified #POCC US. ME05. B03392

Specifications:
Voltage Range
AVC63-12: 90 TO 153 Vac
AVC125-10: 180 to 264 Vac
Maximum Continuous Burden
AVC63-12: 1092
AVC125-10: 1750
See Options for Inrush Current Reduction Module information.

Sensing Input
Configuration: 1phase or 3-phase
Burden: <1 VA per phase
Voltage Range
Option A: 90 to 139 Vac
Option B: 180 to 264 Vac
Nominal Frequency
Option 1: 50 or 60 Hz
Option 2: 400 Hz
(See Table 2 for style/option information.
Accessory Input
Voltage Range: 13 Vdc
Power Output
Maximum Continuous Output
AVC63-12: 12 Adc at 63 Vdc
AVC125-10: 10 Adc at 125 Vdc
10 Second Forcing Output
AVC63-12: 24 Adc at 125 Vdc
AVC125-10: 20 Adc at 250 Vdc
Minimum Field Resistance
AVC63-12: 5.25
AVC125-10: 12.5

Regulation Accuracy: 10.5% of voltage setpoint, average response
Voltage Drift: 10.5% variation for a 400C (1040F) change
Response Time: <4 ms


Stamford: SX460, SX440 AS440, AS 480, MX341, MX321(or NUPART AVR)
Leroy Somer: R230, R438, R448, R449, R250, R450, R220
Marathon AVR: SE350
Marelli AVR: M16FA655A, M40FA640A
Mecc Alte AVR: SR7-2G(SR7), UVR6
Basler AVR: AVC 63-7, AVC 63-12, AVC 63-4, AVC63-4A
Cat. AVR: VR6
KUTAI AVR: EA06A, EA04C, EA05A, EA350, EA08A, EA15A, EA16
Brushless generator AVR: CF-8A(AVR 8A), CF-12A (GAVR 12A), CF-15A (GAVR 15A), GAVR20A
Brush/brushless generator AVR: YX2DA (10KW AVR, single and three phase); YX3DA(10KW three phase)
Brush generator AVR: 2KW AVR, 5KW AVR, 5KW Welder AVR, ST/STC AVR, GB160, GB170, DX-11, DX-5E, DX-05A
Generator automatic voltage regulator
Stamford
(nupart)
Leroy Somer Marathon Mecc-Alte
Engga
Kutai Marelli GAVR/CF/YH Others
Basler Cat.
SX460 R230 SE350 UVR6 EA06A M40FA640A GAVR 8A ST/STC  gb160 gb170
SX440 R250 SR7-2G EA04C AVR 12A DX-11    DX- 5E   DX-05A
AS440 R438 AVC63-4 WT-2  WT-3 EA05A GAVR 12A 2~3.5 kw avr
AS480 R448 AVC63-7 DAEWOO
DGC2007
EA350 M16FA655A AVR 15A 5~7.5 kw avr  186F
MX321 R449 AVC63-4A EA08A GAVR 15A 5~7.5 kw welder 186F
MX341 R450 AVC63-12 KUTAI
EG2000
EA16   VR6 GAVR 20A Lanzhou KXT-2WC avr
or plain R220 EA15A   10KW avr YX3DA 2DA
Cummins Parts
3044196 3044195 3030256 3062322 3098693 3037359 4913742 3408326
3408324 4914090 4914091 3655944 3034572 3408328 3408329 3032733    3971994
GAC Parts
ESD5500E ESD5550 ESD5570 ESD5111 ESD5120E ESD5522 ESD5520 ESD5522
ESD5131 ESD5525 ESD5221 ESD5330 MSP675 MSP676 MSP677   MSP678
MSP6732C MSP6729 MSP6731 MSP6714 MSP6719 MSP6724 M16 ADD 175 12V 24V
MSP3721 MSP6273 ADC225 12V 24V ADC120 12V 24V
DSE parts
5220 5210 5110 5120 501K 521K 701AS/MS 702AS/MS
703 704 705 710 EIM 630 465 12V EIM 630 466 24V
720 8610 7110 7120 7210 7220 7320  5510 7510  520  6020
Generator/Genset Charger
178A 186F 670 680 12~24V 5A 12~24V 3A 12/24V 6A~10A
Varistor and rectifier diode kit
Leroy Somer 330-25777 Stamford SSAYEC432 33025777 and SSAYEC432 Varistor
RSK1001 RSK2001 RSK5001 RSK6001 Stamford Varistor B Stamford Vaistor C
MXY MXG 40-12 MXY MXG 30-12 MXY MXG 50-12 MXY MXG 25-15
MXY MXG 40-15 MXY MXG 50-15 MXY MXG 70-15 MXY MXG 100-15
MXY MXG 110-15 MXY MXG 150-15 MXY MXG 200-15 Stamford BC series 25A : rsk1001
HC 4/5 series 40A : RSK5001  HC7/LV6 series :70A RSK6001 Stamford UC series 25A rsk2001

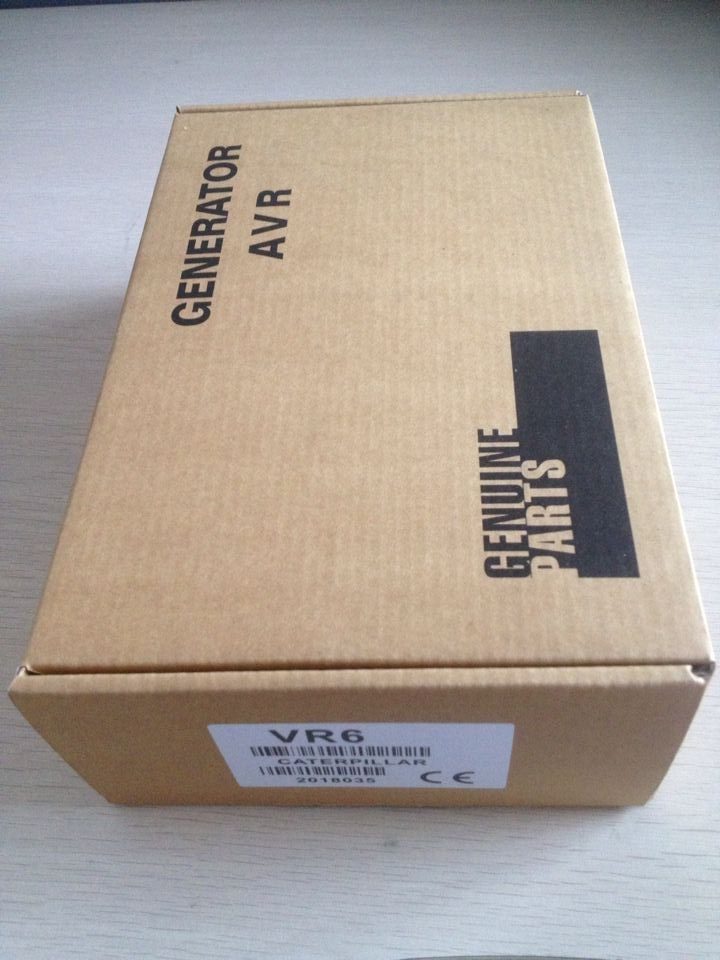

Prod Model: VR6
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Package: 1 PC/Plastic Bag, 1 Bag/Box
G.W\N.W: 1..4kg/1.25kg
Size: 26.5*17.5*9.2 Cm
Company Profile
Fujian YuXing Electronic Appliance Co., Ltd is a professional manufacturer on switching power supply, generator and generator parts, electronic household appliance, such as electric warm bag, health care equipment, such as massage device. There are two workshops. We own the domestic first-class level of technical content. Products have passed ISO9001-2008, 3C, CE certification.
It was established in the year of 2002. With registered capital of 6.16 million RMB, covering an area of 2, 000 square metres, over 50 employees, including 3 senior engineers; With the Finance Department, Personnel department production department, technical department, sales department and purchasing department and etc.
Our products are of good quality, reasonable price and good service, . In the process of rapid development, we always uphold the "integrity management, customer first, scientific and technological innovation, aiming at providing our customers with best products and service, and we are committed to working with customers at home and abroad for long-term mutually beneficial cooperation, good faith and work together to create brilliant!
