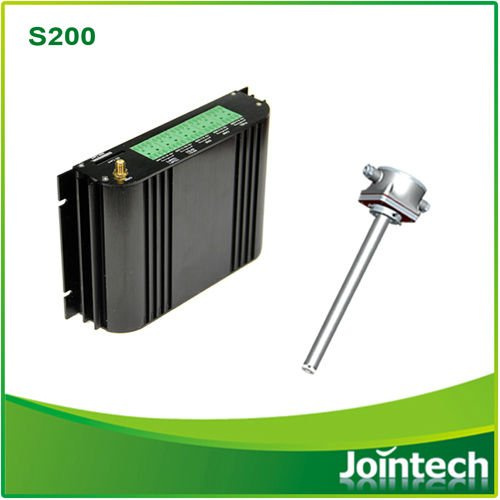

Generator Fuel Level Sensor to monitor the fuel consumption in real-time
Genset controller:
Remotely monitoring the working status of genset;
Enhance the security;
Prevent the fuel from unauthoried use / short supply;
Monitor the ambient enviornment;
G200 |
Description |
Basic Functions |
SMS/GPRS data transmission Mode |
GPRS real-time monitoring |
Report/Alarm |
Control: |
Fuel comsumption; Fuel refueling/draining, Fuel theft |
Gensets status (oil pressure, oil temperature, frequency, etc) |
AC Power Status |
Temperature & humidity in shelter/ambient enviornment |
live picture monitoring |
48V Backup battery status |
ON/OFF status of Air conditioner / security light/ aviation light |
Entrance/exit control in sites' gate and shelters |
SD Card for data storage |
External Devices |
Generator control panel |
RS485 fuel level sensor |
RS485 Camera |
RFID Device |
Temperature & humidity sensor |
I/0 Port |
11 digital signal input |
4 Analog signal output |
6 Digital signal output |
3 RS485 |
2 RS232 (not standard) |
2 I² C port |
Spec. |
Dimension |
176 x 116 x 44mm |
Weight |
Main Unit: 450g |
Working temperature |
-25~70° C |
Input voltage |
8 ~ 35V |
Current cusumption |
12V, 150mA; 24V, 80mA |
GSM |
850/900/1800/1900Mhz |
