. Professional generator OEM factor in guangzhou
. Stock available
. Cummins generator 250kVA
GS, SONCUP

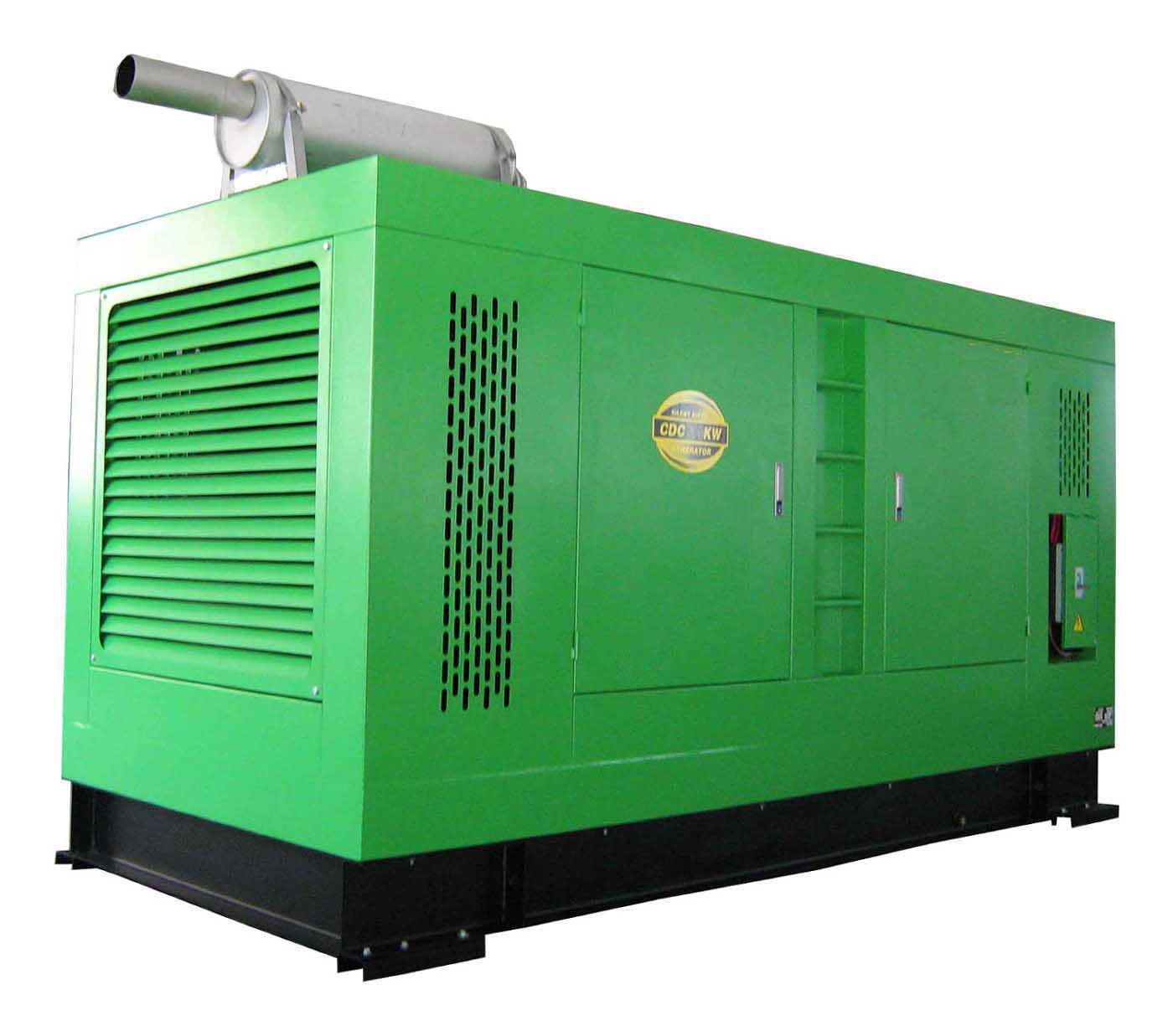

250kVA Cummins generator self start generator
CUMMINS OEM Factory in City GUANGZHOU
Cummins Generator (yangdong diesel generator) power range 10-1500kVA
Generator production range as follows:
Diesel Generator Set open type or silent type (soundproof type)
Generator Diesel Engine: Cummins, Perkins, Perkins Lovol, Deutz, WeiChai, Yangdong, Quanchai, ISUZU etc.
Generator with alternator: Stamford, Marathon, Leroy Somer etc.
Rated output: 5kVA - 2000kVA
Rated frequency 50/60 Hz
Rated voltage 230/400, 220/380, according to customers
Power factor: 0.8(lag)
Super Silent type Noise level at 7m ≤ 65DB
Excitation Mode: (Brushless) Self-excitation and constant voltage (AVR)
Starting system: Electric start 12V/24V
Protection System: High water temperature protection, Engine oil alarm, Over load Protection
Overfrequency protection, Emergency stop
Control System: Digital Control Panel; Meter Panel
10kVA, 60kVA, 100kVA, 150kVA, 200kVA, 250kVA, 300kVA, 600kVA, Available
Diesel Generator Set 250 KVA |
Generator
Specifications |
Generator Model |
CD-C200KW/250KVA |
Generator Prime Power |
200KVA/250KW |
Generator Standby Power |
220KW/275KVA |
Generator Engine Model |
DCEC cummins 6LTAA8.9-G2 4CYCLE |
Generator Alternator |
Stamford;Marathon;Leroy Somer;Faraday;Stamford copy |
Canopy for Choice |
Super silent;Silent;Open frame;Trailer |
Controller |
Smartgen or Deepsea |
Dimensions (L*W*H) |
3200*1500*2010(s)mm |
20FT/40HQFT Container |
counting for you |
Generator Warranty |
1800 hours or 1 year subject to the ealier one. |
Generator MOQ |
1PCS |
Certificate |
SGS;Cummins Authorized Factory;TUV;Soncap |
Payment |
T/T or Cash |
Please give detail needs in your inquiry, so that we can make power solutions for you.
MODEL |
CD-C200KW/250KVA |
Powered by Cummins Engine |
Prime Power (50HZ) |
200KW/250KVA |
Standby Power (50HZ) |
220kw/275KVA |
Power Factor |
0.8 (Lagging) |
Phase Wires |
3-phases 4-Wires |
Start Model |
Electric |
Protection |
Low oil-pressure, High water temperature,
Over-speed, Over-current |
Engine Model |
DCEC Cummins 6LTAA8.9-G2 4 Cycle |
Cylinders |
6 |
Cylinder Arrangement |
L |
Bore x Stroke(mm) |
114X 135 |
Compression Ratio |
16.0:1 |
Speed |
1500rpm |
Cooling Method |
Water – cooled |
Starting Method |
24V DC electrical start |
Full Load Diesel Consumption (L/H) |
42.4 |
Engine Displacement (L) |
4 |
Inspiration (L) |
Turbocharged Intercooled |
Lube Volume (L) |
14.3 |
Coolant Volume (L) |
25 |
Noise (Db) |
≤ 80 |
Alternator Model |
Newage Stamford UCI274K or Leadtech LTG274L |
Alternator Power |
200KW/250KVA Brushles with AVR |
Voltage |
380/220V,400/230V,415/240V,220/127V |
Protection |
IP23 |
Voltage Regulation |
±4% |
Insulation Class |
H |
Voltage Control |
AVR |
Net Weigh (KGS) |
2350 |
Dimensions (L x W x H) mm |
3200*1500*2010 |
40FT Container |
4 units |
Controller |
Smartgen 6110 or Deepsea 7320 |
Standard |
Muffler * 2PCS |
|
Battery 80A * 2 PCS |
Optional |
ATS (auto transfer switch) |
|
AMF(auto mains failure) |
|
Guangzhou Jiuan Mechanical & Electrical Co., Ltd. is a professional generator manufacturer and exporter with generator capacity from 2kVA to 2000kVA. Generator can be powered by Cummins, Perkins, ISUZU, KUBOTA and Chinese engine. Welcome to chose our products and don' T hesitate to contact us.
Our Diesel Generator Set Production Range is as follows:
* Engine (motor) for Choice
1. Cummins (USA ) 20kVA - 1500kVA
2. Perkins (UK) 8kVA-1000kVA
3. Deutz (Germany) 20kVA - 150kVA
4. ISUZU (Japanese) 20kVA - 40kVA
5. Kubota (Japanese) 7kVA-50kVA
6. Lovol (China) 20kVA - 150kVA
7. Yangdong (China) 8kVA - 40kVA
8. Weichai (China) 8kVA - 150kVA
9. Shanghai Engine
10. Yuchai Engine
* Canopy for Choice
1. Silent type (75- 80 dB(A) at 7 meters)
2. Super Silent type (65-70 dB(A) at 7 meters )
3. Open type
4. Trailer type (mobile)
5. Container Type
6. Parallel System
* Alternator for Choice
1. Stamford
2. Leroy Somer
3. Marathon
* Controller
1. Smartgen
2. Deepsea (UK Brand and imported)
