Product Description

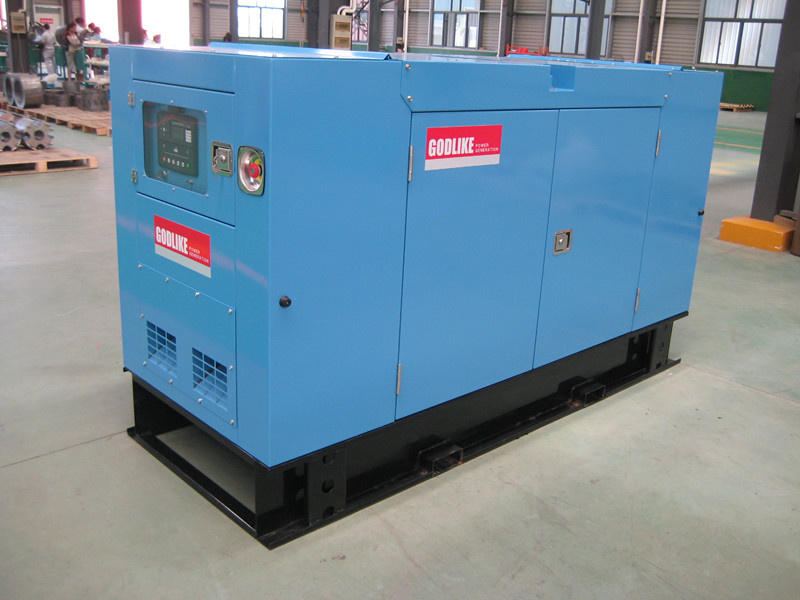

1.20kVA~1500kVA Power Generator/Silent Generator/Soundproof Generator
2. Powered by Cummins Engine
3. With Stamford type GODLIKE Alternators
4. With CHINT MCCB / ACB & Electronic Components
5. Electric Start with Battery
6. Base Integrated Fuel Tank
7. ATS, Deepsea / ComAp / Smartgen Controller
8. Comply with ISO8528/GB2820
Cummins Diesel Generators Power From 20kVA up to 1500kVA, with compacted structure and best configuration.
OEM CUMMINS Powered Diesel Generator Sets with its high reliability, low use and maintenance cost win the loyalty of many customers in the field of Army, transportation engineering system and mine industries. Established in 1919, headquartered in Columbus, Indiana, (USA) Cummins Inc. Serves customers in more than 160 countries and territories through its network of 680 Company-owned and independent distributor locations and more than 5, 000 dealer locations. As the largest foreign engine investors of China, Cummins possess Chongqing Cummins Engine Co., Ltd (produce M, N, K series engine) and Dongfeng Cummins Engine Co., Ltd (produce B, C, L series engine ) and produce CUMMINS engines with globally uniform quality standards.
Control Systems
Standard control panel is the basic configure for normally operation and usage. The advantages of this panel are easy operation, aomprehensive function and reliable protection and so on. There are indicating gauges, lamps, transfer switches and emergency stop button, etc. The control panel wil stop the whole generator set and alarm as well when malfunction appears.
LED Automatic Control Panel is a kind of intelligent controller with LED displaying the operating mode of the controller and the running state of the generator sets. It can configure the control procedure and protection parameter of the generator set, and completely satisfied the automatic controlling requirement of the generator sets for the user or factory.
LCD Automatic Control Panel is the configuration for nobody on duty controlling generator sets. This kind of panel adopts module control system, with large LCD screen to show the menu. The module can receive output signal from ATS and realize automatic start and stop the generator sets.
ATS(Fully Automatic) is the standard configure of emergent power system. It detects the voltage and
Frequency of main power timely. While there is something wrong, such as high voltage, low voltage, phase missing, electricity cutting off, etc., it will signal to start the generator set automatically;
While main power resumes balanced, it controls the generator set to shut down after cooled.
Engine
Heavy duty diesel engine
Four stroke, water cooled
12V and 24V stater and charge alternator
Cooling radiator and fan
Maintenance free battery including ract and cable
Flexible fuel connection hoses and manual oil sump drain valve
Exhaust silencer
Alternator
Brushless, single bearing, flexible disc
Insulation class: H
Protection class: IP23
Self-exciting and Self-regulation
Canopy
All canopy designed with modular principles
All metal canopy parts the surfaces are sprayed with plastics, and it may prevent erosions
Soundproof design ensure that the noise level be controlled in small scope
Convenient to lift and move
Easy to maintenance and operate
Base Frame
Base frame including position for forklift and crane
Integral fuel tank
Daily fuel tank continuously supply for 8-24 hours
Fuel tank easy to maintain and clean
Anti-vibration pads are flexed between engine and alternator.
Control System
Control, monitor and protect the Generator Set including:
High water temperature
Low oil pressure
Over and under speed
Over current
Under/Over generator voltage
Start and stop failure
Low and high battery voltage
Charge fail
Emergency stop
GenSet Model |
JCW160 |
Continuous Output |
160KW / 200KVA |
Engine Brand & Model |
Cummins 6CTAA8.3-G2 |
Type |
Water-cooled, 4-stroke, Natural Engine |
No. of cylinder |
6 |
Bore x Stroke |
114x135mm |
Engine power |
183kw |
Compression ratio |
18: 1 |
Fuel consumption |
≤ 208g/kw. h |
Displacement |
8.3L |
Engine speed |
1500rpm |
Steady Speed Drop |
≤ 1% |
Lubricant Capacity |
1L |
Coolant Capacity |
12.3L Engine Only |
Starting system |
D. C. 24V electric start |
Cooling way |
Positive Water Cooling Cycle |
Alternator Brand & Model |
Stamford Type JDG274H |
Frequency |
50HZ |
Voltage |
380/220V |
No. of phases |
3 |
Excitation |
brushless |
Insulation class |
H |
Power factor |
0.8 |
Protection Grade |
IP23 |
Altitude |
≤ 1000m |
Voltage Regulation, Steady State |
≤ ± 1% |
Control Panel - Standard equipped or LCD digital control module |
Options: ATS, Base Fuel Tank |
Established in Year 2006, GODLIKE POWER is headquartered in Yangzhou city, Jiangsu Province, only 2.5 hrs far from Shanghai or Nanjing. It has grown into a leading manufacture of diesel generators&alternators in China and ranked amongst the top manufacturers worldwide.
Motivated by our slogan to provide "Excellent Power Solution", Godlike Power focuses on design, manufacture, sales, installation and service of diesel generators&alternators. Our diesel generators range from 8 kVA to 2500 kVA, equipped with Perkins, Cummins, Mitsubishi, Doosan, Deutz, MTU etc and equipped with our alternator, Stamford, Leroy-Somer etc alternators as required. Our Stamford type brushless alternators range from 8kVA to 1250kVA, 50Hz/60Hz option, rpm 1500-1800, voltage 110V-690V, class H, IP23, all easily coupled with Industrial & Marine, Diesel & Gasoline engines.
GODLIKE people treat Quality and Service as enterprise's life, and has competitive advantages.
GODLIKE generators are being exported to Europe, America, Southeast Asia, the Middle East, South Africa, and many other countries and regions, obtaining great corporate reputation and long-terms partner cooperations.
Warmly welcome to GODLIKE.
