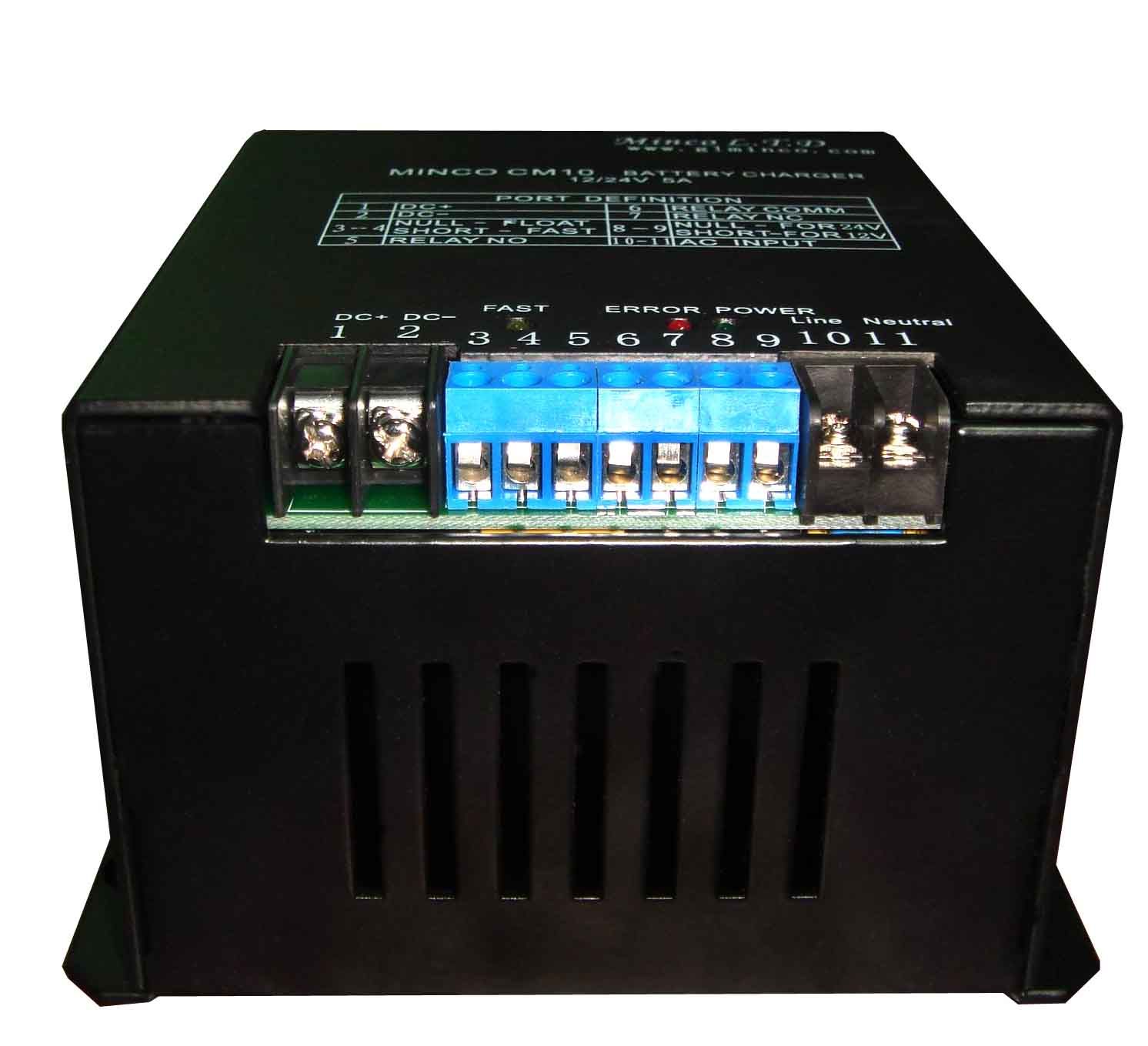

The Generator battery charger has both adjusting the voltage and limiting current automatically features. The voltage isolation circuit and efficient ring transformer ensure the high reliability, the charger adopts the high frequency on-off control technic to prevent the output and leakage of current, therefore the charger ensures the battery is in a fully charged condition. The charger is designed for permanent connection to the battery, float charge without overcharge. When the charger is used for the crank battery of engine, it can remain operating during the engine cranking and running.
The charger features a boost charge facility to enable rapid recharging of discharged battery, when the boost mode is selected, the charger output will rise by 5V.
If the charger is inadvertently reverse connected to the battery then the fuse on the circuit board will rupture. It should be replaced with a 5A quick blow type. (hint: Even if the fuse has ruptured, the 'power' lamp remains light on. )
FEATURES
1. Float charger for standby battery
2. Charge for the lead acid\nickel chromium type battery
3. Short circuit and over-current protections
4. Output voltage 12V or 24V(specify on ordering)
STANDARD
1. Transformer insulation: NF EN 60742
2. Electric protection: NF EN 60950
3. EMC: IEC801.3 LEVEL3, IEC801.5 LEVEL4
SPECIFICATION
1. Input: 220VAC(-10%, +15%), 50Hz, single-phase
2. Output: 12VDC, 2A~3A or 24VDC, 2A~3A, adjusting automatically
3. Voltage-stabilizing accuracy: 0.5%(the input voltage change from -10% to +15%)
4. Operating temperature range: -10 to +50º C
5. Case dimension: 135× 150× 105 mm(WXHXD)
6. Installation dimension: 100× 138mm(WXH), ¢ 3.5
