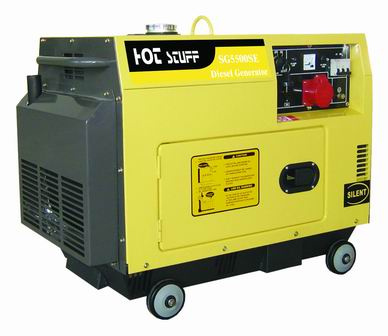

5KW air-cooled diesel silent generator, old type design. With voltmeter, AC output socket, AC air breaker, oil warning lamp, oil alert. Optional functions: DC air breaker, timermeter, three phase voltage, current meter, ATS, remote control, welding.
|
Rated frequency(Hz) |
50 60 |
|
Rated voltage(V) |
230 240/120 |
|
Rated current(A) |
18.3 20.8/41.7 |
|
Rated output power(KW) |
4.2 5.0 |
|
Max output power(KW) |
5 5.5 |
|
Rated rotation speed(rpm) |
3000 3600 |
|
DC output |
12V 8.3A |
|
Power factor(cos) |
1 |
|
Phase number |
Single phase |
|
Noise level[dB(A)@ 7m ] |
70-74 |
|
Overall dimension(L× W× H)[mm(in)] |
910× 530× 740(35.82× 20.87× 29.13) |
|
Dry weight[kg(lbs. )] |
165(363) |
|
Structure type |
Silent type |
|
Coupling mode |
Rigid couping by rotor drive shaft |
|
Engine model |
SR186FE |
|
Engine type |
Single cylinder, 4-stroke, air-cooled, |
|
direct injection, diesel engine |
|
|
|
Displacement[ml(cu. in)] |
406(24.78) |
|
Compression ratio |
19: 01 |
|
Rated power[kW(Hp)/rpm] |
5.7(7.75)/3000 6.3(8.57)/3600 |
|
Starting system |
12V electric starter |
|
Rotation direction(View from flywheel) |
Clockwise |
|
Fuel |
0#(summer)-10#(winter) light diesel oil |
|
Lube |
SAE10W30(above CC grade) |
|
Low oil pressure alert system |
With |
|
AUTOMATIC SYSTEM |
WITHATS |
