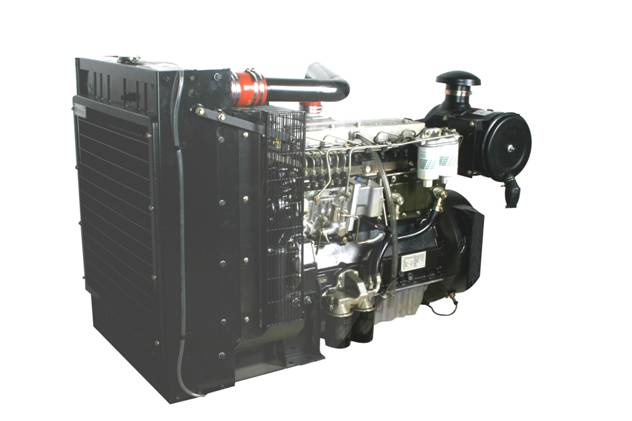

Price list of 1000 series diesel engines for generating set
Model 1003G 1003TG 1004G 1004TG 1006TG1A 1006TG2A 1006TAG
Cylinder number 3 3 4 4 6 6 6
Type In line, vertical, water cooled, four stroke, dry liner, direct injection
Induction Natural Turbocharged Natural Turbocharged Turbocharged/intercooled
Bore*Stroke(mm) 100*127
Displacement(L) 3 3.99 5.99
Lubricating system capacity(L) 7.48-8.68 8.1 8.5 16.1 16.1 19
Cooling system capacity(L) 21 22.2 27.7 27.7 37.22
Rated power (kW) 1500r/min 30 44 44 72.3 92.7 102 134
1800r/min 36 55 48 83.2 107.3 119.2 147
Continuous power(kW) 1500r/min 28 40 40 65.7 84.3 92.3 121
1800r/min 33 50 44 75.6 97.6 108.4 134
Electrical system 24V(12V optional)
Governing Mechanical Governing Electronic Governing
Packing dimension(mm) 1350*830*1045 1720*910*1220(1570*910*1225 Air filter alone package)
Gross weight(KG) 480 485 610 620 855 855 870
QTY. /20' 22 22 22 22 6 6 6
QTY/40' 44 44 42 42 26\28(air filter sperate package) 26\28(air filter sperate package) 26\28(air filter sperate package)
Unit price(RMB) FOB Tianjin 18500 19800 23500 25000 34500 35000 43800
Remark:
1. Sae3 flywheel housing, 10"/11-1/2"flywheel, 24/12 electrical system.
2. Payment: Cash advance.
Tianjin Lovol Engines Co., Ltd. (hereinafter referred to as Lovol Engines) is a modernization manufacturing enterprise of engines, which was established on the basis of Sino-British Joint-Venture Perkins Engines (Tianjin) Co., Ltd., after new strategic partners are introduced, scale of assets is expanded, production capacity is raised, and product technology is upgraded in order to adapt internationalization of engine products.
Tianjin Lovol Engines Co., Ltd. Occupied the land of 88, 000m2, workshop occupied 26, 000m2, seven modernized production lines have been purchased from the UK, the USA, Germany, France, etc., and the production base for 60, 000 sets of diesel engines has been established.
The engines of Lovol Engines brand being produced and sold by Lovol Engines are classical engines with European origin and modern leading technology, which are designed and developed by taken British Perkins manufacturing experience and technology of leading in the world for more than seventy years, aiming at the demands of global engine field. Lovol engines are high-tech engine products with powerful dynamic force, environmental protection, fuel-saving and fine manufacture, which come down in one continuous line of European technology. Currently, main products of the company include two series of Lovol Feichi and Lovol 1000, more than 80 varieties, more than 200 kinds of products, power range of the products is in 42~170KW, speed range is 1500-2800rpm, these products can be used as a dynamic force of the equipments, such as trucks, passenger cars, agricultural machines, construction machinery, loading/unloading machinery, generating sets, and so on.
Looking back the flourishing year of 2007, both output and sales volume created new high point: In 2007, the sales income in the whole year reached 716 million yuan, an increase of 58% as compared with the same period of last year; Output in the whole year reached 35827 sets, an increase of 57.3%; Sales volume of the whole year reached 33901 sets, an increase of 54.3%. On the occasion of the flourishing not being died away and heart-stirring ardor still being remained, we welcome in the festive 2008 Olympic Chinese-Year.
