Home Generator Products Generating Electricity Biomass Boiler Steam Turbine

Generating Electricity Biomass Boiler Steam Turbine

Generating Electricity Biomass Boiler Steam Turbine
Price: US $ 200000-800000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T,D/P,Paypal,Money Gram

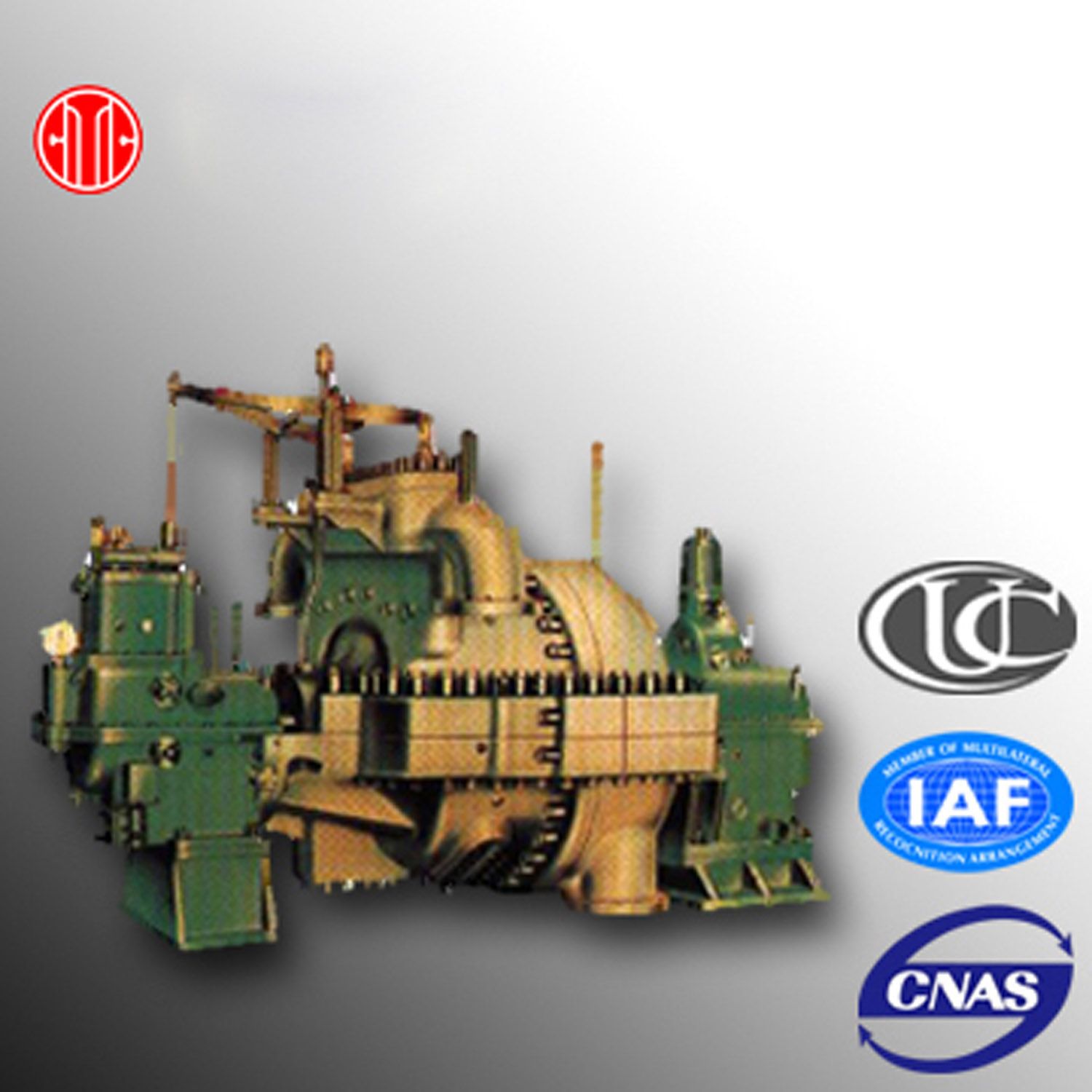

Generating Electricity Biomass Boiler Steam Turbine

Specification
Steam turbine type: Wood-burning Steam Turbine
Range of rated power: 1000KW -60000KW
Steam flow rate: 9 - 317 T/H
Range of inlet pressure: 0.9 MPa - 8.89 MPa
Inlet steam temperature: 260º C-535º C
Exhaust Pressure: 0.0047 MPa- 0.98 MPa
Range of output rotational speed: 5600/3000 r/min

Advantage:
1) A steam turbine and generator research & development center with a history over 40 years.
2) All the parts including shafts, blades, wheels and castings are manufactured in house to ensure the quality and guarantee the lead time.
3) Turn-key service, including project design, production, construction, installation, and adjustment, is provided to help customers successfully accomplish projects with least concentration.
4) Low steam consumption rate, high efficiency, long operating life.
5) Strong overload capacity, easy to operate, safety guaranteed.
6) Three-dimensional designed by CAD, CAE, CAM.
7) Manufacturing customized products.

Customers we have served
1. Thailand Palm Oil Association
2. Japan Mitsubishi Company
3. Thailand Beststair Company
4. Thailand CP Group
5. Thailand Sakon Nakhon Biomass Power Plant
6. Philippines Lucky PPH International
7. Philippines MR VALE PALILIO
More and more customers are using our steam turbine at present.

Application Field:
1) Cogeneration: high thermal efficiency, widely used in brewing, sugar refining, pharmaceutical, textile, printing and dyeing, chemical fertilizer, chemical, regional heating and other industries.
2) Waste heat and energy utilization: steel blast furnace gas, metallurgy sintering waste heat, waste heat at the cement kiln head and inlet, glass kiln waste heat, chemical kiln waste heat, coking waste heat, gas turbine waste heat and other waste heat and waste energy.
3) Biomass power generation: wood chip, straw, leaves, husks, furfural residue, bagasse, palm shell and ordinary trash, etc. can be used for power generation.
4) Other fields: low concentration mine gas, coal slime, saturated steam, etc.
5) Industrial drives: energy-saving substitute for electric motor. Widely applied in the petrochemical industry, directly driven air blowers, compressors, and other highly energy-intensive equipment.

Shanghai Brilliance General Equipment Co., Ltd. is the foreign trade subsidiary of CITIC HIC Luoyang Generating Equipment Co., Ltd...CITIC HIC Luoyang Generating Equipment Co., Ltd. was established in 1971 with strong research and design capabilities. Specializing in manufacturing the whole set steam turbine and generator set, we have passed the ISO 9001 certification. Now, we specialize in the researching and manufacturing small and medium-sized power generation steam turbine and dragging-type steam turbine, and offer EPC service. It's widely served for many different industries like Textile, Chemical, Paper making, Food & Sugar, ects. The company mainly engages in the development of various types of waste heat energy project. With excellent reputation and strong capability, our steam turbines have been exported globally, including Southeast Asia, Middle East, South America, Africa and many other regions, etc. Our persistent goal is to offer green energy to the world.

Our Service:
1) 18 months warranty after the delivery
2) Arriving at your construction site within 7 days after being notified.
3) After-sales service beyond warranty period to ensure the long-term safe operation of the unit.
4) Regular return visit to our clients to follow up with all the service.
5) All the spare parts will be reserved in stock to meet the instant demands of our customers.

Condensing Steam Turbine
ModelRated output KWInlet Steam ParameterExhaust Pressure MPa(a)Rated Speed (r/min)
Pressure MPa(a)Temperature (degree)
N110000.45-3.34180-4350.00945600/3000
N330001.57-4.35390-5350.0075600/3000
N4.545001.57-8.89390-5350.0073000
N660001.57-8.89390-5350.0073000
N7.575001.57-8.89390-5350.0073000
N990001.57-8.89390-5350.0073000
N12120002.3-8.89390-5350.0063000
N15150002.3-8.89390-5350.0063000
N18180002.3-8.89390-5350.0063000
N20200002.3-8.89390-5350.0063000
N25250002.3-8.89390-5350.00473000
N30300002.3-8.89390-5350.00473000
N40400003.5-8.89430-5350.00473000
N50500003.5-8.89430-5350.00473000

Prod Model: Steam Turbine
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product: Steam Turbine
Rated Power: 1000kw -60000kw
Steam Flow Rate: 9 - 317 T/H
Inlet Steam Pressure: 0.9 MPa - 8.89 MPa
Inlet Steam Temperature: 260o C-535o C
Exhaust Pressure: 0.0047 MPa- 0.98 MPa
Speed: 5600/3000 (R/Min)
Output Voltage: 10500V
Frequency Of Motor: 50Hz, 60Hz, or on Request
Gas Source: Steam
Power: 1-60MW
Shanghai Brilliance General Equipment Co., Ltd. is the foreign trade subsidiary of CITIC HIC Luoyang Generating Equipment Co., Ltd...CITIC HIC Luoyang Generating Equipment Co., Ltd. Was established in 1971 with strong research and design capabilities as well as advanced machining center and experimental equipment. Specializing in manufacturing the whole set steam turbine and generator set, we have passed the ISO 9001 certification.

There are over 760 employees, including 151 technical engineers and 22 technicians combined with over 40 foreign trade staffs in Shanghai subsidiary. There are 500 units main processing equipment, with 60 precision equipments; More than 20 CNC equipments; And 4 blade machining centers. All of these guarantee our quality-control capability in every production process.

For over 40 years, our steam turbines have been sold all over the country, and exported to Asia, Africa, South America, and Eastern Europe.

Now, we specialize in the researching and manufacturing power generation steam turbine and dragging-type steam turbine ranges 1-60 MW, including Condensing, Back Pressure, Extraction Condensing types, serving for many different industries like Textile, Chemical, Paper making, Food & Sugar, ects. The company mainly engages in the development of various types of waste heat energy project.

We can provide turnkey service including project design, production, construction, installation, and adjustment, which helps our customers accomplish the whole project with least time and concentration. 18months warranty is guaranteed with in-time after service.

We are dedicated to serving our customers with our best effort!
