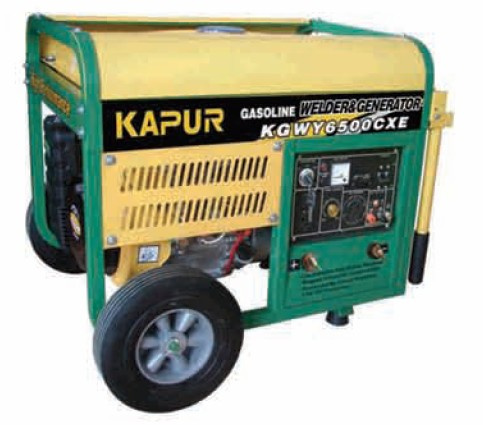

MODEL KGWY6500CXE
RATED FREUENCY: 50/60
RATED OUTPUT: 4.5KW
PHASE: Single / three
RATED FACTOR: 1/0.8
RATED VOLTAGE: 220(230), 110/220(120/240)220/380(230/400)
RATED DC OUTPUT: 12/8.3 single
STARTING SYSTEM: Recoil / electric starter
FUEL TANK CAPACITY: 12.5
OPERATING HOUR: 5.5
ENGINE MODEL: KG190F(E)G
ENGINE TYPE: Vertical single-cylingder 4-stroke air-cooled
ENGINE OUTPUT: 5.7/6.3
BORE*STROKE: 90*64
ALTERNATOR TYPE: 2-pole brush(less) self-excitation
WELDING OUTPUT RATIO: 60%
RATED WELDING CURRENT: 180
ON-LOAD WELDING CONTINUOUS POWER RATE: 60%
WELDING OPERATION VOLTAGE: 30-36
WELDING CURRENT ADJUSTABLE RANGE: 80-210
NET WEIGHT/GROSS WEIGHT: 93/98(E)
DIMENSION: 710*530*545
Fuzhou kapur power equipment Co., Ltd. is a professional manufacturer of diesel/gasoline engines and generators and water pumps and air compressors and other power equipments. We have a 8000m2 workshop and 180 staff in our factory and can produce 300000 sets of equipments every year. Except ISO9000, kapur also applied CE, EPA, soncap certificates for the main products. Our 90% products are exported to America, Europe and other area in the world.
