Our factory is a Sino-US joint venture specializing in manufacturing and supplying diesel generating sets, gasoline generators, air cooled engines, diesel water pumps, gasoline water pumps, gasoline engines, alternators, and etc.
We strive to offer our customers the most competitive prices without sacrificing any aspect of the quality. Working in partnership with our customers, we take care of their demanding requirements of competitive pricing, high quality, on-time delivery and environmental friendly attention based on long-term strategic cooperation relationship.
Our core philosophy is to develop and maintain long-term relationship based on honesty, open communication, and loyalty.
| Specifications |
|---|

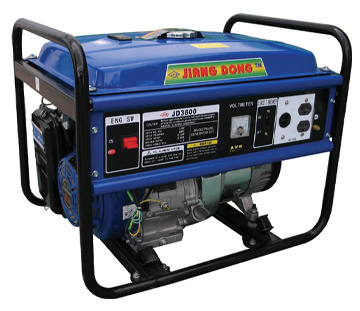

| GENERATOR | Model | JD3800 | JD4000 | JD5000 | JD6500 |
|---|
| Type | Brush,single-phase |
|---|
| Voltage regulat | AVR |
|---|
| Frequency (Hz) | 50/60 | 50/60 | 50/60 | 50/60 |
|---|
| Max.AC Output(KVA) | 3.3/3.8 | 3.8/4.0 | 4.5/5.0 | 5.5/6.5 |
|---|
| Rated AC Voltage (V) | 110/120/220/230/240 |
|---|
| Rated AC Output(KVA) | 3.0/3.5 | 3.5/3.7 | 4.0/4.5 | 5.0/5.5 |
|---|
| Power factor | COS φ=1 |
|---|
| ENGINE | Model | JF240 | JF270 | JF340 | JF390 |
|---|
| Type | OHV Forced Air-cooled 4-Stroke |
|---|
| Displacement(ml) | 242 | 270 | 337 | 389 |
|---|
| Max.output(HP/rpm) | 8.0/3600 | 9.0/3600 | 11/3600 | 13/3600 |
|---|
| Fuel | Unleaded gasoline |
|---|
| Fuel tank capacity(L) | 25 |
|---|
| Continuous operating hours(h) | 12.5 | 11 | 10 | 9 |
|---|
| Oil | SF or Higher grade |
|---|
| Oil capacity(L) | 1.1 |
|---|
| lgnition systen | T.C.l |
|---|
| starting system | Recoil and hand-operated/Electric start |
|---|
| Operating noise level(7m)dB(A) | 72 |
|---|
| STANDARD FEATURES | Fuel gauge | 0 | 0 | 0 | 0 |
|---|
| Voltmeter | 0 | 0 | 0 | 0 |
|---|
| AC Circuit breaker | 0 | 0 | 0 | 0 |
|---|
| Engine switch | 0 | 0 | 0 | 0 |
|---|
| AC Socket | 0 | 0 | 0 | 0 |
|---|
| OPTIONAL FEATURES | DC Output | + | + | + | + |
|---|
| DC Circuit breaker | + | + | + | + |
|---|
| Pilot light | + | + | + | + |
|---|
| PACKAGE DIMENSION | Dimensions L×W×H(mm×mm×mm) | 700×525×580 |
|---|
| Gross weight(kg) | 69 | 74 | 77.5 | 86 |
|---|
| Net weight(kg) | 65 | 70 | 73.5 | 82 |
|---|
| 20/40FT unit | 140/460 |
|---|
Our factory has many years experience in the manufacture and supply of the jinma tractor, dongfeng tractor,Implements, bulldozer, muck trucks and others kinds of farm and conservation machineries.
We fully understand the needs of the industry and are constantly researching and developing new products as the request of our customers. An ever increasing number of our machines are designed in Europe and built in China, we have long-term strategy on marketing and have well sales network in North America and Europe as well as other countries, so you can be confident that you are dealing with the manufacturer for machines and spare parts. Customer service is core to our business philosophy and we endeavour to ensure that each and every enjoys both the initial experience of buying machines from us and also the ongoing service from our expert staff.
