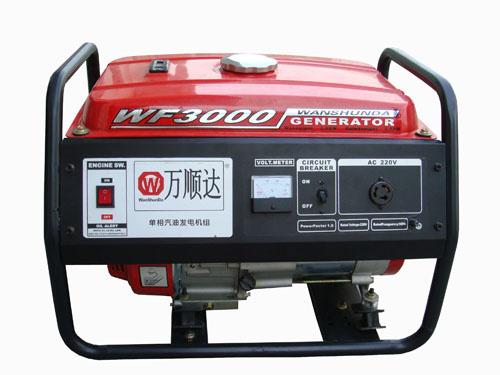

Wanshunda generator conforms to the quality control system ISO9001: 2000 standard, has been awarded the CE safety certification by CCQS as well as the honor of the "Top ten brand that satisfied by the customer for the quality". The gasoline generator have branded new design, popular appearance, improved by the high technology, low noise, low fuel comsumption, good function, long service life, environment protection, adapted over-current protcetor or warning system, it can break electric current or stop working automatically when it abnormal, overloading or in the urgent situation, and all the contral buttons are on the contral board, convenient to operate and maintenance, save time and safety!
|
Generator |
Model |
WF3000 |
|
Rated voltage ( V ) |
110 , 120 , 220 , 230 , 240 , 220/110 , 230/115 , 240/120 (Single phase) |
|
Rated current ( A ) |
12 |
|
Frequency( HZ ) |
50/60 |
|
Rated power ( W ) |
2500 |
|
Max. power ( W ) |
2800 |
|
Power factor |
1 |
|
Voltage regulate |
Automatic voltage regulator |
|
Engine |
Engine style |
WSD168FBD |
|
Bore ×Stroke(mm) |
68x54 |
|
Compression ratio |
8.5:1 |
|
Ignition system |
Induction ignition |
|
Starting system |
Recoil |
|
Fuel tank capacity ( L ) |
15 |
|
Lubricant capacity( L ) |
0.6 |
|
Type |
OHV25°tilt, single cylinder, forced air cooling, 4-stroke |
|
Dimensions |
Packing dimensions (mm) |
630x470x500 |
|
Net weight ( kg ) |
48 |
|
Gross weight ( kg ) |
51 |
|
Standard features |
Large air filter, large muffler , fuel oil Indication meter , automatic voltage regulator , lubricant oil warning system , air switch |
|
Optional features |
Four-wheel group |
|
20FT(sets) |
185 |
Guangdong Wanshunda Machinery & Electronic Co., Ltd., is located at Baiyun District, Guangzhou, China, is not only a company specializes in researching, developing and manufacturing Wanshunda engines, small size gasoline and diesel generating sets, arc welding generators, water pumps, but also one of the two manufacturers in Guangdong Province awarded the National Production Licence of Industrial Products in the sector of gas engine, which is approved by the General Administration of Quality Supervision, Inspection and Quarantine of the P. R. China. The company also has been awarded Outstanding enterprise of China, Enterprise of observing contract and valuing credit, Enterprise of observing law and valuing credit, Grade AAA enterprise for quality and service, "Top enterprise on broad" that listed on the demonstration roll of the high-quality brand protecting.
Wanshunda generator conforms to the quality control system ISO9001: 2000 standard, has been awarded the CE safety certification by CCQS as well as the honor of the "Top ten brand that satisfied by the customer for the quality". The company can satisfy market demands at all levels by supplying full lines of products, adopting advanced technology, providing reliable quality and tailor-made after sales. The sales network of the company spreads all over the country and the products found its popularity within many industries: Telecommunication, Financial sector, Oil field, Mine, Transportation, Military and has exported to the countries and regions of South East Aisa, Australia, Europe, Africa and Middle East, etc.
