240V/50Hz
Rated Power: 650W
Max Power: 800W
Rated Current: 3.0A
Fuel Tank: 4.2L
2.0HP(G1E45F) 2 Stroke, Single cylinder, Air cooled gasoline engine
Gas to Oil: 50: 1
|

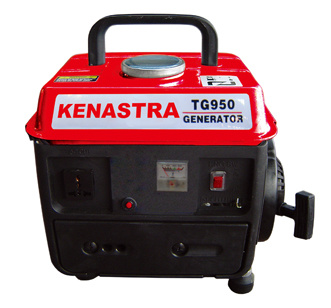

TG950 |
|
Genertor Set |
Description |
2 Stroke 950 Generator |
|
Rated Voltage |
240 V |
120 V |
|
Rated Frequency |
50 Hz |
60 Hz |
|
Rated Power |
650 W |
800 W |
|
Max Power |
800 W |
900 W |
|
Rated Current |
3.0 A |
6.7 A |
|
DC Output |
12V 8A(Optional) |
|
Rated Speed |
3000 RPM |
3600 RPM |
|
Phase |
Single Phase |
|
Power Factor(cosφ ) |
1.0 |
|
Type |
Brushless |
|
Fuel Tank Capacity |
4.2 Liters |
1.1 Gallons |
|
Run Time |
7.0 Hours |
5.2 Hours |
|
Structure |
Portable |
|
Engine |
Model |
G1E45F |
|
Max Power |
1.5 KW(2.0 HP)/3600 rpm |
|
Bore X Stroke |
45 mm X 40 mm |
|
Displacement |
63 cc |
|
Compression Rate |
7: 1 |
|
Starting System |
Recoil Start |
|
Ignition System |
C. D. I. |
|
Type |
2 Stroke, Single cylinder, Air cooled |
|
Fuel |
Automobile Unleaded Gasoline |
|
Lube |
ERC 2 stroke engine oil |
|
Lubricating System |
Gas to Oil: 50: 1 |
|
Dimension(LXWXH) |
375X315X330 mm |
|
N. W/G. W |
20.5/22.5 kgs |
|
Piece per Carton |
1 pc/ctn |
|
Container Loading Qty 20GP |
750 |
|
Container Loading Qty 40HQ |
1680 |
JWB International (Shanghai) Co., Ltd is located in Pudong, Shanghai, China. Belong to JWB Group; We specialize in importing, exporting, R&D, manufacturing and servicing all kinds of machineries, hardware, tools, and home appliances.
JWB sales network includes most of the world. From USA, South America, Australia, Middle East, Africa, to Europe. We commit ourselves to present our own products under our several own brands with highest design and quality.
JWB International (Shanghai) Co., Ltd hopes to develop future with you with our professional team of sales, QA & QC, and other services. We are more than sure that we can find some way to cooperate together.
