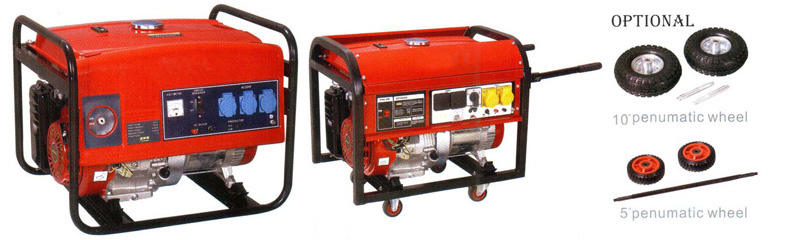

Gasoline Generator Sets
| Price: |
Negotiable |
| Min Order: |
1 |
1. For emergency cover during mains power failure.
2. Fitted automatic voltage regulator for superb voltage.
3.12V DC battery charging facility.
4. Over load protection for safe running.
5. Low oil level warning indicator.
6. Different control panel available.
7. Round & square frame available.
Model
| EP-1500
| EP-2500
| EP-3000
| EP-5000
| EP-6500
|
Phase
| Single phase
|
Max. AC output (W)
| 1500
| 2200
| 2700
| 4500
| 5500
|
Rated output (W)
| 1200
| 2000
| 2500
| 4000
| 5000
|
Voltage (V)
| 110 / 220 / 230 / 240
|
Frequency (HZ)
| 50 / 60
|
Engine type
| JL 154F
| JL 168F -1
| JL 168F -1
| JL 182F
| JL 188F
|
Engine mode
| 4-stroke, single cylinder, forced air cooling
|
Engine max. output(HP)
| 2.4
| 6.5
| 6.5
| 11
| 13
|
Displacement (cc)
| 87
| 196
| 196
| 337
| 389
|
Ignition system
| Transistorized magneto ignition
|
Starting system
| Recoil start
|
Oil volume
| 0.45
| 0.6
| 0.6
| 1.1
| 1.1
|
Fuel consumption(L/kw. h)
| 0.83
| 1.22
| 1.22
| 2.45
| 2.7
|
Charge voltage (V)
| 12
|
DC output (V)
| 12V / 5.8A
| 12V / 8.3A
| 12V / 8.3A
| 12V / 8.3A
| 12V / 8.3A
|
Fuel volume (L)
| 11.6
| 15
| 15
| 25
| 25
|
Continue run time (H)
| 14
| 13
| 11
| 10
| 9
|
Noise(away from 7m )db(A)
| 60
| 65
| 65
| 70
| 74
|
L x W x H (mm)
| 460x380x365
| 605x445x455
| 605x445x455
| 700x530x555
| 700x530x555
|
Net weight (kg)
| 24
| 40
| 42
| 74
| 78
|
With excellent quality and favourable price, Top Bridge industry Co. Ltd(T-B) is specialized in offering the most complete welding products with large stock and quick delivery in shanghai, china.
Mainly products are various: Welding machines, welding consumables, welding & cutting tools, accessories, welding glove and helmet with internation certification of ISO 9001: 2000, which face to Europe, South America, U. S. A., Africa etc.
For welding machines: Interver DC welding machines, TIG, MIG, MMA, MAG, BX1, CD-battery charger, Plasma cutting machines with CE, CCC certification.
For welding consumables: Mild steel electrodes, cellulose electrodes, high toughness electrodes, low alloy steel electrodes, hardfacing electrodes, stainless steel electrodes, low temperature steel electrodes, Mo and Cr-Mo heat resistant steel electrodes, cast iron electrodes; Ni and Ni alloy electrodes; Wires suitable for MAG, MIG, TIG, SAW and FCW welding are approved by the China Classification Society (CCS), Lloyd's Register of Shipping (LR), American Bureau of Shipping (ABS), Bureau Veritas (BV), Germanischer Lloyd (GL), Det Norske Veritas (DNV), Nippon Kaiji Kyokai (NK) as well as Canadian Welding Bureau (CWB). Lloyd's Register Quality Assurance (LRQA).
Based on high technique and achieved reputation, Top-Bridge is developing year by year, With our best sincerity to cooperation with both new and old customers to weld a splendid future.
