DG CL(E) Series: 2kw-5kw
large fuel tank, air cooled, 4 stroke, long hour continous running, least noise, high performance air filter, overload protection.

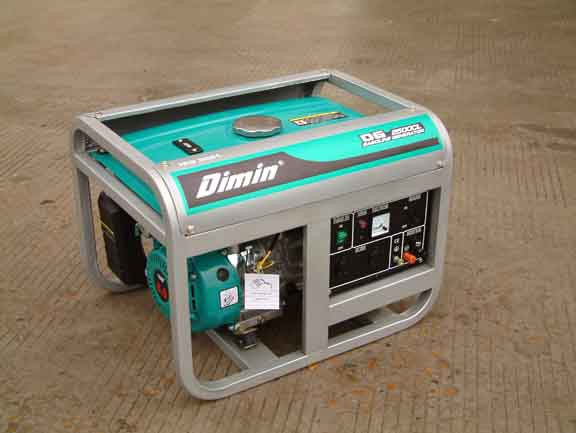

Model: DG2500CL
Rated frequency (Hz):50/60
Rated voltage (V):110,120,220,230,240,220/110,240/120
Rated output power (KW):2/2.3
Max output power (KW):2.2/2.5
DC output :12V-8.3A
Power factor cos:1
Phase number :Single-phase
Fuel tank capacity(L):15
Continuour running time (hr)(at rated power ):11/9
Noise level at 7m[dB(A)]:65~68
Overall dimension [mm](L*W*H):595*485*440
Packing dimension [mm](L*W*H):610*500*470
Net weight (kg):44
Gross weight (kg):47
Starter system: Recoil starter (electric starter )
Engine model : DQ200
Engine type :Single cylinder,4-stroke ,air-cooled ,OHV ,gasoline engine
Bore *stroke (mm):68*54
Displacement (cc):196
Rated rotation speed (rpm):3000/3600
Model: DG5500CL(E)
Rated frequency (Hz):50/60
Rated voltage (V):110,120,220,230,240,220/110,240/120
Rated output power (KW):4/4.5
Max output power (KW):4.5/5
DC output :12V-8.3A
Power factor cos:1
Phase number :Single-phase
Fuel tank capacity(L):25
Continuour running time (hr)(at rated power ):9/7.5
Noise level at 7m[dB(A)]:72~74
Overall dimension [mm](L*W*H):690*555*550
Packing dimension [mm](L*W*H):705*570*570
Net weight (kg):87
Gross weight (kg):94
Starter system: Recoil starter (electric starter )
Engine model : DQ340
Engine type :Single cylinder,4-stroke ,air-cooled ,OHV ,gasoline engine
Bore *stroke (mm):82*64
Displacement (cc):337
Rated rotation speed (rpm):3000/3600
Other model: DG6500CL(E)
We are a Chinese manufacturer specialized in manufacturing and exporting diesel/gasoline engines, portable generators, gensets, generator and water pump sets, generator & welding sets, lawn mower, garden machinery etc...We have CE&EPA certification and manufacture under ISO 9001 management system. Our products are appearance patented which makes them unique from others. In addition, our engineers develop new style products every year. With reliable quality, competitive price and responsive after service, our products sell well in UK, Greece, Sweden, Middle East, Australia, North America, South America and other countries worldwide and enjoy high reputation and long term relationship with our customers. Besides our brand Dimin, OEM is accepted.
