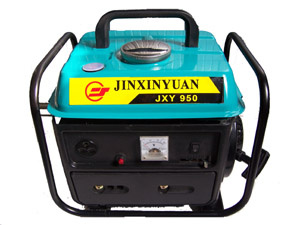

Portable generator, 50HZ, 650KW, 2-stroke
Single cylinder, air cooled,
3000rpm, 220v,
Max output: 700kw. Power factor: 1.0
Features:
1. Economical. Low fuel consumption.
2. Compat in structure, low in noise&pollution and high in efficiency.
3. Stable voltage and frequency
4. Overload protection for safety operation,
5. Brushless altimeter and non-contat electronic ignition system adopted for easy maintenance.
6. Exceptional performance at reason-able price.
| Generator | Type | JXY600F-1 | JXY900F-1 | JXY650F | JXY950F |
| Rated frequency (Hz) | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 |
| Rated output (KW) | 0.45 | 0.55 | 0.65 | 0.75 | 0.45 | 0.55 | 0.65 | 0.75 |
| Max output (KW) | 0.50 | 0.60 | 0.70 | 0.80 | 0.50 | 0.60 | 0.70 | .0.80 |
| Rated voltage (V) | 110,120,220,230,240,110/220,115,230,120/240 |
| Power factor (cosΦ) | 1.0 |
| Voltage regulate | Capacitance expiate |
| Engine | Mode | 1E45F |
| Type | Single cylinder, 2-stroke, Air cooled |
| BoreXstroke (mm) | 45X40 |
| Rated output KW | 1.1/3000rpm |
| Ignition fashion | Transistor,Zero touch point |
| Starting fashion | Manual |
| Fuel tank capacity (L) | 4.5 |
| Fuel Trademark | 35~40:1 |
| Unit | NW/GW Kg | 19/21 | 21/23 | 18.5/20.5 | 20.5/22.5 |
| Over dimension LXWXH mm | 440X350X360 | 400x320x325 | 380X325X335 | 380X325X335 |
We are JXY MOTOR CO., LTD., it is a specializing in generator, gasoline generator set, diesel generator set, motor manufacturer in china
JinXinYuan products include 20 series and more than 200 specifications, all of which are well received in over 10 countries and regions including Southeast Asia, the Middle East, Africa, South America, etc. We have experienced distributors in main cines of china, with whom we have made excellent sale achievement.
JinXinYuan people struggles to improve the community in a practical, corporate and energetic working style. Excellent product quality and leading production technology is the basis for survival, and continuous innovation is the way to development. Let us create the fortune for you by our efforts and our products.
