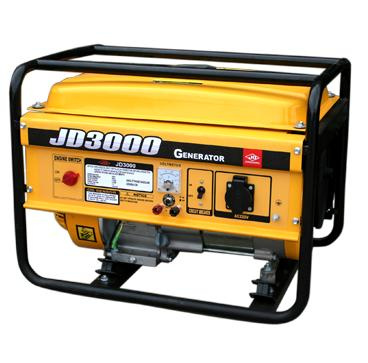

Rated frequency (Hz): 50/60
Rated voltage(V): 110V/120V/220V/230V/240V
Rated output(W): 2500/3000
Peak output(W): 2800/3500
Rated rotation speed(rpm): 3000/3600
Power factor(cos): 1.0
Phase number: Brush, single phase
Noise level [dB(A)@7m]: 67
Fuel tank capacity (l/gal): 15/4
Engine model: JF200
Engine type: OHV forced Air-Cooled, 4-stroke
Displacement (ml): 196
Compression ratio: 8.5: 1
Ignition system: T. C. I.
Starting system: Recoil and hand -operated /Electric start
Oil: SF or higher grade
Dimensions (mm/inch): 600 x 450 x470/23.6 x 17.7 x 18.5
Weight (kg/lbs): 48/105.6
20/40FT unit: 225/475
Founded in 1945, Jiangsu Jianghuai Engine Co.,Ltd. has steadily and persistently developed for sixty years. Now, it becomes an international enterprise with high reputation in and abroad. Jiangsu Jianghuai Engine Co.,Ltd. carries out multiple strategy of product. The main products of engine include diesel oil engine and gasoline engine, and the terminal products include diesel oil generator, gasoline generator tractor and so on. The annual production of generator reaches 1.2 million.
Jiangsu JD Group Imp & Exp Co., Ltd. exports 1.4 million generators and sells to over 50 countries and regions. It also sets overseas branch companies and factories in America, Peru, Vietnam, Namibia and Angola. And the engine of overseas registered brand "JD" becomes the preferred brand in the mind of customers in the most of countries and regions in East and South of Asia and parts of Middle East and Africa. The exports have played the firth place for nine years in medium-power and low-power engine industry in China. In 2005, the export value exceeded $ 55 million.
Insisting on the principle of "Talent, innovation and overmatch" and promising the first-rate product and effective service to satisfy customer's demand in and abroad, the company strives to become the leader in the same field in three or five years and realize the strategic development aim of "Playing the leading role in China, Striving to reach the world-class level".
