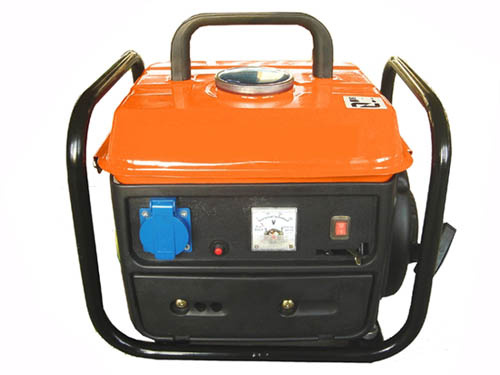

Gasoline Generator (ARK950G)

Model ARK950G
Engine Model 1E45F
Type Forced air-cooled 4-stroke OHV single cylinder
Displacement(ml) 63
Maximum Output(HP/rpm) 2.0Hp/3600rpm
Ignition System Non-contact Transistorized Magneto
Starting System Recoil and hand-operated
Fuel Tank Capacity(l) 4.2
Fuel Consumption(L/H) 0.67
Continuous Operating Hours(H) 6.3
Engine Oil Capacity 0.4
Operating Noise at 7m(dB) 57
Generator Phase number Single phase
Rated Frequency(Hz) 50/60
Rated Voltage(V) 220.110.220/110
Power Factor 1.0
Rated Output(KW) 0.65
Maximum AC Output(KW) 0.8
DC Output in Low Voltage 12V, 8.3A
The whole Dimension L×W×H(mm) 380×315×330
N. W. /G. W. (Kg) 17.5/19.5
20GP/40GP 756/1519
