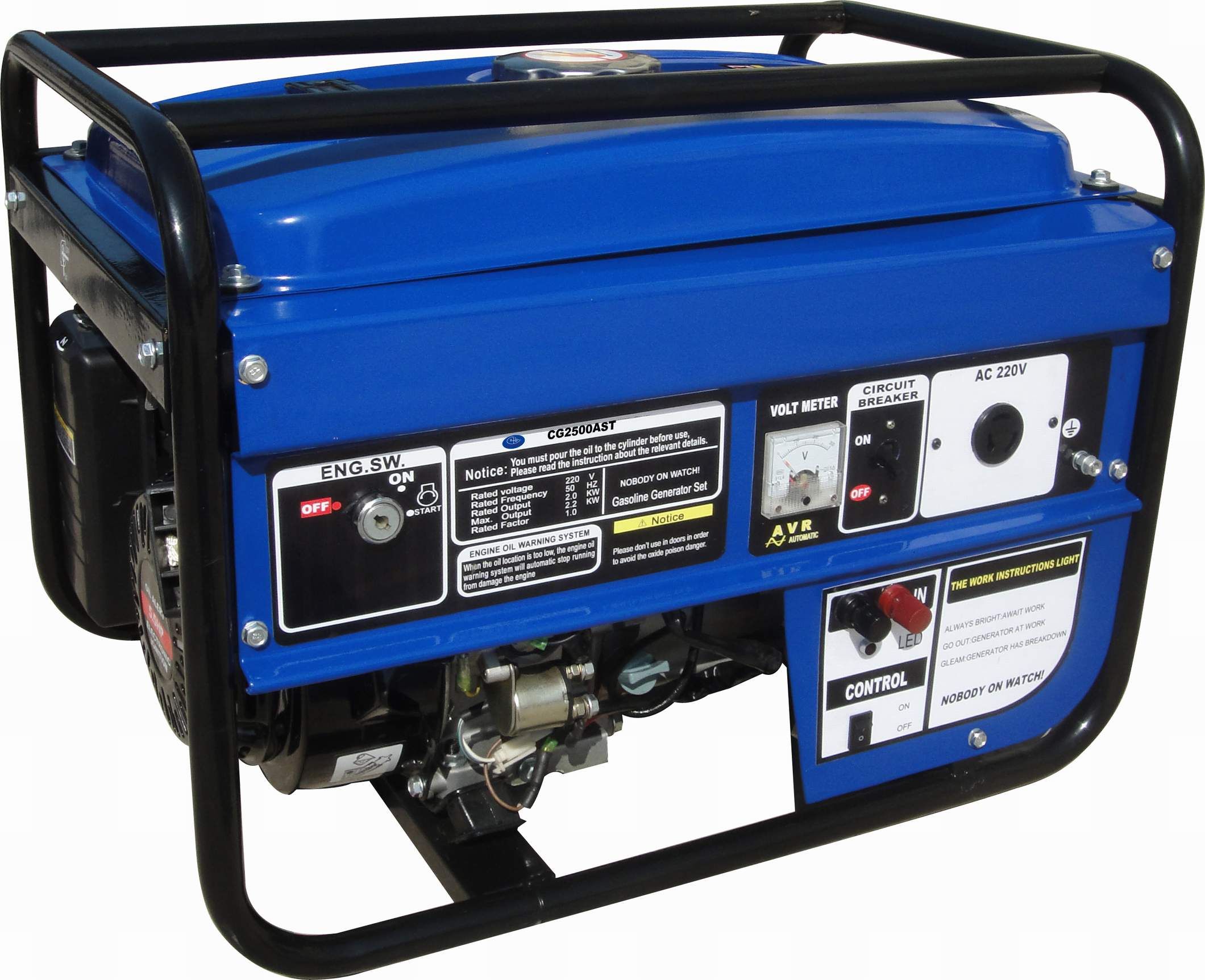

Specifications of gasoline generator CG2500:
1. High speed engine.
2. Compact size and light weight.
3. Can be easy start even in cold weather.
4. Safe usage.
5. Competitive price.
6. CE&ISO certificated.
7. Low fuel consumption.
8. High performance.
9. Longer service life,
|
Specifications |
Generator
|
Model |
CG2000 |
CG2500 |
CG3500 |
|
Type |
Single-phase |
|
Voltage regulate |
AVR |
|
Frequency(Hz) |
50/60 |
|
Rated AC voltage(V) |
110/120/220/230/240 |
|
Rated AC output(KVA) |
1.5/1.8 |
2.0/2.2 |
2.5/3.0 |
|
Peak AC output(KVA) |
1.8/2.0 |
2.2/2.5 |
2.8/3.0 |
|
Power factor |
COS φ=1 |
Engine
|
Model |
CS160 |
CS200 |
CS200 |
|
Type |
OHV Forced air-cooled, 4-stroke |
|
Displacement(ml) |
163 |
196 |
196 |
|
Max. output(HP/rpm) |
5.5/3600 |
6.5/3600 |
6.5/3600 |
|
Fuel |
Unleaded gasoline |
|
Fuel tank capacity(L) |
15 |
|
Continuous operating hours(h) |
13 |
12 |
11 |
|
Ignition system |
T.C.I |
|
Starting system |
Recoil and hand-operated |
|
Operating noise level(7m)dB(A) |
68 |
Package dimension
|
Dimension L×W×H(mm×mm×mm) |
600×450×470 |
|
Net weight(kg) |
39 |
40 |
48 |
|
Gross weight(kg) |
41 |
42 |
52 |
|
20/40FT unit |
480/960 |
Henan Chuangshi Motor Generator Technology Co., Ltd. is located in jinshan industrial park of Hebi economic development zone that founded in 2010. With small diesel and gasoline engine power as the core, our company is the first professional manufacturing enterprise in Henan that produces engine tools to service our life, such as small power generators, pumps, small agricultural machinery tools, garden power tools, etc. Our company takes market as the oriented and its first-term registered capital is RMB 20 million.
Our products have a great advantage in cost performance than any other factories. Because we make full use of Hebi's magnesium alloy resources and employ the industrial experienced management and technical personnel. For doing so, we reduce production cost scientifically and reasonably on the premise of high quality.
