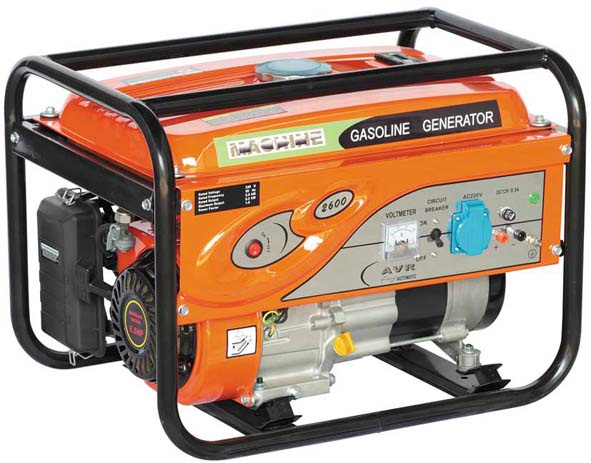

TP3000
Engine model: TP168F-2
Engine type: Single cylinder, 4-stoke, OHV250 inclined, forced air
Cooling
Power output(kw): 3.8
Bore× Stroke(mm): 68*54
Displacement(CC): 196
Compression ratio: 8.5: 1
Oil capacity(L): 0.6
Fuel tank capacity: 15
Fuel consumption(g/kw. H): ≤ 374
Continuing time: 12
Rated frequency (Hz): 50/60
Rated voltage (V): 110/120/220/230/240
Voltage regulator system: Automatic Voltage Regulation
Rated output (kw) 2.5
Max. Output (kw) 3.0
Power factor: 1.0
Charging voltage (V): 12(DC)
Charging current (A): 8.3(DC)
Starting system: Recoil/Electric start
Ignition system: Transistorized magneto
Noise d B (A) (4m): 76
Dimension (L× W× H): 590× 475× 460
Net weight/ G. W. (kg): 47/49
