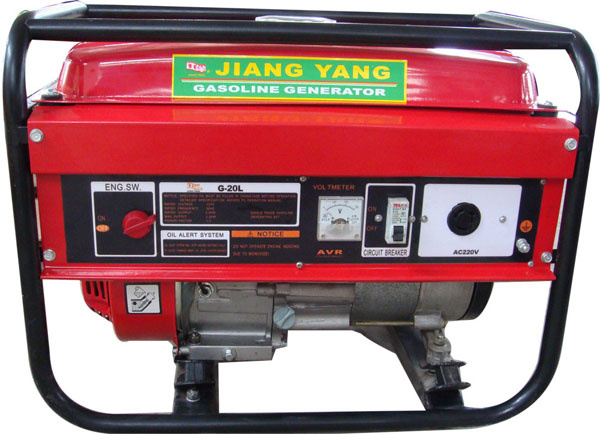

This type of generating set uses gasoline as its power, and the output from 2kw to 5kw.It can be moved easily.
Generator Model | G-20L | G-25L | G-30L | G-40L(D) | G-50L(D) |
Type
| Brushless, revolving magnetic field, self-excitating, 2-pole, single-phase | Brushless, revolving magnetic field, self-excitating, 2-pole, single-phase | Brushless, revolving magnetic field, self-excitating, 2-pole, single-phase | Brushless, revolving magnetic field, self-excitating, 2-pole, single-phase | Brushless, revolving magnetic field, self-excitating, 2-pole, single-phase |
Frequency HZ | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 |
Max AC output KVA | 2.2 | 2.4 | 2.3 | 2.5 | 3 | 3.2 | 4.5 | 5 | 5.5 | 6 |
AC Voltage V | 110/120/220/230/240 | 110/120/220/230/240 | 110/120/220/230/240 | 110/120/220/230/240 | 110/120/220/230/240 |
Rated AC output KVA | 2 | 2.2 | 2 | 2.3 | 2.8 | 3 | 4 | 4.5 | 5 | 5.5 |
DC output | 12V/8.3A | 12V/8.3A | 12V/8.3A | 12V/8.3A | 12V/8.3A |
Engine model | JF168 | JF200 | JF200 | JF340(D) | JF390(D) |
Fuel tank(L) | 15 | 15 | 15 | 20 | 20 |
Continuous operating hours | 12.8 | 11.8 | 12.8 | 11.8 | 8.2 | 7.8 | 8.2 | 6.8 | 8.1 | 6.7 |
Starting system | Recoil D:electric starting | Recoil D:electric starting | Recoil D:electric starting | Recoil D:electric starting | Recoil D:electric starting |
Operating noise level(m) | 65 | 68 | 65 | 68 | 65 | 68 | 71 | 72 | 71 | 72 |
Package dimension (mm) | 610x450x470 | 610x450x470 | 610x450x470 | 700x530x550 | 700x530x550 |
N.W. /G.W.(KG) | 45/47 | 45/47 | 49/51 | 82/85 | 83/86 |
20/FCL pcs | 225 | 225 | 225 | 140 | 140 |
YANCHENG JIANGYANG FOREIGN TRADE ENGINE CO., LTD lies to the seaside of Yellow Sea with convenient transportation to Shanghai, Beijing, Guangzhou and so on big city by air, railway or freeway.
The factory owns the first-rate inspection equipment, high technology and over 20 year's' experience in manufacturing diesel engine from 3hp to 30hp and various kinds of generating set, such as automatic, trailer, sound proof, from 0.5kw to 1500kw. Also supply water pump set, sprayer, alternator and related spare parts.
The factory delicates its efforts on developing generating sets to use new energy sources, such as bid gas and wind power, ranging from 150kw to 500kw. They are widely used in farm, mine, hospital and school as a reserved power source for emergent case.
We provide various kinds of diesel engine, gasoline, water pump, sprayer, diesel generating sets.
Please contact us for further details.
