Price Term: FOB Fuzhou, China
Payment Terms:
A. TT: 30% deposit first, balance 70% within 7 days after present the Copy of B/L by fax.
B. By irrevocable Letter of Credit at sight
Delivery: 15 to 20 days after receiving the deposit.
Validity: This quotation will be valid for one month from the date of issue.
Warranty:
12 months or 1000 running hours from shipment date. If the quality problem arise during the warranty period, and verified the problem is caused by our genset-body instead of external or natural reasons. (Refer to all kinds of natural disaster, shipping, loading, unloading, wrong-operation, etc), we will supply the relevant spare parts free of charge for maintenance; After the warranty period, we can supply the required spare parts for you under cost prices.
|

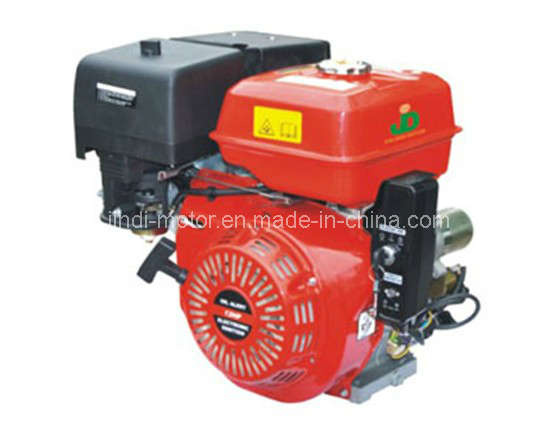

Model |
JD154F |
|
Type |
4-Stroke, Air-cooled, OHV |
|
Bore*Stroke(mm) |
54*38 |
|
Displacement |
87 |
|
Max. output(hp/rpm) |
2.4/3600 |
|
Max. Torque(N. m) |
4.3/3000 |
|
Fuel consumption(g/hp. h) |
230 |
|
Ignition System |
Transistorized Magneto Ignition |
|
Spark Plug |
E6TC |
|
Fuel Tank(L) |
1.6 |
|
Lubrication Oil |
SAE 10W/30 |
|
Lubrication Oil Volume(L) |
0.4 |
|
Starting System |
Recoil |
|
Stop System |
Ignition Primary Ciruit Ground |
|
Noise Level at 7m(db) |
72 |
|
Gross Weight(kg) |
11.5 |
|
Dimension(L*W*H)(mm) |
397*345*367 |
|
20ft Container Qty |
594 |
|
40ft Container Qty |
1200 |
The main products of Jindi company are Electric Motor, Alternator, Gasoline water pump, Diesel water pump, Gasoline generator and Diesel generator, for house hold, Industrial and Agricultural use. Our company has obtained ISO90001: 2000Quality Management System Certificate in 2003, and some of the products have been granted by"CE", "SONCAP", while some of the products are granded by"CQC"with"CCC" certificate.
