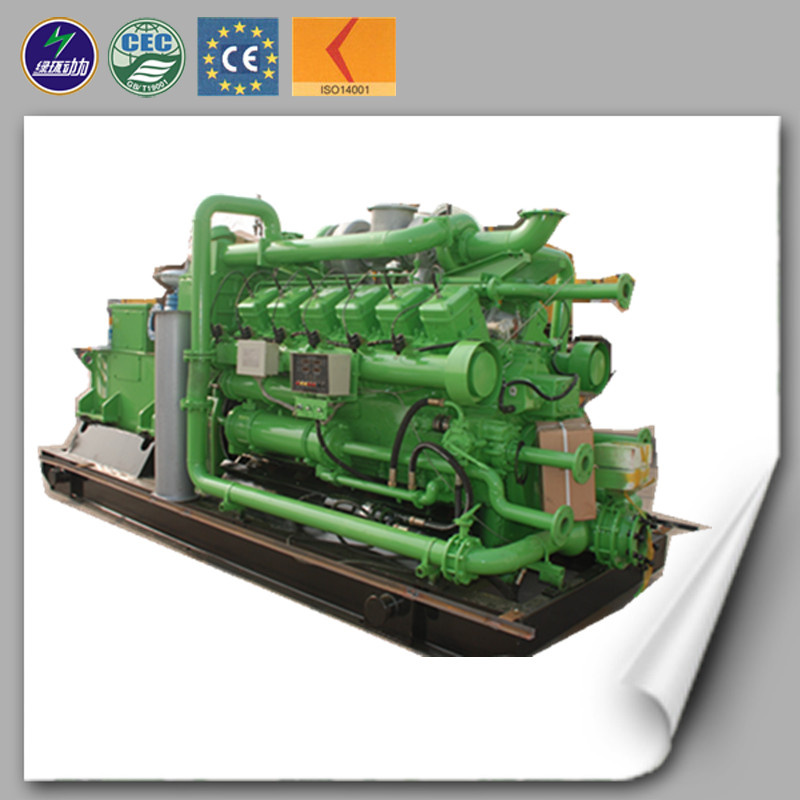

Gasification power plant electric biomass generator 600kw
Worksite requirements
The worksite needs to meet following basic requirements:
a) Ambient temperature between -40ºC~45ºC;
b) Relative humidity less than 90%(35ºC);
c) Site elevation not higher than 2000m;
d) For outdoor installation, simple rain shelter is required.
Its main index requirements are as follows:hardness:0.7~5.3me/L ;chloride ion content:<150mg/L;PH≤7~8.5
Fuel gas requirement
1m distance away from genset's pressure regulating valve of inlet
1)Temperature of biomass gas ≤40ºC;
2)Pressure of biomass gas 3~10kPa, velocity of pressure≤ 1kPa/min;
3)H2S≤200mg/Nm3;
4)NH3≤20mg/Nm3
5)Tar Content ≤20%mg/Nm3
6) Impurities particle size≤5μm; impurity content≤30mg/Nm3;
7)Moisture Content of biomass ≤40g/Nm3;Heat value more than 4.2MJ/Nm3
Model Number (Engine Type) | LHNG600 |
| Brand Name | LVHUAN |
| Prime Power/Standby Power | 480KW/600KW |
| Rated Speed | 1000/1200RPM |
| Rated Frequency | 50/60Hz |
| Rated Voltage | 400V/230V |
| Phase | AC 3-Phase, 4 wire |
| Voltage Stability | ≤±2% |
| Voltage transient | ≤±10% |
| Voltage Stable time | ≤1s |
| Heat consumption | ≤11mj/kw.h |
| Lubricant Consumption | ≤1.0g/kw.h |
| Engine Capacity | 71.4L |
| Cylinder Number | 12-V |
| Cylinder Bore | 190mm |
| Stroke | 210mm |
| Starting System | DC 24V electric motor |
| Cooling method | water cooler |
| Lubricant method | Passive and flying lubricant |
| Isolation class | H |
| Protection | IP23 |
| Alternator | Siemens |
| Power Factor | 0.8 lagging |
| Exciting method | brushless |
| Colour | your choice |
| Certificates | ISO 9001:2008, CE |
| Warranty | 1 year or 1000 running hours which arrives first |
| Type | Open |
| Control system | Automatic alarm system |
| Size | 6200x2100x2800mm |
| Weight | 12500kg |
We have a sales staff can speak in Russian, If you from Russia, Kazakhstan , Ukraine, Belarus, Uzbekistan, and other countries,you can visit our Russian website: www.lvhuanpower.ru.
Shandong Lvhuan Power Equipment Co., Ltd. is a manufacturer which specially produces internal-combustion gas engine generator sets and gas engines, with registered capital of more than RMB10 million, annual turnover of RMB100 million, over 200 staff, beautiful scenery and convenient transportation. Our factory mainly specializes in the design, research, production, sale, installation and technical service of gas generator sets and diesel generator sets. Our company has strong specialty, powerful technical force, a complete production plant, advanced processing technology, mature inspection method and a strict test system.
Our products include 105, 135 and 190 series base engines. The output power ranges from 10kw to 500kw. The gensets can be used for biogas, natural gas, oil associated gas, coal mine gas and mash gas produced by burying rubbish and sewage disposal.
We manage our company by ISO9001 system strictly. Gas engines and alternators are environment-friendly products.
Our philosophy is "Only pay attention to supplying stronger power to you". More importantly, combining with our continuous technological innovation and hard work, we believe that you will choose our company and keep a long-term business relationship with us!
