Gas Power Plant CE Approved Natural Gas Power Generator

Gas Power Plant CE Approved Natural Gas Power Generator
Price: US $ 40000/Set
Trade Terms: FOB,CIF
Min Order: 1/Set
Pay Type: L/C,T/T,Paypal,Western Union

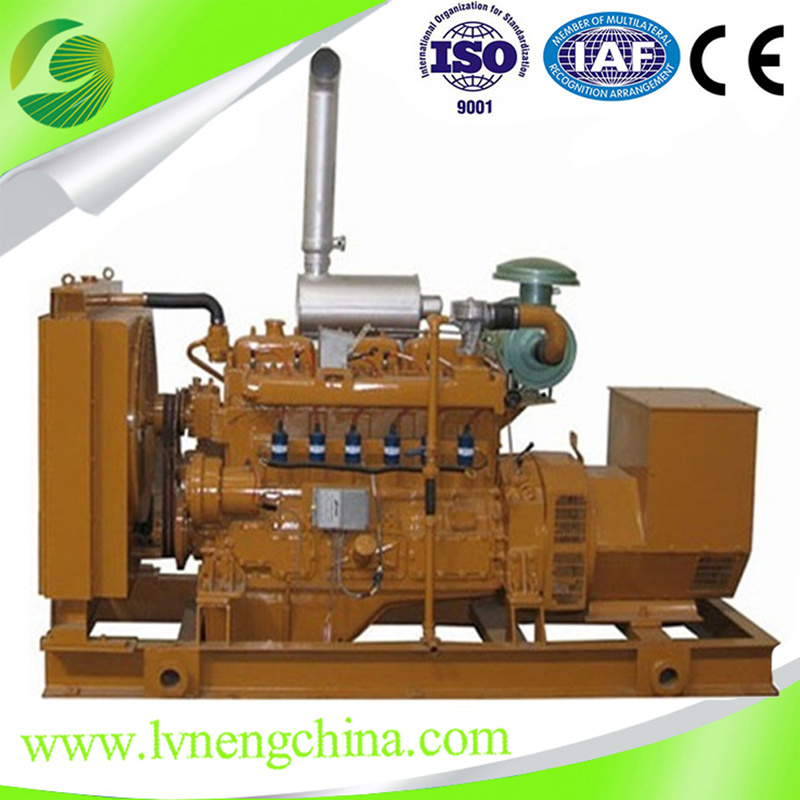

Gas Power Plant CE approved Natural Gas Power Generator

(Single set power supply range: 10 - 600 kw, ≥ 2 sets parallel together to form large power, Eg. 500kw * 3 sets = 1500 kw)

Service form us:
1. Installation and maintaining service abroad
2. Best sale service for machine using time
3. CE, ISO14001: 2004 certificate
4. Turnkey project with CHP/CCHP system and recovery system of exhaust heat.
5. Turnkey project as your need.

Gas generator specification:
Rated Power: 100 KW
Power factor: 0.8
Rated Voltage and Rated Frequency: 400V/230V, 50/60HZ
Voltage Stabilized Regulation: ≤ ± 1.5%
Frequency Fluctuation Ratio: ≤ ± 1%
Insulation Class: H

Gas generator required gas condition:
Within 1meter from gas intake valve of generator
1. Gas temperature ≤ 40º C
2. Pressure 3-20kpa, pressure changing rate ≤ 1kpa/min
3. H2S ≤ 200mg/Nm3
4. NH3 ≤ 20mg/Nm3
5. CH4 content ≥ 40%, changing rage ≤ 2%/min
6. Tar Content ≤ 20 mg/Nm3
7. Impurity particle size ≤ 5μ M, impurity content ≤ 30mg/Nm3
8. Moisture content ≤ 40g/Nm3
9. Heat value ≥ 4.2MJ/Nm3

Gas generator machine supply details:
Ignition system: We adopt ignition system of magneto which produced by American ALTRONIC company, including: Magneto, high-tension coil, sparking plug.
Starting system: DC24V electric motor, 12v190 adopt ST710 of direct-current.
Pressure charging system: Pulse Mixed-flow supercharger, compression ration is 1: 8, meet engine's requirement for gas-flow rate.
Speed regulating system: EGS gas controller of American WOODWARD Company.

Features of our gas generator
1. Pure copper water tank for best cooling effect
2. Famous component brand to ensure overall quality
3. Expansion fitting combined with shrinking fitting give high tightness to the system4. Safety guarantee form electromagnetic valve as well as back-fire relief valve
5. Residual heat CHP recycle system available for choice.

Optional part---Silent canopy for generator:

Features of generator silent canopy:
1. Regular low noise control within 75dB(A) ( at 7 meters), super low noise with in 70 dB(A)(at 7 meters)
2. Double layers bottom frame with shock absorbing device. The oil tank, battery and muffler are assembled together. Easy to deliver and install.
3. Glass window and emergency button to make it easier to operate and inspect the working situation of generator.

Automatic control system for gas generator
1. Manual control panel
2. Long distance control system
3. Automatic control panel and automatic loading switch
4. Control Panel of parallel operation

FAQ-gas generator:
1. How to choose the right model?
A: It depends on real output power, Voltage, Frequency and gas type.

2. What is the oil consumption and capacity per hour?
A: 1.0-1.63g of lubricant oil consumption per hour.
1.0 Cubic meter gas can produce 1.5- 3.0kw/h power. The capacity depends on gas energy.
E. G 1.0 Cubic meter natural gas produce about 3.0kw/h

3. What is the overhaul?
A: About 30000 working hours. A week is enough to finish.

4. What is the warranty?
A: 1 year. Inside this 1 year, we offer all spare parts free of charge. After this period, spare parts with charge. We offer one set of consumption spare parts with machines.

5. How is the service?
A: We offer installation, repair and maintain service abroad. And online guide service if needed anytime. Our before-sale, in-sale and after sale service are all trustable, you can name it.

Any questions, please contact me freely.
Model NumberLNNG100
Brand NameLvneng
Rated Power100KW
Rated Speed1500rpm
Rated Frequency50/60 Hz
Rated Voltage400v/230v
PhaseAC 3 phase 4 wire
Starting system24V electric motor
Cooling methodCirculating water cooling
Lubricant methodpressure and splash
Power Factor0.8 lagging
Voltage Stability≤±2%
Voltage Transient≤±10%
Voltage Stable time≤1 s
Color your choice
 Lead time 30 days



Prod Model: Ln-100GFT
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power Factor: 0.8
Voltage Regulating Range: 95%-105%
Voltage Steady State: 2%
Voltage Transient State: 10%
Voltage Settling: 1s
Pressure: 5-20kpa
Intake Mode: Natural Intake
Starting Mode: 24V Electric Motor
Voltage Regulation Mode: Automatic
Sparking Mode: Sparking Plug
Gas Source: Natural Gas
Power: 50kw
JiNan LVNENG POWER MACHINERY EQUIPMENT Co., Ltd was founded in July, 2009. It's located in high-tech development zone in the east of Jinan city with advantageous geographical position and good transport facilities The Company owns two factory regions research and production, with more than 150 staffs in company. And twenty of them are high-level technical talented person We own developed production line, impeccable quality test system and professional sale and service-after-sell team, and our company is committed to research production marketing and after-sale service of synthesis firm. With our excellent quality product and perfect after-sale service, we won praises and approbation from our customers.

Our products include 105, 135 and 190 series base engines. The output power ranges from 10kw to 500kw. And our main products are kinds of diesel engines, diesel generator and fuel gas generator, including natural gas generator methane gas generator straw gas generator biomass gas generator sets coal gas generator, coke oven gas generator sets, Mobile power station(Mobile trailer series), Static-speaker unit, Diesel engine and diesel generator sets etc.

We manage our company by ISO9001 system strictly. Gas engines and alternators are environment-friendly products.

All large, medium and small power products can be produced and the power performance, economical efficiency and reliability are all in the advanced level of this field, with the improvement of R & D department, Our Company install the valve seal and exhaust temperature meter for the products which are out form company, really save fuel consumption/automatic temperature control. For the vast number of users to save a lot of cost, has been widely praised by users

JiNan LVNENG POWER MACHINERY EQUIPMENT CO, . Ltd persist in scientific and technological innovation manage Innovation development direction Always insist on customer-first Business ideas of Mutual benefit, insist on Energy saving and environmental protection Safe and reliable quality policy Insist on fast\Exquisite Standard Service tenet. Inherit" Quality is the first, credit as prerequisite" as Core concept, constantly creating greater value for customers, Promoting sustained and healthy development of the company

"LVNENG, Dedication power \Pursuit excellence" A broad application market, quality products, quality and service will be our cooperation to build a good platform. Join hands with LVNENG success-together. Looking forward to Look forward to working with you.
