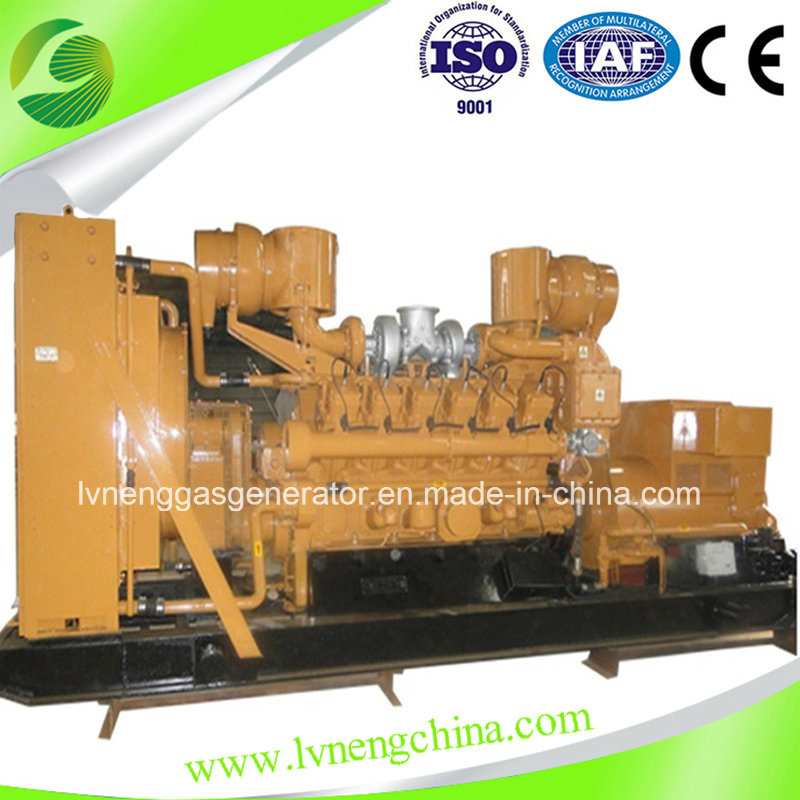

Gas power plant 1MW Natural Gas Generator
(Single set power supply range: 500 kw, ≥ 2 sets parallel together to form large power, like 2 sets 500 kw generator form 1MW generator sets)
Natural gas generator features:
1. Pure copper water tank for best cooling effect
2. Famous component brand to ensure overall quality
3. Expansion fitting combined with shrinking fitting give high tightness to the system4. Safety guarantee form electromagnetic valve as well as back-fire relief valve
5. Residual heat CHP recycle system available for choice.
Natural gas generatormachine componient details:
Ignition system: We adopt ignition system of magneto which produced by American ALTRONIC company, including: Magneto, high-tension coil, sparking plug.
Starting system: DC24V electric motor, 12v190 adopt ST710 of direct-current.
Pressure charging system: Pulse Mixed-flow supercharger, compressionration is 1: 8, meet engine's requirement for gas-flow rate.
Speed regulating system: EGS gas controller of American WOODWARD Company.
Natural gas application field:
1. Oil field
2. Industrial Zone
3. Petroleum chemical plant
4. Used as standby power in case of emergency
5. Supply power to oil well
Applied gas:
Natural gas(CNG, LPG), oilfield associated gas and so on.
Requirements for natural gas:
Within 1meter from gas intake valve of generator
1. The ratio of methane (CH4) in natural gas ≥ 70%
2. Pressure 80-220kpa, pressure changing rate ≤ 1kpa/min
3. H2S ≤ 20mg/Nm3
4. Moisture content ≤ 40g/Nm3
5. Impurity particle size ≤ 5μ M, impurity content ≤ 30mg/Nm3
Capacity: About 1Cubic meter gas generate 3 kw/h power.
Lifespan of our generator: At least 20 years.
Optional parts for noise reduction--silent canopy for generator:
It is environment friendly product. It adopts advanced noise reduction technique and is made of new type sound absorbing materials, Suitable to installation in narrow place and place with strict demand for noise, like: Factory, school, hotel, restaurant and residential area, etc.
Features of generator silent canopy:
1. Regular low noise control within 75dB(A) ( at 7 meters), super low noise with in 70 dB(A)(at 7 meters)
2. Double layers bottom frame with shock absorbing device. The oil tank, battery and muffler are assembled together. Easy to deliver and install.
3. Glass window and emergency button to make it easier to operate and inspect the working situation of generator.
Other Specification
Payement: TT(30%+70%), TT30%+LC 70%, LC%
Installation service proviced if you need
Inspection: 100% inspection before shipment in person or third party
Service form us:
1. Install abroad
2. Best sale service for machine lifetime
3. CE, ISO14001: 2004 certificate
4. Turnkey project with CHP/CCHP system and recovery system of exhaust heat.
5. Supporting facilities(biomass fasifier, biogas tanks) for the generator system available form us.
6. Other service needed for your side.
| Model Number | LNNG500 |
| Brand Name | Lvneng |
| Rated Power | 500KW |
| Rated Speed | 1000 rpm |
| Rated Frequency | 50/60 Hz |
| Rated Voltage | 220v / 380V |
| Phase | AC 3 phase 4 wire |
| Starting system | 24V electric motor |
| Cooling method | Circulating water cooling |
| Lubricant method | pressure and splash |
| Power Factor | 0.8 lagging |
| Voltage Stability | ≤±2% |
| Voltage Transient | ≤±10% |
| Voltage Stable time | ≤1 s |
| Color | your choice |
| Lead time | 30 days |
