The company has passed the ISO9001-2000 international quality management system and implemented it strictly. Each product is produced according to GB/T2820-1997.ISO8528 standard.
A company survives on the good quality of the products and customers. From beginning to end ,We always insist to targeting in producing high quality products. With a wide range, good quality, reasonable price and unique designs......
|
Configuration and technical parameters of generator set |
|
|
|
|
|
project |
content |
|

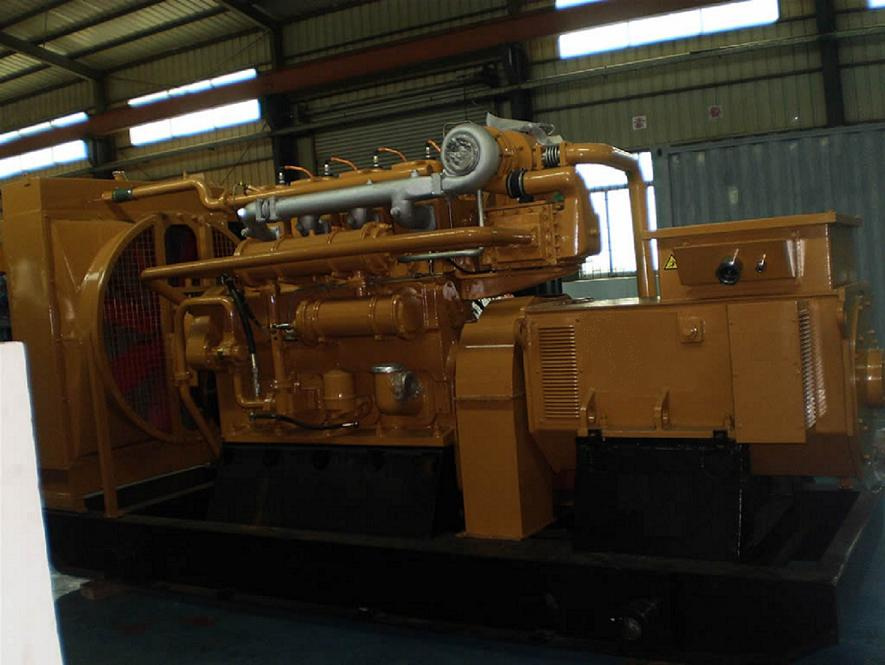

1.Biogas generator set |
|
Team power(KW) |
300 |
|
Rated output voltage(V) |
230(Three phase four wire system) |
|
Frequency(Hz) |
60 |
|
Rated speed(rpm) |
1200 |
|
Rated power factor |
0.8(lag) |
|
Rated current(A) |
941 |
|
Voltage fluctuation rate(%) |
≤ 1 % |
|
Transient voltage regulation rate(%) |
+20%~-15% |
|
Steady-state voltage regulation rate(%) |
≤± 1 % |
|
Voltage stability time |
3 S |
|
Frequency of volatility(%) |
≤ 2 % |
|
Transient frequency regulation(%) |
+10%~-7% |
|
Frequency steady state regulation(%) |
0~5%(adjustable) |
|
Frequency stability time |
7 S |
|
Suttle(kg) |
6300 |
|
Dimension L*W*H(mm) |
5700 × 190 0× 270 0 |
|
2\Gas generator |
|
Engine series |
6190 |
|
Cylinders |
Inline six-cylinder |
|
Cylinder diameter/ stroke |
1 90/210 |
|
Exhaust volume(L) |
35.7 |
|
Compression ratio |
8.3:1 |
|
Gas consumption rate(m3/kw/h) |
≤0. 3 |
|
Inlet pressure |
3-15kp |
|
Engine control |
Special gas engine control system |
|
Speed control method |
Gas machine dedicated electronic speed |
|
Cooling method |
Fan tank |
|
Start method |
24V Direct current to start |
|
3.Alternator |
|
Generator power (KW) |
300 |
|
Excitation method |
Since the brushless excitation |
|
Voltage regulation |
AVR automatic voltage regulator |
|
Coil insulation grade |
Class H |
|
Protection grade |
IP21 |
|
Voltage(V) |
230 |
|
Rated speed(RPM) |
1200 |
|
No-loading voltage setting range |
95%~105% Rated voltage |
|
4.Control system |
|
|
Control module |
HGM7210 self-protection controller with LC digital display |
|
Display items |
AC phase/wire voltage\three phase current\battery voltage\frequency\oil pressure\water temperature\running time-power factor\ alarm failure Display\engine speed and etc. |
|
Main features |
Low speed/overspeed alarm\charging failure\sudden stop alarm\low oil pressure alarm\high water temperature alarm\boot failure,overcurrent, high and low voltage alarm, |
