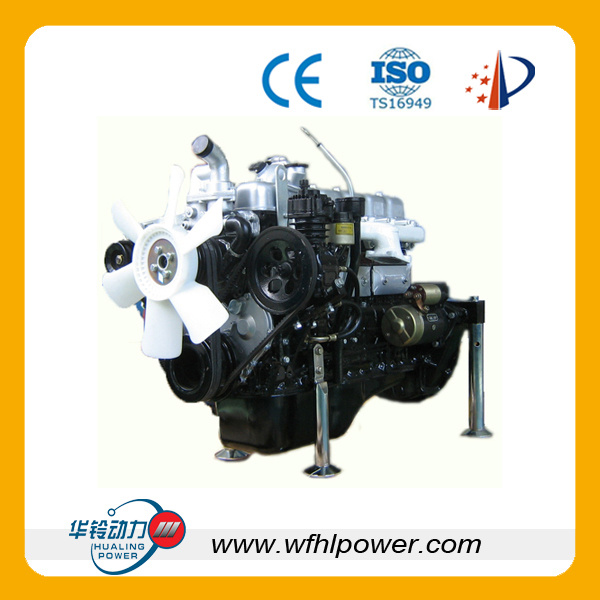

Type Four stroke, in-line, water cooling,
Electric-controlled injection, vale in
Head, dry type thin wall chromium
Plating cylinder jacket
Gylinder number — 6
Bore× Stroke mm× Mm 102× 118
Displacement L5.785
Ratio — 12: 1
Air admission way — Nature inspiration
Rated power kw(PS) 103(140)
Rated speed r/min3000
M3 ≤ 25
Max. Torque/speed N. M/r/min ≥ 372/2000
Max. Speed r/min ≤ 3300
Low idel r/min 650— 750
Crankshaft rotation —
Counterclockwise (viewed from free end)
Fire order — 1— 5— 3— 6— 2— 4
Starting way — The electricity starts
Net mass kg480
L× B× H External dimensions mm 12220× 640× 102
Weifang Hualing POWER CO. Ltd. It is located in the Power city, WEIFANG. With the integration of R&D, Design, Producing, Marketing and whole project construction, specializes in Energy, Electricity power, energy-saving, Environmental protection project.
The company has been identified OEM certificates by 8 World famous Engine group, ISO9001 quality management system certification, China energy-saving product certification. The company invested 2.6 billion RMB in the product line, and now is the first and top diesel engine and gas engine product line.
We produced a series multi-point injection electronic control engine and report to the National Development and reform commission, series of engines on the HL. CNG special report on current trends.
Since 2008, the product of HUALING Power Co., Ltd. Enter to the oil industry, develop and produce wellhead gas generating set, now has been widely used in the CBM oil brand and running in the subsidiaries.
