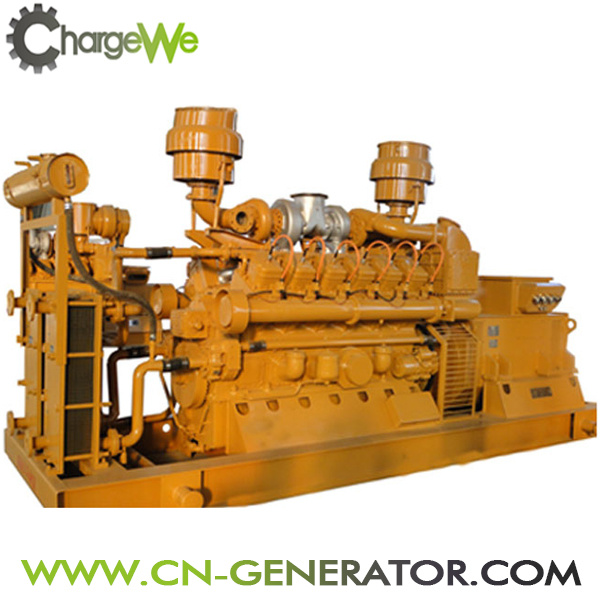

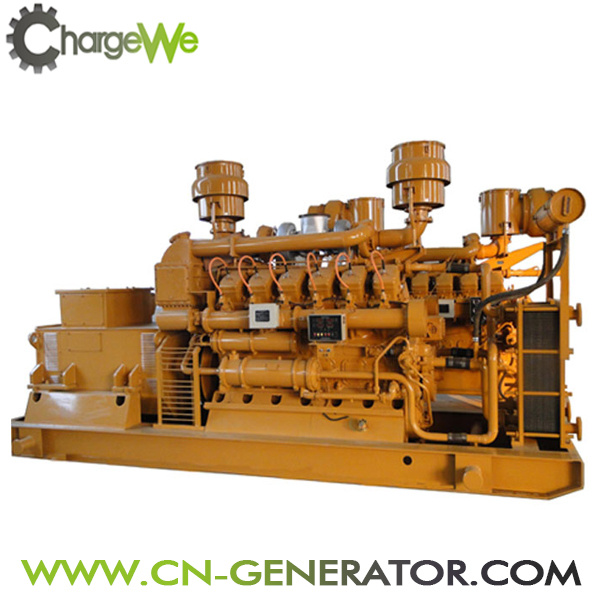

Gas/Electric Motor 4-Stroke Engine Biogas Generator Set (400kw)

Biogas Generator Set

Biogas typically refers to a mixture of different gases produced by the breakdown of organic matter in the absence of oxygen. Biogas can be produced from raw materials such as agricultural waste, manure, municipal waste, plant material, sewage, green waste or food waste. It is a renewable energy source and in many cases exerts a very small carbon footprint.

Biogas can be produced by anaerobic digestion with anaerobic bacteria, which digest material inside a closed system, or fermentation of biodegradable materials.

Biogas is primarily methane (CH4) and carbon dioxide (CO2) and may have small amounts of hydrogen sulfide (H2S), moisture and siloxanes. The gases methane, hydrogen, and carbon monoxide (CO) can be combusted or oxidized with oxygen. This energy release allows biogas to be used as a fuel; it can be used for any heating purpose, such as cooking. It can also be used in a gas engine to convert the energy in the gas into electricity and heat.

Biogas can be compressed, the same way natural gas is compressed to CNG, and used to power motor vehicles. It qualifies for renewable energy subsidies in some parts of the world. Biogas can be cleaned and upgraded to natural gas standards, when it becomes bio methane.

Requirements for biogas genset

Within 1m from pressure valve of gas intake

1.Gas temperature≤40ºC

2.Pressure 3~20Kpa,pressure changing rate≤1kpa

3.H2S≤200mg/Nm3

4.NH3≥20mg/Nm3

5.CH4 content≥40%,changing rate≤30mg/Nm3

6.Impurity particle size ≤5μm

7.Moisture content ≤40g/Nm3

Biogas generator sets application

1.Breeding enterprise-biogas generator power

2.Industry- clcohol plant ,starch factory anaerobic sewage treatment

3.refuse landfill-sewage biogas generator power

Shandong Chaiwei Power Equipment Co.,Ltd uphold the principle of " a full range, high quality, fast " service standards, customer satisfaction as the goal, to the public commitment.

1.Our company has set up a number of excellent emergency service team, experienced engineers and senior technicians, to solve in the fastest time for any problems, maintenance and accessories replacement.

2.After product delivered, after-sales service department staff would phone tracking until customers' satisfication.

3. Over the warranty period of the product, our company promises lifelong inspection and maintenance.

The service commitment to the final interpretation of the Shandong Chaiwei Power Equipment Co., Ltd. all.
