Integral Actuator for DEUTZ 1011
Type Engine
Features and Benefits
Easy Installation
Approved by Deutz Diesel
High Quality Construction
Optimum Fuel Control
Fast Response to
Transcients
Outstanding Reliability
Designed for High
Temperature Applications
Ideal for Variable and
Constant Speed

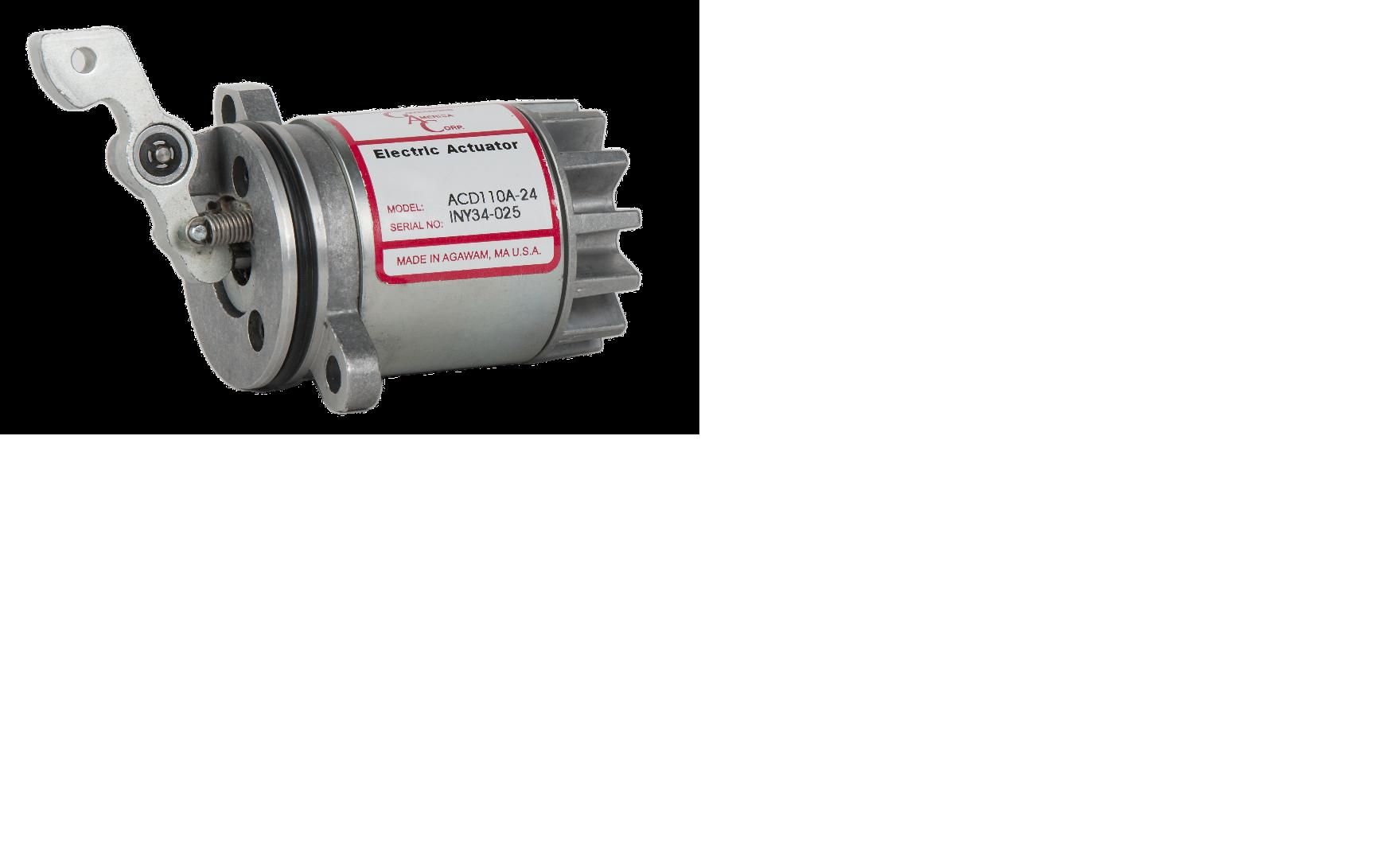

The 110 Series Integral Actuator is designed to mount directly to DEUTZ 1011 series 2, 3 and 4 cylinder engines in place of the electric stop solenoid. It exhibits high quality construction and is designed for high temperature operation. GAC's unique linear electromechanical technology provides proportional actuator movement, based on
Actuator coil current.
Important: When applying the 110 Series actuator to DEUTZ 1011, 4 cylinder engines, the engine must be equipped with DEUTZ'S extra start fuel spring 04174748.
This unique, optimum fuel control, actuating device will outperform externally mounted types of electric actuators. An integral' high performance speed control system results when the 110 Series electric actuator in installed on the engine and electrically connected to complementing governor system components. No external linkages or brackets are required and no extra DEUTZ parts are needed. In addition, when the governor system is de-energized, the 110 Series electric actuator performs as a fuel shut off solenoid.
DEUTZ AG has approved the use of this actuator design for their 1011 Series engines.
The 110 Series Electric Actuator is simple to install and is ideal for variable and constant speed engine governing applications (e. G.: Compressors, Generator Sets, Pumps, etc. ).
The 110 Series actuator is an electromagnetic device which moves the fuel system control rack. It can be integrated into a closed loop speed control system.
