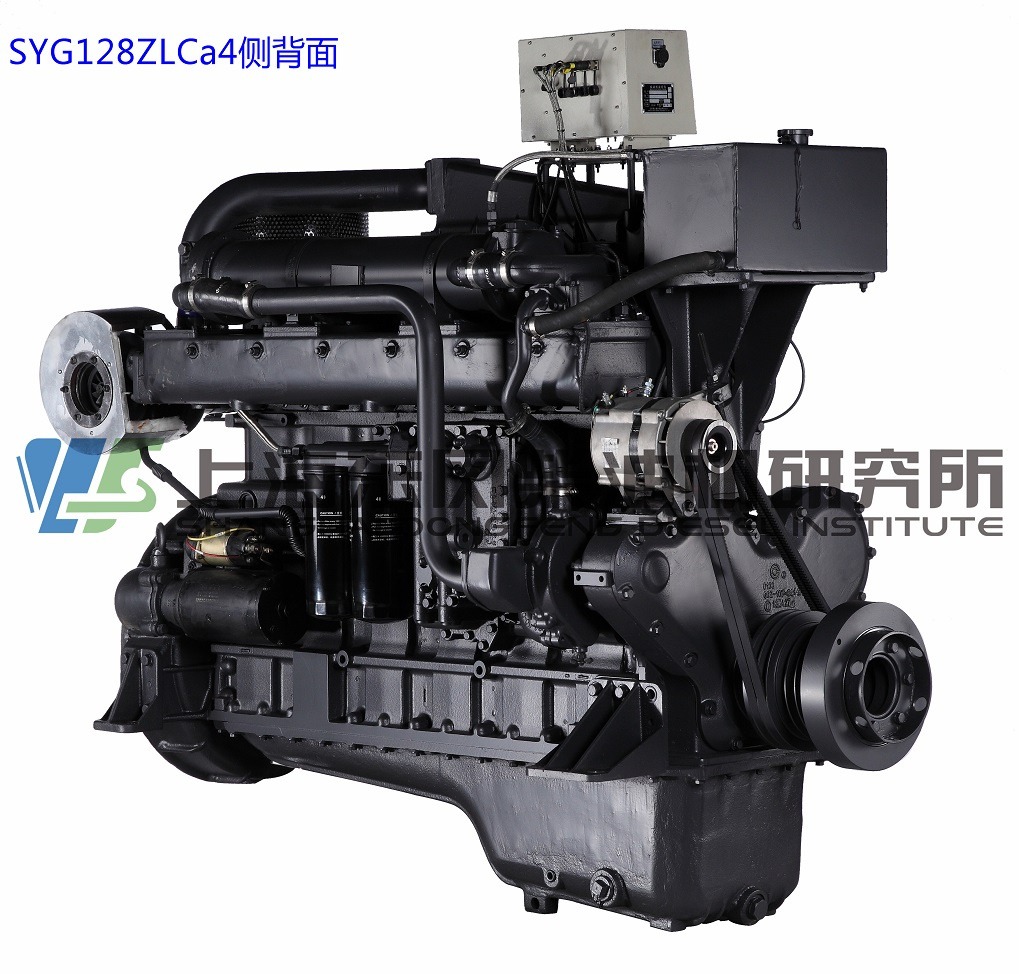

The marine diesel engine made by our institution can be used as both main and auxiliary engine power, and match with all kinds of gearboxes of Hangzhou Gearboxes Factory. It adopts a seawater and fresh water dual-cooling closed circle system and water-cooled vent pipes. Supercharged type adopts branch vent pipes and its supercharger has thermal shrouds to prevent the safety of uses. And they can be equipped with electronic monitoring device and control wire according to user demands. The patrol boats of Shanghai Ocean Inspection Bureau are our marine diesels in trust.The marine machine sets are equipped with sea water pumps, disc rheostats, applicable to ship repair and offshore petroleum exploration, and are ideal substitutes of battery ships.Marine diesel engine
Engine Power: 128.5-254.8KW
Inline, direct, injection4-stroke,
Rated speed: 1500/1800rmp
Tubocharged/T intercooled
| Model | G128Ca | G128ZCa | G128ZLCa | G128ZLCa1 | G128ZLCa2 | G128ZLCa4 |
| Type | lnline,direct,injection,4-stroke,water cooled |
| Inspiration | Nature intake | Tubocharged | Tubocharged/Tubocharged intercooled |
| Number of cylinders | 6 |
| Bore (mm) | 135 |
| Stroke (mm) | 150 |
| Displacement (L) | 12.9 |
| Firing Order | 1-5-3-6-2-4 |
| Cinoressuib Rotio | 17 |
| Overload Power (kW/HP) | 147.1/200 | 178.2/242 | 206/280 | 220.5/330 | 260/353 | 283/385 |
| Overload speed (rmp) | 1854 | 1545 | 1854 |
| Rated Power (kW/HP) | 133.7/182 | 162/220 | 187/254 | 200.5/273 | 236/320 | 257/350 |
| UNA Rated Power (kW/HP) | 128.5 | 155.5 | 180 | 193 | 222 | 254.8 |
| Rated Speed (rmp) | 1800 | 1500 | 1800 |
| Min.Fuel Comsumption (g/kW.h) | ≤197 |
| Lubricating Oil Comsumption (g/kW.h) | ≤0.7 |
| Idling Speed (rmp) | 650±30 |
| Starting Method | Electric Start(DC24V) |
| Overall Dimension (mm) | 1633×853×1217 | 1730×845×1300 | 1672×812×1521 |
| 1762×811×1521 | 1762×811×1532 |
| Net Weight (kg) | 1050±50 | 1200±50 | 1300±50 |
Shanghai Stanford Power Equipment Co., Ltd. is a professional manufacturer of 135 series diesel engines, 135 modified products and subsequent auxiliary products (diesel generating sets). In the business concept of People-oriented, our institution employs high-paying key technicians of all kinds, cultivates a strong technical team, and is kind to the employees to stimulate their passion at work. According to customer requirements, our institution is able to design different stationary, marine and power station diesel engines in line with the international standards.
Please feel free to contact us for further information.
