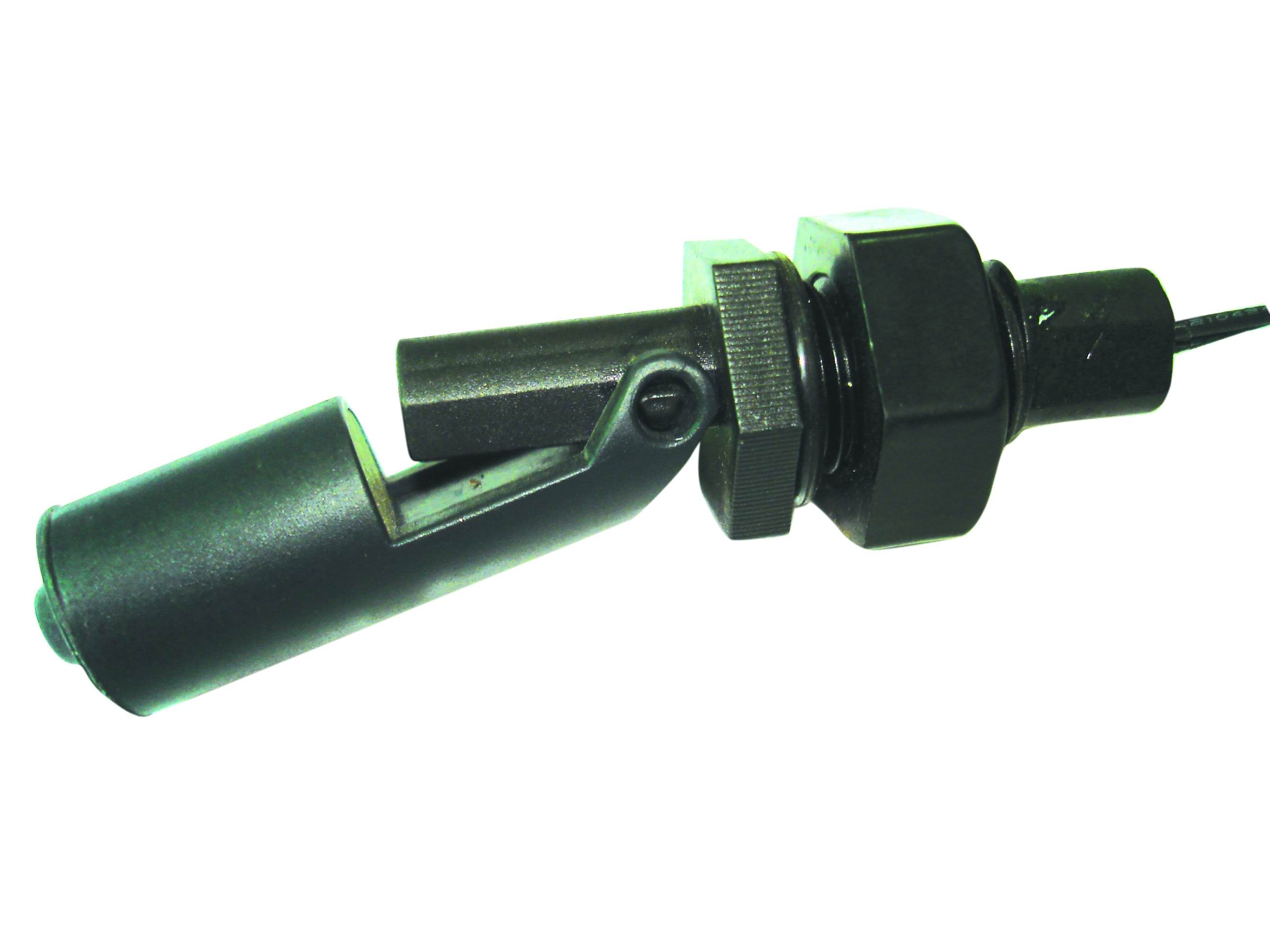

Fuel level sensor use ABS material, resistant to corrosion, high thermostability, And good quality. Two specifications for option.
Working fundamental of MF series Fuel Level sensor Setting one point or more points magnetic spring switch in the sealed metal or Plastic tube, then make it through one or more empty and installed with ring Magnet float balls, fixup the float ball with a fixed ring in the range which Match to the magnetic switch, when the float ball moved, the inner magnet Attracted the magnetic spring switch touch point action to achieve the fuel Level control or indication.
Parameters:
1. Temperature: -20-125oC (option: -20-200oC)
2. Capability: 50W / 250V AC, 200V DC,
3. Max transfer current: 0.5A
4. Max working current: 1A
5. Compression resistance: 1.5 MPa (SUS)
6. Weight: 100g
