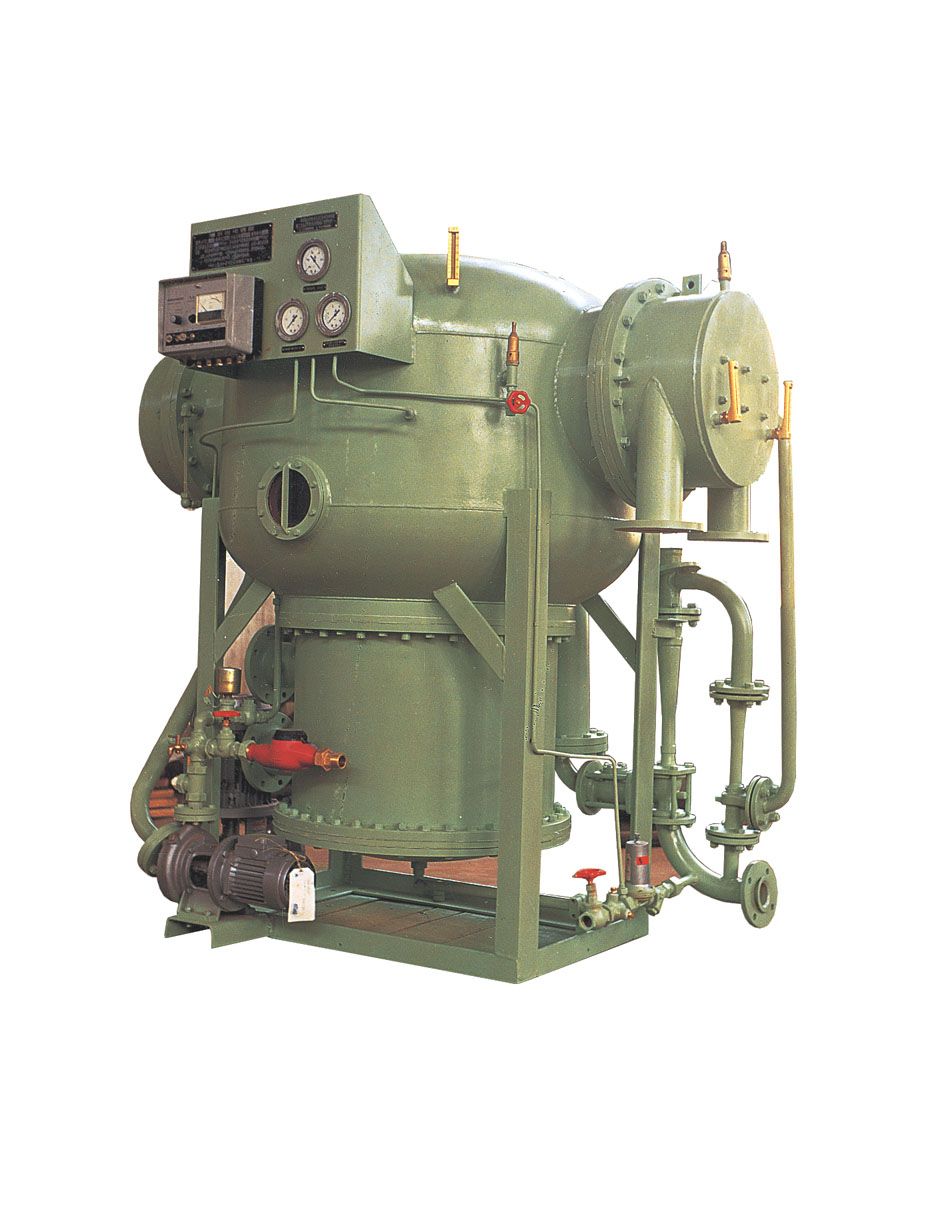

AFGU series fresh water generator is a marine fresh water generator which is tube type by vacuum vapour evaporating. The unit installed on board can produce the drinking water, the feeding water for boiler and water for other purpose. After the unit is used on board, the fresh water generator storage can be reduced and the carrying capacoty of the cargo is highly increased. The equipment is suitable for passenger ships, ocean vessels, fishing vessels, offshore platforms and various diesel vessels.
|
AFGU Model |
E1.5 |
E7 |
E15 |
S15 |
E25 |
S25 |
E36 |
S36 |
S50 |
|
Capacity m 3 /24th |
1.5 1 |
7 5 |
15 12 |
15 12 |
25 20 |
25 20 |
36 30 |
36 30 |
50 40 |
|
Heat consumption |
45 30 |
205 150 |
430 354 |
430 354 |
720 570 |
720 570 |
1030 860 |
1030 860 |
1430 1140 |
|
Heat exchanger |
Flow m 3 /h |
6 2 |
28 12 |
58 31 |
58 31 |
87 48 |
87 48 |
131 78 |
131 78 |
160 90 |
|
Temp. difference |
6.5 13 |
6.5 11 |
6.5 10 |
6.5 10 |
7 10 |
7 10 |
6.5 9.5 |
6.5 9.5 |
7.5 11.5 |
Pressure loss
bar |
0.07 0.01 |
0.19 0.03 |
0.38 0.14 |
0.38 0.14 |
0.39 0.14 |
0.39 0.14 |
0.37 0.15 |
0.37 0.15 |
0.45 0.15 |
|
Condenser |
Flow m 3 /h |
4 |
16 |
35 |
35 |
44 |
44 |
77 |
77 |
100 |
|
Temp. difference |
9 6 |
10.5 7.5 |
10 8 |
10 8 |
13.5 10 |
13.5 10 |
11 6 |
11 6 |
12 9.5 |
Pressure loss
bar |
0.29 |
0.39 |
0.32 |
0.32 |
0.35 |
0.35 |
0.28 |
0.28 |
0.31 |
CSSC Nanjing Luzhou Machine Co., Ltd., which is one of the world's leading manufacturers of disc centrifuges, decanters, separation systems and marine equipment. We focus on food production, environmental protection, energy recycling, chemistry and marine. Our products are spread to over 50 countries, including U. S. A, Canada, Australia, Russia, England, Sweden, Norway, Argentina, Singapore, Brazil, Thailand, Vietnam, Malaysia and so on.
CSSC LUZHOU is a subsidiary of China State Shipbuilding Corporation (CSSC). It covers an area of 650000m2, there are 2300 staff and employee in our company, 281 of them are technicians and engineers. It has obtained the approvals and certifications of both ISO9001: 2008 quality control system and the military product quality control system.
Since1958, we have been building separators used for separating liquids and liquid mixtures. For over 55 years, we have gained considerable experience in all separation areas. We are committed to provide global solutions to improve the quality of human life.
We are expecting sincerely to enlarge our cooperation with companies, including Agents, Trading Companies and Engineering companies. We will do our best to provide our customers with satisfactory services.
Our main products including:
---Disc centrifuge
---Decanter
---Separation system
---Marine products: Steering gear, Maine crane, Winch & Windlass, Life saving equipments, Environment protection equipments
