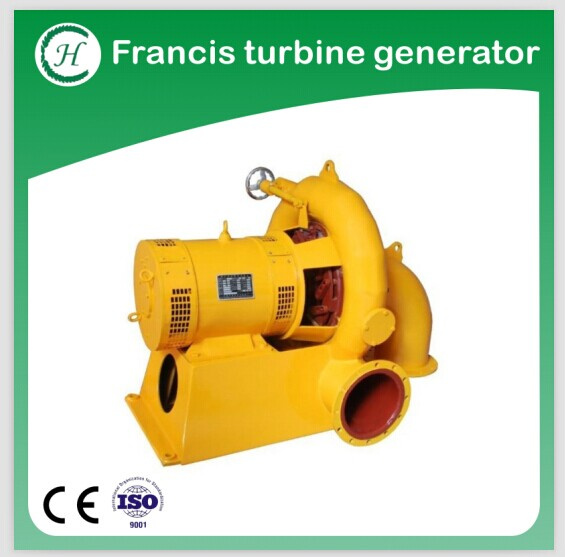

Francis water turbine
Principle: Introduce water from outside of the turbine and the force introduced into the wheel rotates the turbine. The water introduced inside falls down from the hub. Electricity is taken out from the generator fixed on the water turbine rotating fast
Feature:
1) Francis turbine is one of the most widely used turbines.
2) It has a compact structure, reliable operation and high efficiency, and can be used at different ranges of water flow. Large-sized Francis turbines are commonly used at hydraulic head range of 20-700m.
|
Power(KW) |
Water head(m) |
Flow rate(cbm/s) |
Rotary speed(rpm) |
Nozzle diameter(mm) |
|
5KW |
14 |
0.06 |
1000 |
300 |
|
10KW |
16 |
0.09 |
1000 |
400 |
|
15KW |
9 |
0.24 |
1000 |
350.-400 |
|
20KW |
20 |
0.14 |
1000 |
300-400 |
|
30KW |
25 |
0.16 |
1000 |
300-400 |
|
40KW |
12 |
0.4 |
1000 |
500 |
|
50KW |
16 |
0.395 |
1000 |
500 |
|
75W |
38 |
0.26 |
1000 |
40 |
|
100KW |
21 |
0.62 |
1000 |
500 |
