Home Generator Products Francis, Kaplan, Pelton, Tubular Hydro (Water) Turbine Generator Unit (HLA550-WJ-180, SFW200--8/1430)

Francis, Kaplan, Pelton, Tubular Hydro (Water) Turbine Generator Unit (HLA550-WJ-180, SFW200--8/1430)

Francis, Kaplan, Pelton, Tubular Hydro (Water) Turbine Generator Unit (HLA550-WJ-180, SFW200--8/1430)
Price: US $ 20000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T
100KW-50MW Francis, Pelton, Kaplan, Tubular, Turgo (cross flow) Turbine Generator maker, Water to Wire solution, include governor, MIV, Transformer, Excitation, Synchronization & Protection Control Panel, LV, HV Switchgear upto Public Grid Connection.ISO, CE certified. English speaking technology background salesteam support & quotation in early project stage, abroad installation experience.

100KW-50MW hydro turbine generator manufactuer, 2m~400m Water Head, 0.2m3/s~20m3/s discharge, Francis, Pelton, Kaplan, Turgo, Tubular Type Turbine and Sychronous Generator, Mini Hydro Turbine Generator Unit and Complet Control System for Hydropower Plant, Water to Wire Custom-tailored Solution for Each Project

Kaplan (Propeller) Turbine Generator Unit
Kaplan turbine is suitable for low head power plant of 20 to 30 meter head. By the structure, it can be categorized into fix bladed Kaplan and double regulated Kaplan. Fix blade Kaplan apply to middle and small capacity power plant with small water head and discharge variation. Double regulated Kaplan is suitable for big and medium capacity power plant with bigger water head and load variation.

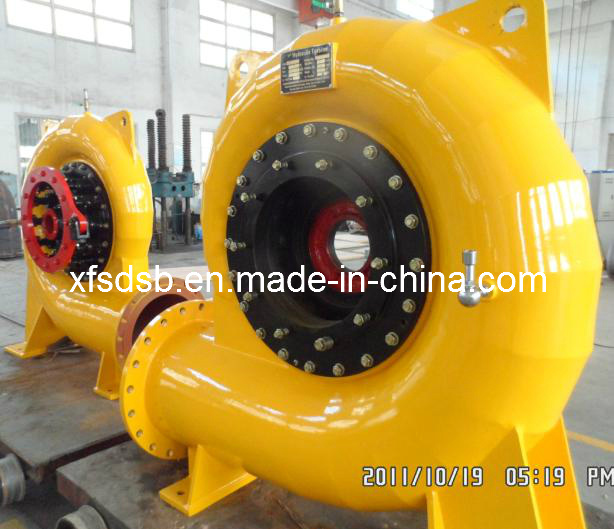

Francis Turbine Generator Unit
Francis turbine is suitable for middle and high water head, from 15 meter to 300 meters. The merits of this turbine include good operation stability, impacted structure, and relatively higher average efficiency. Vertical and horizontal shaft arrangements are both available. It is one of the most widely used turbines.
Tubular Turbine Generator Unit
Tubular Turbine is suitable for low head, large flow power plant in plain, mountain area and beaches with high economical return. This type of turbine has big discharge capacity and a wider high efficiency zone. It requires minimum excavation to save 10% to 20% investment.

Pelton Turbine Generator Unit

Pelton turbine is suitable for 100 to 1000 meter head. The water from the penstocks forms a water jet impact on the turbine runner bucket to operate. Pelton turbine has impact structure, stable operation and is easy to operate. It is most suitable for power plant with high water head, small flow.

Turgo Turbine Generator Unit

Turgo turbine is one of the impulse types of turbine. It is suitable for 20 to 300meter head. The jet center from the nozzle has a 22.5 degree angle with the runner rotation plane. Merits of Turgo turbine include relatively bigger discharge capability, even efficiency curve, simple structure, reliable operation, easy maintenance, and low cost, etc.
In order to get fittest proposal, please provide Project data:

For turbine
1. Water Head:? M
2. Flow:? M3/s

For generator
1. Frequency: 50/60 Hz
2. Voltage: 400V/6.3KV/10.5KV
3. Grid Voltage: 11KV/33KV
Prod Model: HLA550-WJ-180, SFW200--8/1430
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Hydro Turbine: Water Turbine
Hydraulic Turbine: Turbine Generator
HUNAN XUEFENG MECHANICAL AND ELECTRICAL EQUIPMENT MANUFACTURE Co., Ltd
A profesional hydro turbine generator unit manufacturer and auxiliary control equipment supplier, provider one stop, custom tailored solution for 100KW to 50MW mini hydropower plant.
Found in 1957, developed more than 50 year history producing hydraulic turbine generator units.
China National Water Resource and Hydro Power Ministry (CNWRHM) designated production factory of hydraulic turbine generator manufacturer.
Located in new industry area of Dongkou county, provincial industry park of Hunan, Easy transportation access to G60 Hu Kun Highway.
New moden production facilite, 48000 m2 workshop, total 86000 m2 factory.

Work team consists of over 620 workers, including 4 professor level senior engineers, 15 senior engineers, over 60 technicians with intermediate title and technician with long time experience in hydropower equipments manufacture, installation and commission.

One of the largest professional hydro turbine generator equipment manufacturers in Hunan province, with leading capacity in design, production, test and installation commission.

Equipped with over 20 professional numerical controlled processing equipments and over 200 mechanical machining, heat treatment, assembly, test and inspection equipments.Our company can produce Francis, Kaplan, Pelton, Turgo and Tubular turbine generator with unit capacity under 50MW, and 4 meter runner diameter.

Our company had been rated as "Credible Contract Abiding Company" for continuous years."Xuefeng" brand is honored as provincial "Famous Brand" and our products are credited as "Brand Product".Our company is certificated by ISO9001-2008 quality management system and CE of European Union.
Our company is a member company with long time technical cooperation and research with China Institute of Water Resource and Hydropower Research and Harbin Electric Group, etc.
Our company has independent import and export operation right.Our products are widely sold through out the country and exported to Albania, Democratic Republic Congo, Chile, Kazakhstan, Mongolia, North Korea, Philippine, India, Burma, Vietnam, Italy, Australia and Lithuania etc.With good comments from the customers.

Basit project parameter required, upon placing order:
1.Net Water Head (m)
2.Unit Discharge (m³/s)
3.Total Discharge (m³/s)
4.Number of Unit
5.Generator Voltage (V)
6.Generator Frequency (V)
7.Grid Voltage
8.Scope of Supply.
