Brief Technical Parameters index
1. ) Nitrogen flow: 1-3000Nm3/h.
2. ) Nitrogen purity: 97-99.9995%.
3. ) Nitrogen pressure: 0.05-1.0 Mpa. (if need higher pressure, only to add the booster. )
4. ) Dew point: From -60 to -45 degree celsius.
Brief Introduction for PSA Nitrogen Generator Principles
When the process adopts lifting air, oxygen and nitrogen have different diffusion rate and adsorptive capacity to separate oxygen from nitrogen on carbon molecular sieve(CMS). When air is compressed to 0.8MPa, air source enters in pressure-swing adsorption tower for separation after being purified through dry and oil-water separation process (filter). Oxygen molecules are diffused and adsorbed in carbon molecular sieve under pressure. Non-adsorbed nitrogen is discharged from outlet of adsorption tower. Oxygen is desorbed, discharged and purged in adsorption tower under depressurization. Moreover, adsorbent can be recycled.
Properties:

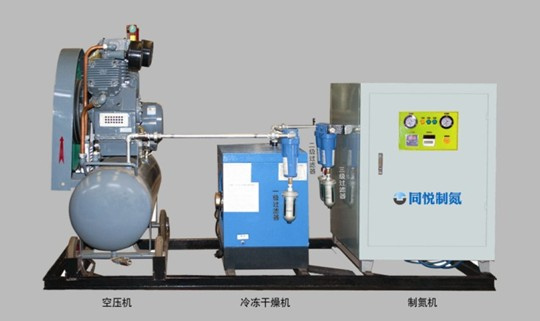

Food preservatives nitrogen making machine is special for food packaging, fruit and vegetable gas-conditioning storage industries, the design gives the needs of small-scale TY series nitrogen making machine, this equipment has reliable operation, boot in a fast, convenient and quick several degrees characteristics such as nitrogen, still have equipment compact structure, cover an area of an area small, convenient to move, produce gas to fast, energy consumption is small, lower cost, high automation, operations and maintenance easy or special foundation, etc. Is the gas separation technology are more mature, more stable a technical method.
Working principle: Basically is AB two molecular with carbon adsorption tower and control system composition, when compressed air through A tower, oxygen are carbon molecular sieve adsorption, nitrogen through and that outflow; When A molecular sieve adsorption saturation of the tower will automatically switch to B tower above of adsorption process and also to regenerate A tower. The so-called regeneration gas inside the adsorption tower is to exclude thus rapid fall to atmospheric pressure, such as molecular sieve adsorption of oxygen release from the process of adsorption tower. A tower, a tower in nitrogen adsorption off by the controller with renewable emptying, control valve movements, reach two towers producing gas alternately.
Jiangyin Tongyue Machinery Equipment Co., Ltd is located in the top 100 county-level economic, China most economic vitality charm city, national harmonious city, a national chemical coatings, printing ink machines R&D, finishing set base - jiangyin city, jiangsu. Backed by the Yangtze river; In accordance with the Beijing-Shanghai expressway, near Shanghai-nanjing expressway jiangyin section, jinghu railway changzhou station; Lateral adjacent shenzhen airlines wuxi bosoar put airport, changzhou bull-running airport, from home and abroad friends from various circles to enterprise investigation, making friends give very convenient traffic position.
The company specialized production (PSA) carbon nitrogen making machine, molecular sieve nitrogen purification devices, widely used in food, medicine, chemical industry, chemical fiber, metallurgy heat treatment, electronic and etc, equipment with compact structure, high automation, stable performance, low energy consumption, low noise, no pollution, etc.
Innovation and honesty is the company eternal rules
